ATUM-6/2-2-SP

Unknown

TE Connectivity Raychem Cable Protection

HEATSHRINK DUAL WALL 6MM 1=1M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TE Raychem Heat Shrink Shelf Life

ATUM-6/2-2-SP

Unknown

TE Connectivity Raychem Cable Protection

HEATSHRINK DUAL WALL 6MM 1=1M

Deep-Dive with AI

DocumentsDatasheet TE Raychem Heat Shrink Shelf Life

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATUM-6/2-2-SP

Color	Red
Features	Flame Retardant, Fluid Resistant, Adhesive Lined
Inner Diameter - Recovered	0.079 in
Inner Diameter - Recovered	2.01 mm
Inner Diameter - Supplied [diameter]	0.236 in
Inner Diameter - Supplied [diameter]	5.99 mm
Length [x]	1 m
Length [x]	3.28 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.99 mm
Recovered Wall Thickness	0.039 in
Shelf Life	60 Months
Shrink Temperature	80 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Semi-Flexible, Tubing

RAYCHEM ATUM Series

Part	Length [x]	Length [x]	Inner Diameter - Recovered	Inner Diameter - Recovered	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Color	Shrinkage Ratio	Shelf Life	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Recovered Wall Thickness	Recovered Wall Thickness	Features	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Spool Size	Spool Size	Length	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Length	Length
TE Connectivity Raychem Cable Protection ATUM-24/6-0-STK-CS6877	1.22 m	4 ft	5.99 mm	0.236 in	-55 °C	110 °C	80 °C	24 mm	0.945 "	Polyolefin (PO) Irradiated	Black	4 to 1	60 Months	35 °C	0 °C	0.088 in	2.25 mm	Adhesive Lined Flame Retardant Fluid Resistant	Semi-Flexible Tubing
TE Connectivity Raychem Cable Protection ATUM-3/1-0-SP					-55 °C	110 °C	80 °C	3 mm	0.118 in	Polyolefin	Black		60 Months	35 °C	0 °C	0.039 in	0.99 mm	Fluid Resistant	Semi-Flexible Tubing	0.039 in	0.99 mm	492.1 '	150 m	Enter Number of Meters in Order Quantity	1	3
TE Connectivity Raychem Cable Protection ATUM-19/6-0-SP			5.99 mm	0.236 in	-55 °C	110 °C	80 °C			Polyolefin	Black		60 Months	35 °C	0 °C	0.088 in	2.25 mm	Fluid Resistant	Semi-Flexible Tubing						1	3	150 m	492.1 ft
TE Connectivity Raychem Cable Protection NB09166001
TE Connectivity Raychem Cable Protection ATUM-6/2-2-SP	1 m	3.28 ft	2.01 mm	0.079 in	-55 °C	110 °C	80 °C	5.99 mm	0.236 in	Polyolefin (PO) Irradiated	Red		60 Months	35 °C	0 °C	0.039 in	0.99 mm	Adhesive Lined Flame Retardant Fluid Resistant	Semi-Flexible Tubing						1	3
TE Connectivity Raychem Cable Protection ATUM-3/1-9-SP
TE Connectivity Raychem Cable Protection ATUM-19/6-X-SP	1 m	3.28 ft	5.99 mm	0.236 in	-55 °C	110 °C	80 °C	19 mm	0.748 in	Polyolefin (PO) Irradiated	Clear		60 Months	35 °C	0 °C	0.088 in	2.25 mm	Adhesive Lined Fluid Resistant	Semi-Flexible Tubing						1	3
TE Connectivity Raychem Cable Protection NB09206001
TE Connectivity Raychem Cable Protection ATUM-24/6-0-SP-CS6877			5.99 mm	0.236 in	-55 °C	110 °C	80 °C	24 mm	0.945 "	Polyolefin (PO) Irradiated	Black	4 to 1	60 Months	35 °C	0 °C	0.088 in	2.25 mm	Adhesive Lined Flame Retardant	Semi-Flexible Tubing
TE Connectivity Raychem Cable Protection ATUM-12/4-0-SP					-55 °C	110 °C	80 °C	11.99 mm	0.472 in	Polyolefin (PO) Irradiated	Black		60 Months	35 °C	0 °C	0.07 "	1.78 mm	Adhesive Lined Flame Retardant Fluid Resistant	Semi-Flexible Tubing	0.157 in	3.99 mm	656.2 '	200 m	Enter Number of Meters in Order Quantity	1	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.52
		5	$ 16.76
		10	$ 13.23
		25	$ 12.35
		50	$ 11.73
		100	$ 11.47

Description

General part information

RAYCHEM ATUM Series

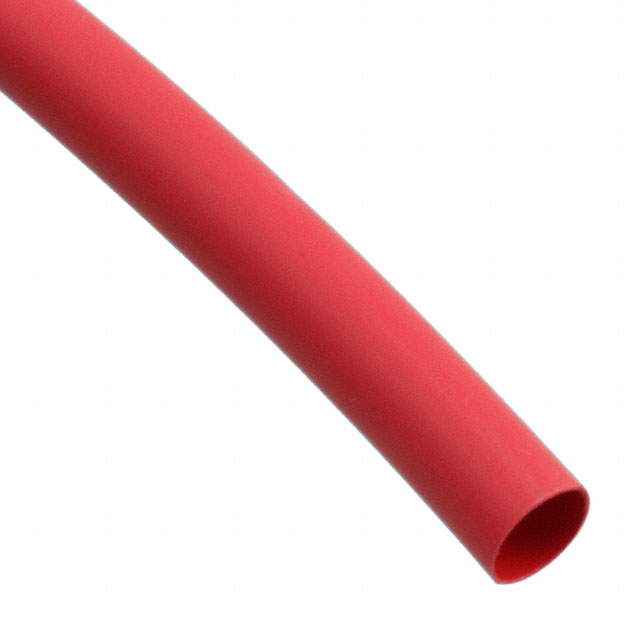

Heat Shrink Tubing, Semi-Flexible 0.236" (5.99mm) 3 to 1 Red 3.28' (1.00m)

Documents

Technical documentation and resources

Datasheet

TE Raychem Heat Shrink Shelf Life

Datasheet
