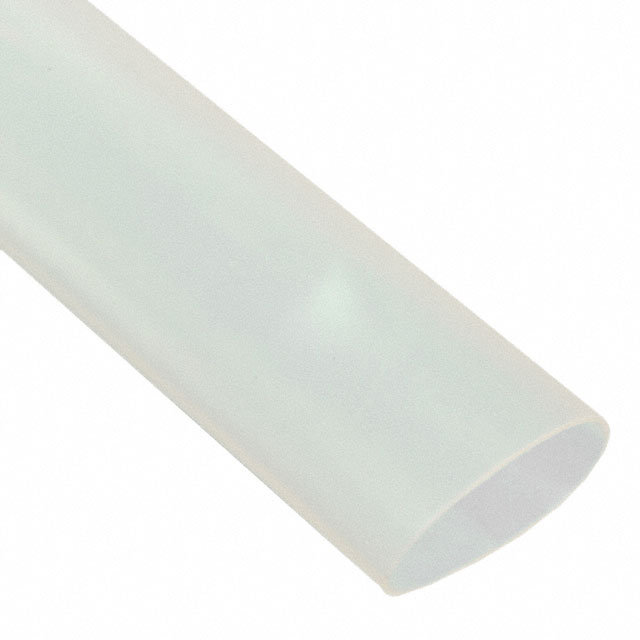

ATUM-19/6-X-SP
ActiveTE Connectivity Raychem Cable Protection
HEATSHRINK DUAL WALL 19MM 1=1M
Deep-Dive with AI
Search across all available documentation for this part.
ATUM-19/6-X-SP
ActiveTE Connectivity Raychem Cable Protection
HEATSHRINK DUAL WALL 19MM 1=1M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATUM-19/6-X-SP |
|---|---|
| Color | Clear |
| Features | Adhesive Lined, Fluid Resistant |
| Inner Diameter - Recovered | 5.99 mm |
| Inner Diameter - Recovered | 0.236 in |
| Inner Diameter - Supplied [diameter] | 0.748 in |
| Inner Diameter - Supplied [diameter] | 19 mm |
| Length [x] | 1 m |
| Length [x] | 3.28 ft |
| Material | Polyolefin (PO), Irradiated |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.088 in |
| Recovered Wall Thickness | 2.25 mm |
| Shelf Life | 60 Months |
| Shrink Temperature | 80 °C |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Storage/Refrigeration Temperature [Max] | 35 °C |
| Storage/Refrigeration Temperature [Min] | 0 °C |
| Type | Semi-Flexible, Tubing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.33 | |
| 5 | $ 14.78 | |||
| 10 | $ 11.67 | |||
| 25 | $ 10.89 | |||
| 50 | $ 10.34 | |||
| 100 | $ 10.11 | |||
Description
General part information
RAYCHEM ATUM Series
Heat Shrink Tubing, Semi-Flexible 0.748" (19.00mm) 3 to 1 Clear 3.28' (1.00m)
