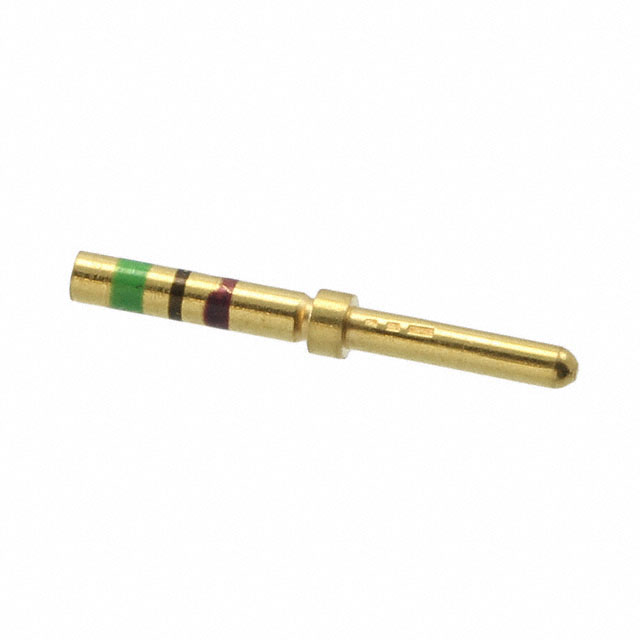

M39029/1-507
ActiveTE Connectivity Raychem Cable Protection
CONTACT PIN 20-24AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
M39029/1-507
ActiveTE Connectivity Raychem Cable Protection
CONTACT PIN 20-24AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/1-507 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Size | 22D |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Grade | Military |
| Qualification | MIL-C-39029 |
| Type | Power, Machined |
| Wire Gauge or Range - AWG [Max] | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.50 | |
| 10 | $ 2.27 | |||
| 25 | $ 2.15 | |||
| 50 | $ 2.10 | |||
| 100 | $ 2.00 | |||
| 250 | $ 1.76 | |||
Description
General part information
M39029 Series
Pin Contact 20-24 AWG Size 22D Crimp Gold
