M39029/76-426

Active

TE Connectivity Raychem Cable Protection

CONTACT PIN SZ 16 CRIMP GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDeutsch QPL Contacts Guide

M39029/76-426

Active

TE Connectivity Raychem Cable Protection

CONTACT PIN SZ 16 CRIMP GOLD

Deep-Dive with AI

DocumentsDeutsch QPL Contacts Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M39029/76-426

Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Size	16
Contact Termination	Crimp
Contact Type	Socket Center, Coax Pin
Grade	Military
Qualification	MIL-C-39029
Type	Coaxial

M39029 Series

Part	Contact Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Contact Size	Type	Grade	Qualification	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Size
TE Connectivity Raychem Cable Protection M39029/57-357	Copper Alloy	24 AWG	20 AWG	Gold	Socket	50 µin	1.27 µm	Crimp	20	Machined Signal	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/76-426	Copper Alloy			Gold	Coax Pin Socket Center	50 µin	1.27 µm	Crimp	16	Coaxial	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/1-101	Copper Alloy	20 AWG	16 AWG	Gold	Pin	50 µin	1.27 µm	Crimp	16	Power Machined	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/31-240	Copper Alloy	24 AWG	20 AWG	Gold	Pin	50 µin	1.27 µm	Crimp	20	Power Machined	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/12-148				Gold				Crimp		Signal	Military	MIL-C-39029	Socket	22 AWG	26 AWG
TE Connectivity Raychem Cable Protection M39029/5-118	Copper Alloy	14 AWG	12 AWG	Gold	Socket	50 µin	1.27 µm	Crimp	12	Power Machined	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/106-616	Copper Alloy	20 AWG	16 AWG	Gold	Socket	50 µin	1.27 µm	Crimp	16	Machined Signal	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/1-507	Copper Alloy	24 AWG	20 AWG	Gold	Pin	50 µin	1.27 µm	Crimp		Power Machined	Military	MIL-C-39029				22D
TE Connectivity Raychem Cable Protection M39029/91-530	Copper Alloy			Gold	Socket	50 µin	1.27 µm	Crimp	8	Twinax Concentric	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/57-359	Copper Alloy	14 AWG	12 AWG	Gold	Socket	50 µin	1.27 µm	Crimp	12	Machined Signal	Military	MIL-C-39029

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.34
		10	$ 19.56
		25	$ 18.72
		50	$ 18.11
		100	$ 17.51
		250	$ 17.25

Description

General part information

M39029 Series

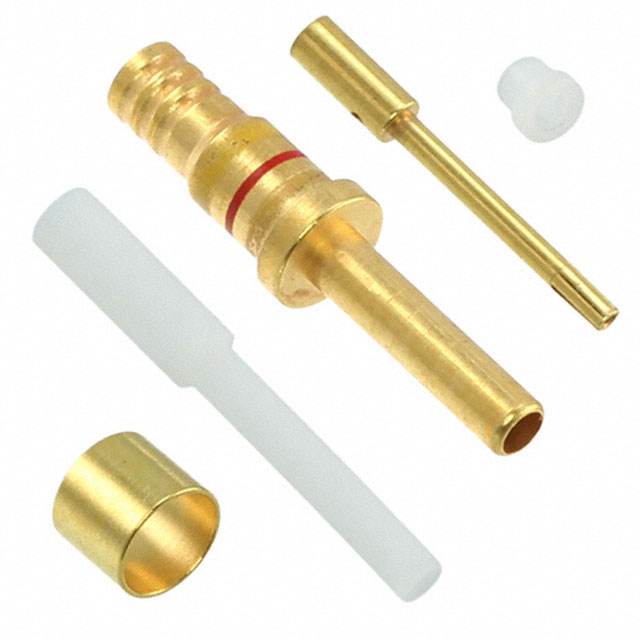

Coax Pin, Socket Center Contact Size 16 Crimp Gold

Documents

Technical documentation and resources

Deutsch QPL Contacts Guide

Datasheet
