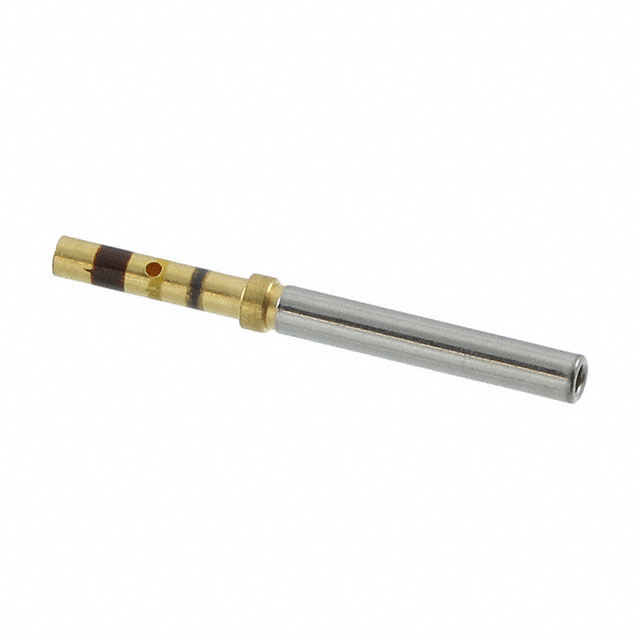

M39029/12-148

Active

TE Connectivity Raychem Cable Protection

CONTACT SCKT SGNL 22-26AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

M39029/12-148

Active

TE Connectivity Raychem Cable Protection

CONTACT SCKT SGNL 22-26AWG GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M39029/12-148

Contact Finish	Gold
Contact Termination	Crimp
Grade	Military
Pin or Socket	Socket
Qualification	MIL-C-39029
Type	Signal
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

M39029 Series

Part	Contact Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Contact Size	Type	Grade	Qualification	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Size
TE Connectivity Raychem Cable Protection M39029/57-357	Copper Alloy	24 AWG	20 AWG	Gold	Socket	50 µin	1.27 µm	Crimp	20	Machined Signal	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/76-426	Copper Alloy			Gold	Coax Pin Socket Center	50 µin	1.27 µm	Crimp	16	Coaxial	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/1-101	Copper Alloy	20 AWG	16 AWG	Gold	Pin	50 µin	1.27 µm	Crimp	16	Power Machined	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/31-240	Copper Alloy	24 AWG	20 AWG	Gold	Pin	50 µin	1.27 µm	Crimp	20	Power Machined	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/12-148				Gold				Crimp		Signal	Military	MIL-C-39029	Socket	22 AWG	26 AWG
TE Connectivity Raychem Cable Protection M39029/5-118	Copper Alloy	14 AWG	12 AWG	Gold	Socket	50 µin	1.27 µm	Crimp	12	Power Machined	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/106-616	Copper Alloy	20 AWG	16 AWG	Gold	Socket	50 µin	1.27 µm	Crimp	16	Machined Signal	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/1-507	Copper Alloy	24 AWG	20 AWG	Gold	Pin	50 µin	1.27 µm	Crimp		Power Machined	Military	MIL-C-39029				22D
TE Connectivity Raychem Cable Protection M39029/91-530	Copper Alloy			Gold	Socket	50 µin	1.27 µm	Crimp	8	Twinax Concentric	Military	MIL-C-39029
TE Connectivity Raychem Cable Protection M39029/57-359	Copper Alloy	14 AWG	12 AWG	Gold	Socket	50 µin	1.27 µm	Crimp	12	Machined Signal	Military	MIL-C-39029

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.76
		10	$ 3.29
		25	$ 3.21
		50	$ 3.14
		100	$ 3.04

Description

General part information

M39029 Series

Contact Gold Signal Socket 22-26 AWG Crimp

Documents

Technical documentation and resources

No documents available
