APF19-19-10CB

Active

CTS Thermal Management Products

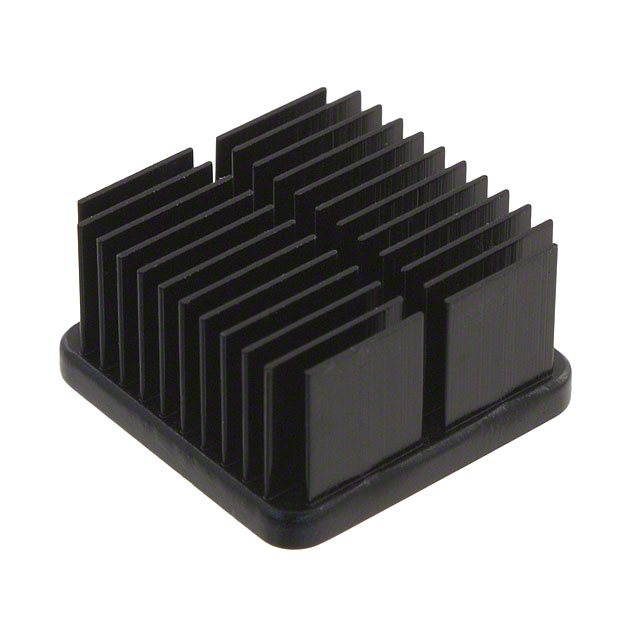

HEATSINK LOW-PROFILE FORGED

Search across all available documentation for this part.

Active

CTS Thermal Management Products

HEATSINK LOW-PROFILE FORGED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	APF19-19-10CB	APF19 Series

Attachment Method	Thermal Tape, Adhesive (Not Included)	Thermal Tape, Adhesive (Included), Thermal Tape, Adhesive (Not Included)
Fin Height	-	0.25 - 0.5 in
Fin Height [z]	9.4 mm	9.4 mm
Fin Height [z]	0.37 "	0.37 - 12.7 mm
Length	0.748 in	0.748 in
Length	19 mm	19 mm
Material	Aluminum	Aluminum
Material Finish	Black Anodized	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Square, Fins	Square, Fins
Shelf Life	-	24 Months
Thermal Resistance @ Forced Air Flow	5.3 °C/W, 200 LFM	4 - 200 LFM
Type	Top Mount	Top Mount
Width [y]	0.748 in	0.748 in
Width [y]	19 mm	19 mm

HEATSINK FORGED W/ADHESIVE TAPE

Part	Material	Type	Fin Height [z]	Fin Height [z]	Width [y]	Width [y]	Package Cooled	Shelf Life	Length	Length	Shape	Thermal Resistance @ Forced Air Flow	Material Finish	Attachment Method	Fin Height [z]
CTS Thermal Management Products APF19-19-13CB/A01	Aluminum	Top Mount	12.7 mm	0.5 in	0.748 in	19 mm	ASIC, BGA, CPU, LGA	24 Months	0.748 in	19 mm	Fins, Square	4 °C/W, 200 LFM	Black Anodized	Thermal Tape, Adhesive (Included)
CTS Thermal Management Products APF19-19-10CB/A01	Aluminum	Top Mount	0.37 "		0.748 in	19 mm	ASIC, BGA, CPU, LGA	24 Months	0.748 in	19 mm	Fins, Square	5.3 °C/W, 200 LFM	Black Anodized	Thermal Tape, Adhesive (Included)	9.4 mm
CTS Thermal Management Products APF19-19-06CB/A01	Aluminum	Top Mount	6.35 mm	0.25 in	0.748 in	19 mm	ASIC, BGA, CPU, LGA	24 Months	0.748 in	19 mm	Fins, Square	7.1 °C/W, 200 LFM	Black Anodized	Thermal Tape, Adhesive (Included)
CTS Thermal Management Products APF19-19-10CB	Aluminum	Top Mount	0.37 "		0.748 in	19 mm	ASIC, BGA, CPU, LGA		0.748 in	19 mm	Fins, Square	5.3 °C/W, 200 LFM	Black Anodized	Thermal Tape, Adhesive (Not Included)	9.4 mm
CTS Thermal Management Products APF19-19-06CB	Aluminum	Top Mount	6.35 mm	0.25 in	0.748 in	19 mm	ASIC, BGA, CPU, LGA		0.748 in	19 mm	Fins, Square	7.1 °C/W, 200 LFM	Black Anodized	Thermal Tape, Adhesive (Not Included)
CTS Thermal Management Products APF19-19-13CB	Aluminum	Top Mount	12.7 mm	0.5 in	0.748 in	19 mm	ASIC, BGA, CPU, LGA		0.748 in	19 mm	Fins, Square	4 °C/W, 200 LFM	Black Anodized	Thermal Tape, Adhesive (Not Included)
