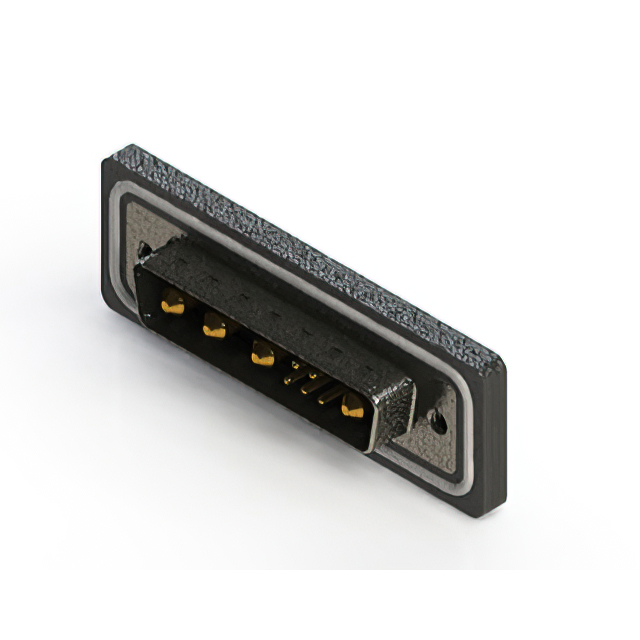

Specification	629W9W4-240-3N2

Color	Black
Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	30A, 5A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Features	Shielded, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (4-40), Housing
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions (Normal)	5
Number of Positions (Power)	4
Number of Positions (Total)	9
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	9W4
Shell Material	Steel
Shell Size	3
Termination	Solder
Voltage Rating	125 V

629W9W Series

Part	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Number of Positions (Power)	Number of Positions (Normal)	Number of Positions (Total)	Connector Type	Mounting Type	Flange Feature	Current Rating Options	Shell Material	Finish	Number of Rows	Material Flammability Rating	Contact Finish	Termination	Shell Size	Connector Layout	Part Code	Contact Type	Connector Style	Features	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Voltage Rating	Color
EDAC Inc. 629W9W4-240-2N3	Dust Tight Waterproof	IP67	0	Flash	Flash	4	5	9	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing Shell (4-40)	20A 5A	Steel	Nickel Plated	2	UL94 V-0	Gold	Solder	3	B DB	9W4	Power Signal	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets Shielded	Copper Alloy	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Black
EDAC Inc. 629W9W4-640-4N3	Dust Tight Waterproof	IP67	30 µin			4	5	9	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing Shell (4-40)	40A 5A	Steel	Nickel Plated	2	UL94 V-0	Gold	Solder	3	B DB	9W4	Power Signal	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets Shielded	Copper Alloy	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Black
EDAC Inc. 629W9W4-240-4NC	Dust Tight Waterproof	IP67	0	Flash	Flash	4	5	9	Male Pins Plug	Right Angle Through Hole	Housing Shell (M3)	40A 5A	Steel	Nickel Plated	2	UL94 V-0	Gold	Solder	3	B DB	9W4	Power Signal	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	Copper Alloy	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Black
EDAC Inc. 629W9W4-140-2NB	Dust Tight Waterproof	IP67	5 µin			4	5	9	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing Shell (M3)	20A 5A	Steel	Nickel Plated	2	UL94 V-0	Gold	Solder	3	B DB	9W4	Power Signal	Combo D-Sub	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Copper Alloy	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Black
EDAC Inc. 629W9W4-140-4N2	Dust Tight Waterproof	IP67	5 µin			4	5	9	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing Shell (4-40)	40A 5A	Steel	Nickel Plated	2	UL94 V-0	Gold	Solder	3	B DB	9W4	Power Signal	Combo D-Sub	Grounding Indents Shielded	Copper Alloy	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Black
EDAC Inc. 629W9W4-140-2NA	Dust Tight Waterproof	IP67	5 µin			4	5	9	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing Shell (M3)	20A 5A	Steel	Nickel Plated	2	UL94 V-0	Gold	Solder	3	B DB	9W4	Power Signal	Combo D-Sub	Grounding Indents Shielded	Copper Alloy	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Black
EDAC Inc. 629W9W4-340-3N3	Dust Tight Waterproof	IP67	15 µin			4	5	9	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing Shell (4-40)	30A 5A	Steel	Nickel Plated	2	UL94 V-0	Gold	Solder	3	B DB	9W4	Power Signal	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets Shielded	Copper Alloy	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Black
EDAC Inc. 629W9W4-240-3N2	Dust Tight Waterproof	IP67	0	Flash	Flash	4	5	9	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing Shell (4-40)	30A 5A	Steel	Nickel Plated	2	UL94 V-0	Gold	Solder	3	B DB	9W4	Power Signal	Combo D-Sub	Grounding Indents Shielded	Copper Alloy	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Black
EDAC Inc. 629W9W4-640-1N4	Dust Tight Waterproof	IP67	30 µin			4	5	9	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing Shell (4-40)	10A 5A	Steel	Nickel Plated	2	UL94 V-0	Gold	Solder	3	B DB	9W4	Power Signal	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	Copper Alloy	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Black
EDAC Inc. 629W9W4-240-4N2	Dust Tight Waterproof	IP67	0	Flash	Flash	4	5	9	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing Shell (4-40)	40A 5A	Steel	Nickel Plated	2	UL94 V-0	Gold	Solder	3	B DB	9W4	Power Signal	Combo D-Sub	Grounding Indents Shielded	Copper Alloy	125 °C	-55 °C	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Black
