629W9W4-240-2N3

Active

EDAC Inc.

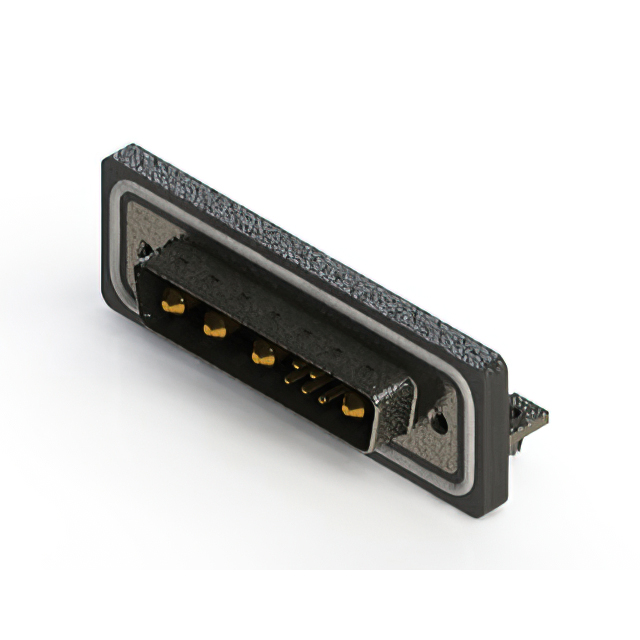

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629W9W4-240-2N3

Active

EDAC Inc.

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629W9W4-240-2N3

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Positions [custom]	4
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 9W4
Termination	Solder
Voltage Rating	125 VDC

629W9W Series

Part	Color	Contact Type	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Features	Termination	Contact Finish Thickness	Dielectric Material	Ingress Protection	Contact Material	Shell Size, Connector Layout	Connector Type	Material Flammability Rating	Mounting Type	Voltage Rating	Number of Rows	Shell Material, Finish	Contact Finish	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 629W9W4-240-2N3	Black	Signal and Power	5 A 20 A	4	5	9	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	Flash	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Copper Alloy	3 (DB B) - 9W4	Male Pins Plug	UL94 V-0	Panel Mount Right Angle Through Hole	125 VDC	2	Nickel Plated Steel	Gold	Combo D-Sub	-55 °C	125 °C	Housing/Shell (4-40)
EDAC Inc. 629W9W4-640-4N3	Black	Signal and Power	5 A 40 A	4	5	9	Board Lock Grounding Indents Mounting Brackets Shielded	Solder		Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Copper Alloy	3 (DB B) - 9W4	Male Pins Plug	UL94 V-0	Panel Mount Right Angle Through Hole	125 VDC	2	Nickel Plated Steel	Gold	Combo D-Sub	-55 °C	125 °C	Housing/Shell (4-40)	0.76 Ám	30 Áin
EDAC Inc. 629W9W4-140-4N2	Black	Signal and Power	5 A 40 A	4	5	9	Grounding Indents Shielded	Solder		Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Copper Alloy	3 (DB B) - 9W4	Male Pins Plug	UL94 V-0	Panel Mount Right Angle Through Hole	125 VDC	2	Nickel Plated Steel	Gold	Combo D-Sub	-55 °C	125 °C	Housing/Shell (4-40)	0.127 µm	5 µin
EDAC Inc. 629W9W4-340-3N3	Black	Signal and Power	5 A 30 A	4	5	9	Board Lock Grounding Indents Mounting Brackets Shielded	Solder		Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Copper Alloy	3 (DB B) - 9W4	Male Pins Plug	UL94 V-0	Panel Mount Right Angle Through Hole	125 VDC	2	Nickel Plated Steel	Gold	Combo D-Sub	-55 °C	125 °C	Housing/Shell (4-40)	0.38 µm	15 µin
EDAC Inc. 629W9W4-240-3N2	Black	Signal and Power	5 A 30 A	4	5	9	Grounding Indents Shielded	Solder	Flash	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Copper Alloy	3 (DB B) - 9W4	Male Pins Plug	UL94 V-0	Panel Mount Right Angle Through Hole	125 VDC	2	Nickel Plated Steel	Gold	Combo D-Sub	-55 °C	125 °C	Housing/Shell (4-40)
EDAC Inc. 629W9W4-640-1N4	Black	Signal and Power		4	5	9	Grounding Indents Mounting Brackets Shielded	Solder		Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Copper Alloy	3 (DB B) - 9W4	Male Pins Plug	UL94 V-0	Panel Mount Right Angle Through Hole	125 VDC	2	Nickel Plated Steel	Gold	Combo D-Sub	-55 °C	125 °C	Housing/Shell (4-40)	0.76 Ám	30 Áin	10A 5A
EDAC Inc. 629W9W4-240-4N2	Black	Signal and Power	5 A 40 A	4	5	9	Grounding Indents Shielded	Solder	Flash	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Copper Alloy	3 (DB B) - 9W4	Male Pins Plug	UL94 V-0	Panel Mount Right Angle Through Hole	125 VDC	2	Nickel Plated Steel	Gold	Combo D-Sub	-55 °C	125 °C	Housing/Shell (4-40)
EDAC Inc. 629W9W4-240-3N4	Black	Signal and Power	5 A 30 A	4	5	9	Grounding Indents Mounting Brackets Shielded	Solder	Flash	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Copper Alloy	3 (DB B) - 9W4	Male Pins Plug	UL94 V-0	Panel Mount Right Angle Through Hole	125 VDC	2	Nickel Plated Steel	Gold	Combo D-Sub	-55 °C	125 °C	Housing/Shell (4-40)
EDAC Inc. 629W9W4-140-4N3	Black	Signal and Power	5 A 40 A	4	5	9	Board Lock Grounding Indents Mounting Brackets Shielded	Solder		Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Copper Alloy	3 (DB B) - 9W4	Male Pins Plug	UL94 V-0	Panel Mount Right Angle Through Hole	125 VDC	2	Nickel Plated Steel	Gold	Combo D-Sub	-55 °C	125 °C	Housing/Shell (4-40)	0.127 µm	5 µin
EDAC Inc. 629W9W4-140-1NA	Black	Signal and Power		4	5	9	Grounding Indents Shielded	Solder		Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Copper Alloy	3 (DB B) - 9W4	Male Pins Plug	UL94 V-0	Panel Mount Right Angle Through Hole	125 VDC	2	Nickel Plated Steel	Gold	Combo D-Sub	-55 °C	125 °C	Housing/Shell (M3)	0.127 µm	5 µin	10A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 16.91

Description

General part information

629W9W Series

9 (5 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
