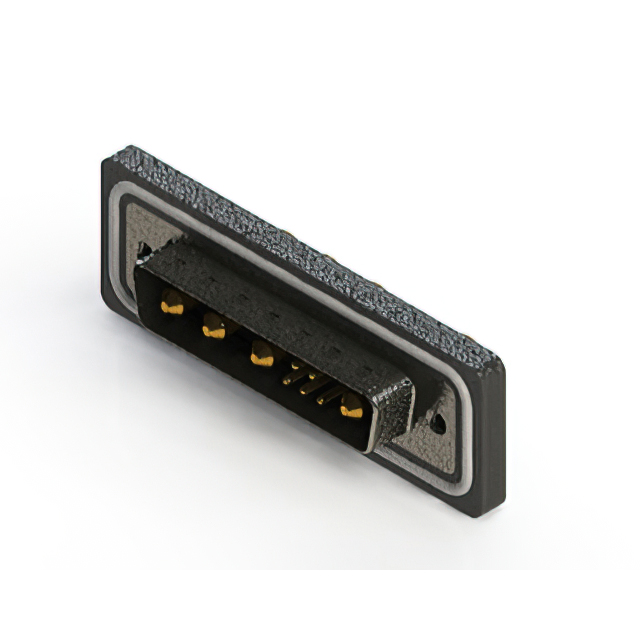

629W9W4-140-4N2
ActiveEDAC Inc.
CONN D-SUB PLUG 9POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629W9W4-140-4N2
ActiveEDAC Inc.
CONN D-SUB PLUG 9POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629W9W4-140-4N2 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.127 µm |
| Contact Finish Thickness | 5 µin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 9 |
| Number of Positions [custom] | 4 |
| Number of Positions [custom] | 5 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629W9W Series
| Part | Color | Contact Type | Current Rating (Amps) | Number of Positions [custom] | Number of Positions [custom] | Number of Positions | Features | Termination | Contact Finish Thickness | Dielectric Material | Ingress Protection | Contact Material | Shell Size, Connector Layout | Connector Type | Material Flammability Rating | Mounting Type | Voltage Rating | Number of Rows | Shell Material, Finish | Contact Finish | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | Signal and Power | 5 A 20 A | 4 | 5 | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Flash | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Copper Alloy | 3 (DB B) - 9W4 | Male Pins Plug | UL94 V-0 | Panel Mount Right Angle Through Hole | 125 VDC | 2 | Nickel Plated Steel | Gold | Combo D-Sub | -55 °C | 125 °C | Housing/Shell (4-40) | |||
EDAC Inc. | Black | Signal and Power | 5 A 40 A | 4 | 5 | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Copper Alloy | 3 (DB B) - 9W4 | Male Pins Plug | UL94 V-0 | Panel Mount Right Angle Through Hole | 125 VDC | 2 | Nickel Plated Steel | Gold | Combo D-Sub | -55 °C | 125 °C | Housing/Shell (4-40) | 0.76 Ám | 30 Áin | ||
EDAC Inc. | Black | Signal and Power | 5 A 40 A | 4 | 5 | 9 | Grounding Indents Shielded | Solder | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Copper Alloy | 3 (DB B) - 9W4 | Male Pins Plug | UL94 V-0 | Panel Mount Right Angle Through Hole | 125 VDC | 2 | Nickel Plated Steel | Gold | Combo D-Sub | -55 °C | 125 °C | Housing/Shell (4-40) | 0.127 µm | 5 µin | ||
EDAC Inc. | Black | Signal and Power | 5 A 30 A | 4 | 5 | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Copper Alloy | 3 (DB B) - 9W4 | Male Pins Plug | UL94 V-0 | Panel Mount Right Angle Through Hole | 125 VDC | 2 | Nickel Plated Steel | Gold | Combo D-Sub | -55 °C | 125 °C | Housing/Shell (4-40) | 0.38 µm | 15 µin | ||
EDAC Inc. | Black | Signal and Power | 5 A 30 A | 4 | 5 | 9 | Grounding Indents Shielded | Solder | Flash | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Copper Alloy | 3 (DB B) - 9W4 | Male Pins Plug | UL94 V-0 | Panel Mount Right Angle Through Hole | 125 VDC | 2 | Nickel Plated Steel | Gold | Combo D-Sub | -55 °C | 125 °C | Housing/Shell (4-40) | |||
EDAC Inc. | Black | Signal and Power | 4 | 5 | 9 | Grounding Indents Mounting Brackets Shielded | Solder | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Copper Alloy | 3 (DB B) - 9W4 | Male Pins Plug | UL94 V-0 | Panel Mount Right Angle Through Hole | 125 VDC | 2 | Nickel Plated Steel | Gold | Combo D-Sub | -55 °C | 125 °C | Housing/Shell (4-40) | 0.76 Ám | 30 Áin | 10A 5A | ||
EDAC Inc. | Black | Signal and Power | 5 A 40 A | 4 | 5 | 9 | Grounding Indents Shielded | Solder | Flash | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Copper Alloy | 3 (DB B) - 9W4 | Male Pins Plug | UL94 V-0 | Panel Mount Right Angle Through Hole | 125 VDC | 2 | Nickel Plated Steel | Gold | Combo D-Sub | -55 °C | 125 °C | Housing/Shell (4-40) | |||
EDAC Inc. | Black | Signal and Power | 5 A 30 A | 4 | 5 | 9 | Grounding Indents Mounting Brackets Shielded | Solder | Flash | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Copper Alloy | 3 (DB B) - 9W4 | Male Pins Plug | UL94 V-0 | Panel Mount Right Angle Through Hole | 125 VDC | 2 | Nickel Plated Steel | Gold | Combo D-Sub | -55 °C | 125 °C | Housing/Shell (4-40) | |||
EDAC Inc. | Black | Signal and Power | 5 A 40 A | 4 | 5 | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Solder | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Copper Alloy | 3 (DB B) - 9W4 | Male Pins Plug | UL94 V-0 | Panel Mount Right Angle Through Hole | 125 VDC | 2 | Nickel Plated Steel | Gold | Combo D-Sub | -55 °C | 125 °C | Housing/Shell (4-40) | 0.127 µm | 5 µin | ||
EDAC Inc. | Black | Signal and Power | 4 | 5 | 9 | Grounding Indents Shielded | Solder | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Copper Alloy | 3 (DB B) - 9W4 | Male Pins Plug | UL94 V-0 | Panel Mount Right Angle Through Hole | 125 VDC | 2 | Nickel Plated Steel | Gold | Combo D-Sub | -55 °C | 125 °C | Housing/Shell (M3) | 0.127 µm | 5 µin | 10A 5A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 19.05 | |
Description
General part information
629W9W Series
9 (5 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
