Technical Specifications
Parameters and characteristics for this part
| Specification | ROX2SG39R |
|---|---|
| Composition | Metal Oxide Film |
| Features | Flame Proof, Safety, Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 2 W |
| Resistance | 39 Ohms |
| Size / Dimension [diameter] | 0.197 " |
| Size / Dimension [diameter] | 5 mm |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [x] | 0.472 in |
| Supplier Device Package | Axial |
| Temperature Coefficient | 350 ppm/°C |
| Tolerance | 2 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 12000 | $ 0.09 | |
Description
General part information
ROX2 Series

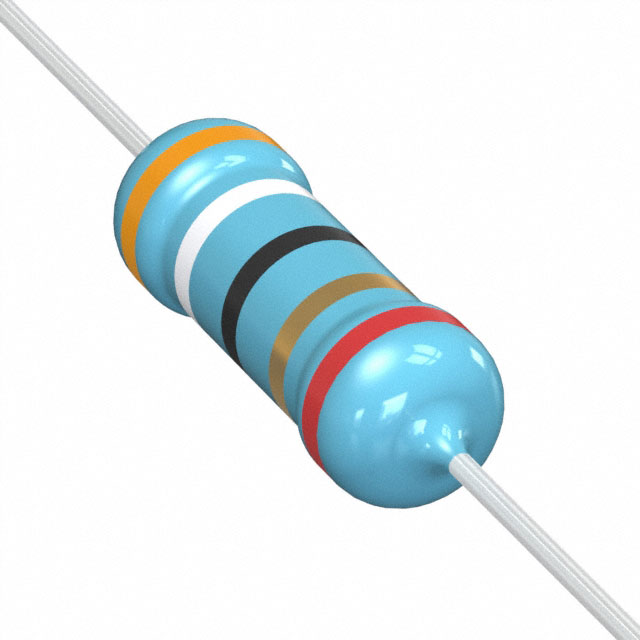

39 Ohms ±2% 2W Through Hole Resistor Axial Flame Proof, Pulse Withstanding, Safety Metal Oxide Film
