Technical Specifications
Parameters and characteristics for this part
| Specification | ROX2SJ5K6 |
|---|---|
| Composition | Metal Oxide Film |
| Features | Flame Proof, Safety, Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 2 W |
| Resistance | 5.6 kOhms |
| Size / Dimension [diameter] | 0.197 " |
| Size / Dimension [diameter] | 5 mm |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [x] | 0.472 in |
| Supplier Device Package | Axial |
| Temperature Coefficient | 350 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.08 | |||
| Tape & Box (TB) | 1000 | $ 0.03 | ||
| 2000 | $ 0.03 | |||
Description
General part information
ROX2 Series

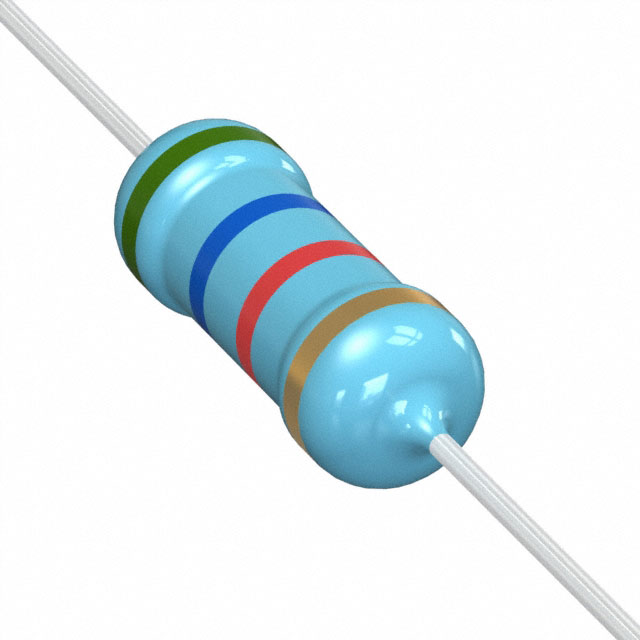

5.6 kOhms ±5% 2W Through Hole Resistor Axial Flame Proof, Pulse Withstanding, Safety Metal Oxide Film
