Technical Specifications
Parameters and characteristics for this part
| Specification | ROX2SJ3K9 |
|---|---|
| Composition | Metal Oxide Film |
| Features | Flame Proof, Safety, Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 2 W |
| Resistance | 3.9 kOhms |
| Size / Dimension [diameter] | 0.197 " |
| Size / Dimension [diameter] | 5 mm |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [x] | 0.472 in |
| Supplier Device Package | Axial |
| Temperature Coefficient | 350 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.31 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.09 | |||
| Tape & Box (TB) | 1000 | $ 0.04 | ||
Description
General part information
ROX2 Series

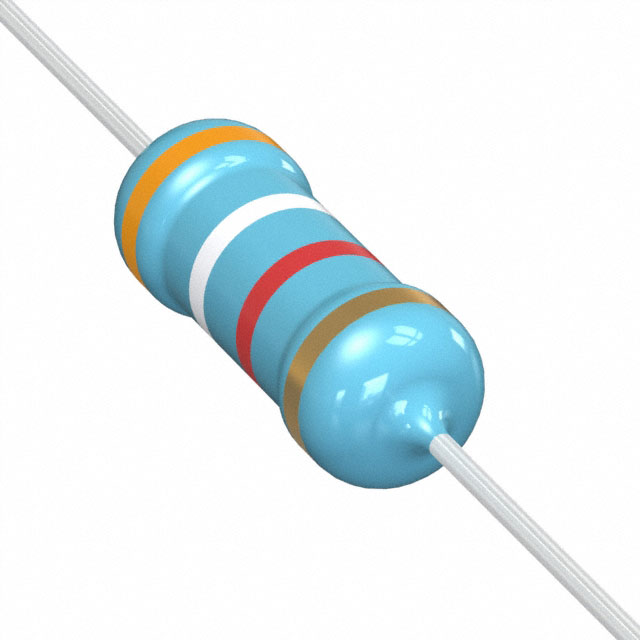

3.9 kOhms ±5% 2W Through Hole Resistor Axial Flame Proof, Pulse Withstanding, Safety Metal Oxide Film
