MGJ6D241505LMC-R7

Active

Murata Power Solutions Inc.

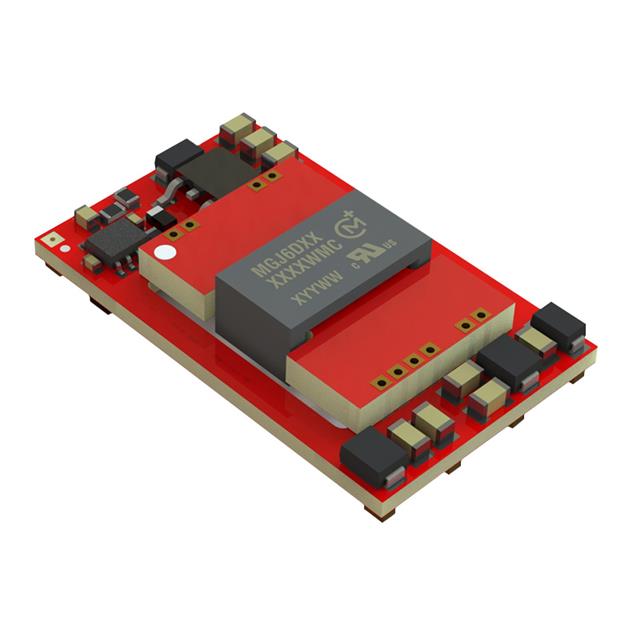

DC-DC CONVERTER, 2 O/P, 4.5W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

MGJ6D241505LMC-R7

Active

Murata Power Solutions Inc.

DC-DC CONVERTER, 2 O/P, 4.5W

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 16.92
		5	$ 16.84
		10	$ 16.72
	Digi-Reel®	1	$ 16.92
		5	$ 16.84
		10	$ 16.72
	Tape & Reel (TR)	25	$ 16.53
		50	$ 16.12
		125	$ 15.31
		250	$ 14.33
		625	$ 13.37
Newark	Each (Supplied on Full Reel)	25	$ 17.39

Description

General part information

MGJ6D24 Series

Isolated Module DC DC Converter 2 Output 15V -5V 300mA, 300mA 18V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Specification	MGJ6D241505LMC-R7	MGJ6D24 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Current - Output (Max)	300 mA	300 mA
Current - Output (Max)	-	125 mA
Current - Output (Max)	-	125 mA
Current - Output (Max)	-	240 mA
Current - Output (Max)	-	240 mA
Efficiency	81 %	81 - 85 %
Features	SCP, UVLO	Remote On/Off, SCP, UVLO
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	105 ░C	105 C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-SMD Module	7-SMD Module, 8-SIP Module, 7-DIP Module
Power (Watts)	6 W	6 W
Size / Dimension [x]	1.57 in	1.16 - 1.81 in
Size / Dimension [x]	40 mm	29.5 - 46 mm
Size / Dimension [y]	27.8 mm	11 - 27.8 mm
Size / Dimension [y]	1.09 in	0.43 - 1.09 in
Size / Dimension [z]	9.4 mm	9.2 - 28.1 mm
Size / Dimension [z]	0.37 in	0.36 - 1.11 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	18 V	18 V
Voltage - Isolation	5.2 kV	5.2 - 10.2 kV
Voltage - Output 1	15 V	15 - 24 V
Voltage - Output 2	-5 V	-10 - 24 V

Part

Mounting Type

Number of Outputs

Package / Case

Features

Applications

Voltage - Input (Min) [Min]

Voltage - Output 2

Efficiency

Size / Dimension [z]

Size / Dimension [y]

Size / Dimension [x]

Size / Dimension [z]

Size / Dimension [x]

Power (Watts)

Operating Temperature [Min]

Operating Temperature [Max]

Current - Output (Max)

Voltage - Output 1

Type

Voltage - Input (Max) [Max]

Voltage - Isolation

Current - Output (Max)

Current - Output (Max) [Max]

Murata Power Solutions Inc.

MGJ6D241505WMC-R13

Surface Mount

7-SMD Module

Remote On/Off

ITE (Commercial)

18 V

-5 V

81.5 %

9.2 mm

27.8 mm

1.09 in

1.81 in

0.36 in

46 mm

6 W

-40 °C

105 C

300 mA

15 V

Isolated Module

36 V

10.2 kV

Murata Power Solutions Inc.

MGJ6D241505SC

Through Hole

8-SIP Module

SCP, UVLO

ITE (Commercial), Medical

18 V

-5 V

28.1 mm

11 mm

0.43 in

1.54 in

1.11 in

39 mm

6 W

-40 °C

105 ░C

300 mA

15 V

Isolated Module

36 V

5.2 kV

Murata Power Solutions Inc.

MGJ6D24H24MC-R13

Surface Mount

7-SMD Module

SCP, UVLO

ITE (Commercial), Medical

18 V

24 V

85 %

14.1 mm

22.6 mm

0.89 in

1.16 in

0.56 "

29.5 mm

6 W

-40 °C

105 ░C

24 V

Isolated Module

36 V

5.2 kV

125 mA

Murata Power Solutions Inc.

MGJ6D241505LMC-R7

Surface Mount

7-SMD Module

SCP, UVLO

ITE (Commercial), Medical

18 V

-5 V

81 %

9.4 mm

27.8 mm

1.09 in

1.57 in

0.37 in

40 mm

6 W

-40 °C

105 ░C

300 mA

15 V

Isolated Module

36 V

5.2 kV

Murata Power Solutions Inc.

MGJ6D241505WMC-R7

Surface Mount

7-SMD Module

Remote On/Off

ITE (Commercial)

18 V

-5 V

81.5 %

9.2 mm

27.8 mm

1.09 in

1.81 in

0.36 in

46 mm

6 W

-40 °C

105 C

300 mA

15 V

Isolated Module

36 V

10.2 kV

Murata Power Solutions Inc.

MGJ6D241505DC

Through Hole

7-DIP Module

SCP, UVLO

ITE (Commercial), Medical

18 V

-5 V

9.8 mm

27.8 mm

1.09 in

1.79 "

0.39 in

45.5 mm

6 W

-40 °C

105 ░C

300 mA

15 V

Isolated Module

36 V

5.2 kV

Murata Power Solutions Inc.

MGJ6D241510DC

Through Hole

7-DIP Module

SCP, UVLO

ITE (Commercial), Medical

18 V

-10 V

9.8 mm

27.8 mm

1.09 in

1.79 "

0.39 in

45.5 mm

6 W

-40 °C

105 ░C

15 V

Isolated Module

36 V

5.2 kV

240 mA

Murata Power Solutions Inc.

MGJ6D242005DC

Through Hole

7-DIP Module

SCP, UVLO

ITE (Commercial), Medical

18 V

-5 V

9.8 mm

27.8 mm

1.09 in

1.79 "

0.39 in

45.5 mm

6 W

-40 °C

105 ░C

20 V

Isolated Module

36 V

5.2 kV

240 mA

Murata Power Solutions Inc.

MGJ6D242005WMC-R7

Surface Mount

7-SMD Module

Remote On/Off

ITE (Commercial)

18 V

-5 V

81.5 %

9.2 mm

27.8 mm

1.09 in

1.81 in

0.36 in

46 mm

6 W

-40 °C

105 C

20 V

Isolated Module

36 V

10.2 kV

240 mA

Murata Power Solutions Inc.

MGJ6D241505LMC-R13

Surface Mount

7-SMD Module

SCP, UVLO

ITE (Commercial), Medical

18 V

-5 V

81 %

9.4 mm

27.8 mm

1.09 in

1.57 in

0.37 in

40 mm

6 W

-40 °C

105 ░C

300 mA

15 V

Isolated Module

36 V

5.2 kV

Part	Mounting Type	Number of Outputs	Package / Case	Features	Applications	Voltage - Input (Min) [Min]	Voltage - Output 2	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Voltage - Output 1	Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Murata Power Solutions Inc. MGJ6D241505WMC-R13	Surface Mount	2	7-SMD Module	Remote On/Off	ITE (Commercial)	18 V	-5 V	81.5 %	9.2 mm	27.8 mm	1.09 in	1.81 in	0.36 in	46 mm	6 W	-40 °C	105 C	300 mA	15 V	Isolated Module	36 V	10.2 kV
Murata Power Solutions Inc. MGJ6D241505SC	Through Hole	2	8-SIP Module	SCP, UVLO	ITE (Commercial), Medical	18 V	-5 V		28.1 mm	11 mm	0.43 in	1.54 in	1.11 in	39 mm	6 W	-40 °C	105 ░C	300 mA	15 V	Isolated Module	36 V	5.2 kV
Murata Power Solutions Inc. MGJ6D24H24MC-R13	Surface Mount	2	7-SMD Module	SCP, UVLO	ITE (Commercial), Medical	18 V	24 V	85 %	14.1 mm	22.6 mm	0.89 in	1.16 in	0.56 "	29.5 mm	6 W	-40 °C	105 ░C		24 V	Isolated Module	36 V	5.2 kV	125 mA	125 mA
Murata Power Solutions Inc. MGJ6D241505LMC-R7	Surface Mount	2	7-SMD Module	SCP, UVLO	ITE (Commercial), Medical	18 V	-5 V	81 %	9.4 mm	27.8 mm	1.09 in	1.57 in	0.37 in	40 mm	6 W	-40 °C	105 ░C	300 mA	15 V	Isolated Module	36 V	5.2 kV
Murata Power Solutions Inc. MGJ6D241505WMC-R7	Surface Mount	2	7-SMD Module	Remote On/Off	ITE (Commercial)	18 V	-5 V	81.5 %	9.2 mm	27.8 mm	1.09 in	1.81 in	0.36 in	46 mm	6 W	-40 °C	105 C	300 mA	15 V	Isolated Module	36 V	10.2 kV
Murata Power Solutions Inc. MGJ6D241505DC	Through Hole	2	7-DIP Module	SCP, UVLO	ITE (Commercial), Medical	18 V	-5 V		9.8 mm	27.8 mm	1.09 in	1.79 "	0.39 in	45.5 mm	6 W	-40 °C	105 ░C	300 mA	15 V	Isolated Module	36 V	5.2 kV
Murata Power Solutions Inc. MGJ6D241510DC	Through Hole	2	7-DIP Module	SCP, UVLO	ITE (Commercial), Medical	18 V	-10 V		9.8 mm	27.8 mm	1.09 in	1.79 "	0.39 in	45.5 mm	6 W	-40 °C	105 ░C		15 V	Isolated Module	36 V	5.2 kV			240 mA	240 mA
Murata Power Solutions Inc. MGJ6D242005DC	Through Hole	2	7-DIP Module	SCP, UVLO	ITE (Commercial), Medical	18 V	-5 V		9.8 mm	27.8 mm	1.09 in	1.79 "	0.39 in	45.5 mm	6 W	-40 °C	105 ░C		20 V	Isolated Module	36 V	5.2 kV			240 mA	240 mA
Murata Power Solutions Inc. MGJ6D242005WMC-R7	Surface Mount	2	7-SMD Module	Remote On/Off	ITE (Commercial)	18 V	-5 V	81.5 %	9.2 mm	27.8 mm	1.09 in	1.81 in	0.36 in	46 mm	6 W	-40 °C	105 C		20 V	Isolated Module	36 V	10.2 kV			240 mA	240 mA
Murata Power Solutions Inc. MGJ6D241505LMC-R13	Surface Mount	2	7-SMD Module	SCP, UVLO	ITE (Commercial), Medical	18 V	-5 V	81 %	9.4 mm	27.8 mm	1.09 in	1.57 in	0.37 in	40 mm	6 W	-40 °C	105 ░C	300 mA	15 V	Isolated Module	36 V	5.2 kV
