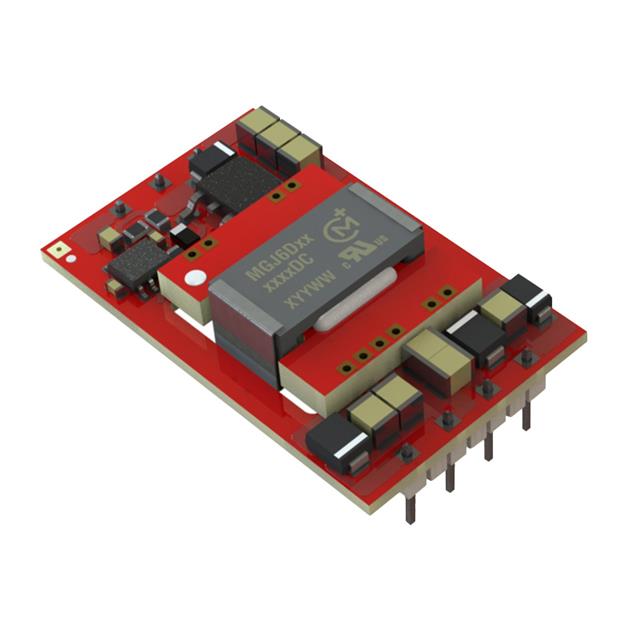

MGJ6D241510DC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, GATE DRIVE, 2:1, 3.6 W, 2 OUTPUT, 15 V, 240 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

MGJ6D241510DC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, GATE DRIVE, 2:1, 3.6 W, 2 OUTPUT, 15 V, 240 MA

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 16.92
		5	$ 16.84
		10	$ 16.72
		25	$ 16.53
		50	$ 16.12
		100	$ 15.31
		250	$ 14.33
		500	$ 13.37
Newark	Each	25	$ 16.20
		50	$ 15.80
		100	$ 15.00
		250	$ 14.00

Description

General part information

MGJ6D24 Series

The MGJ6D241510DC from Murata Power Solutions is a MGJ6 series 5.2KVDC isolated 6W gate drive DIP DC to DC converter. It requires no opto feedback and has continuous short circuit protection, 80KV/μs at 1.6KV characterised dv/dt immunity & characterised partial discharge performance. Offering configurable dual output voltages it is ideal for powering high side and low side gate drive circuits for IGBT in bridge circuits. A choice of asymmetric output voltages allows optimum drive levels for best system efficiency and EMI. The MGJ6 DC to DC converter is characterised for high isolation and dv/dt requirements commonly seen in bridge circuits used in motor drives and inverters. A disable/frequency synchronisation pin simplifies EMC filter design. It features short circuit protection, overload protection, 15pF ultra low coupling capacitance, 3KVDC DC link voltage, 5.2KVDC isolation voltage and 100KHz switching frequency. The converter has line regulation of 2% & total regulation of 15%.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Specification	MGJ6D241510DC	MGJ6D24 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Current - Output (Max)	-	300 mA
Current - Output (Max)	-	125 mA
Current - Output (Max)	-	125 mA
Current - Output (Max) [Max]	240 mA	240 mA
Current - Output (Max) [Max]	240 mA	240 mA
Efficiency	-	81 - 85 %
Features	SCP, UVLO	Remote On/Off, SCP, UVLO
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	105 ░C	105 C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-DIP Module	7-SMD Module, 8-SIP Module, 7-DIP Module
Power (Watts)	6 W	6 W
Size / Dimension [x]	45.5 mm	29.5 - 46 mm
Size / Dimension [x]	1.79 "	1.16 - 1.81 in
Size / Dimension [y]	1.09 in	0.43 - 1.09 in
Size / Dimension [y]	27.8 mm	11 - 27.8 mm
Size / Dimension [z]	9.8 mm	9.2 - 28.1 mm
Size / Dimension [z]	0.39 in	0.36 - 1.11 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	18 V	18 V
Voltage - Isolation	5.2 kV	5.2 - 10.2 kV
Voltage - Output 1	15 V	15 - 24 V
Voltage - Output 2	-10 V	-10 - 24 V

Part

Mounting Type

Number of Outputs

Package / Case

Features

Applications

Voltage - Input (Min) [Min]

Voltage - Output 2

Efficiency

Size / Dimension [z]

Size / Dimension [y]

Size / Dimension [x]

Size / Dimension [z]

Size / Dimension [x]

Power (Watts)

Operating Temperature [Min]

Operating Temperature [Max]

Current - Output (Max)

Voltage - Output 1

Type

Voltage - Input (Max) [Max]

Voltage - Isolation

Current - Output (Max)

Current - Output (Max) [Max]

Murata Power Solutions Inc.

MGJ6D241505WMC-R13

Surface Mount

7-SMD Module

Remote On/Off

ITE (Commercial)

18 V

-5 V

81.5 %

9.2 mm

27.8 mm

1.09 in

1.81 in

0.36 in

46 mm

6 W

-40 °C

105 C

300 mA

15 V

Isolated Module

36 V

10.2 kV

Murata Power Solutions Inc.

MGJ6D241505SC

Through Hole

8-SIP Module

SCP, UVLO

ITE (Commercial), Medical

18 V

-5 V

28.1 mm

11 mm

0.43 in

1.54 in

1.11 in

39 mm

6 W

-40 °C

105 ░C

300 mA

15 V

Isolated Module

36 V

5.2 kV

Murata Power Solutions Inc.

MGJ6D24H24MC-R13

Surface Mount

7-SMD Module

SCP, UVLO

ITE (Commercial), Medical

18 V

24 V

85 %

14.1 mm

22.6 mm

0.89 in

1.16 in

0.56 "

29.5 mm

6 W

-40 °C

105 ░C

24 V

Isolated Module

36 V

5.2 kV

125 mA

Murata Power Solutions Inc.

MGJ6D241505LMC-R7

Surface Mount

7-SMD Module

SCP, UVLO

ITE (Commercial), Medical

18 V

-5 V

81 %

9.4 mm

27.8 mm

1.09 in

1.57 in

0.37 in

40 mm

6 W

-40 °C

105 ░C

300 mA

15 V

Isolated Module

36 V

5.2 kV

Murata Power Solutions Inc.

MGJ6D241505WMC-R7

Surface Mount

7-SMD Module

Remote On/Off

ITE (Commercial)

18 V

-5 V

81.5 %

9.2 mm

27.8 mm

1.09 in

1.81 in

0.36 in

46 mm

6 W

-40 °C

105 C

300 mA

15 V

Isolated Module

36 V

10.2 kV

Murata Power Solutions Inc.

MGJ6D241505DC

Through Hole

7-DIP Module

SCP, UVLO

ITE (Commercial), Medical

18 V

-5 V

9.8 mm

27.8 mm

1.09 in

1.79 "

0.39 in

45.5 mm

6 W

-40 °C

105 ░C

300 mA

15 V

Isolated Module

36 V

5.2 kV

Murata Power Solutions Inc.

MGJ6D241510DC

Through Hole

7-DIP Module

SCP, UVLO

ITE (Commercial), Medical

18 V

-10 V

9.8 mm

27.8 mm

1.09 in

1.79 "

0.39 in

45.5 mm

6 W

-40 °C

105 ░C

15 V

Isolated Module

36 V

5.2 kV

240 mA

Murata Power Solutions Inc.

MGJ6D242005DC

Through Hole

7-DIP Module

SCP, UVLO

ITE (Commercial), Medical

18 V

-5 V

9.8 mm

27.8 mm

1.09 in

1.79 "

0.39 in

45.5 mm

6 W

-40 °C

105 ░C

20 V

Isolated Module

36 V

5.2 kV

240 mA

Murata Power Solutions Inc.

MGJ6D242005WMC-R7

Surface Mount

7-SMD Module

Remote On/Off

ITE (Commercial)

18 V

-5 V

81.5 %

9.2 mm

27.8 mm

1.09 in

1.81 in

0.36 in

46 mm

6 W

-40 °C

105 C

20 V

Isolated Module

36 V

10.2 kV

240 mA

Murata Power Solutions Inc.

MGJ6D241505LMC-R13

Surface Mount

7-SMD Module

SCP, UVLO

ITE (Commercial), Medical

18 V

-5 V

81 %

9.4 mm

27.8 mm

1.09 in

1.57 in

0.37 in

40 mm

6 W

-40 °C

105 ░C

300 mA

15 V

Isolated Module

36 V

5.2 kV

Part	Mounting Type	Number of Outputs	Package / Case	Features	Applications	Voltage - Input (Min) [Min]	Voltage - Output 2	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Voltage - Output 1	Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Murata Power Solutions Inc. MGJ6D241505WMC-R13	Surface Mount	2	7-SMD Module	Remote On/Off	ITE (Commercial)	18 V	-5 V	81.5 %	9.2 mm	27.8 mm	1.09 in	1.81 in	0.36 in	46 mm	6 W	-40 °C	105 C	300 mA	15 V	Isolated Module	36 V	10.2 kV
Murata Power Solutions Inc. MGJ6D241505SC	Through Hole	2	8-SIP Module	SCP, UVLO	ITE (Commercial), Medical	18 V	-5 V		28.1 mm	11 mm	0.43 in	1.54 in	1.11 in	39 mm	6 W	-40 °C	105 ░C	300 mA	15 V	Isolated Module	36 V	5.2 kV
Murata Power Solutions Inc. MGJ6D24H24MC-R13	Surface Mount	2	7-SMD Module	SCP, UVLO	ITE (Commercial), Medical	18 V	24 V	85 %	14.1 mm	22.6 mm	0.89 in	1.16 in	0.56 "	29.5 mm	6 W	-40 °C	105 ░C		24 V	Isolated Module	36 V	5.2 kV	125 mA	125 mA
Murata Power Solutions Inc. MGJ6D241505LMC-R7	Surface Mount	2	7-SMD Module	SCP, UVLO	ITE (Commercial), Medical	18 V	-5 V	81 %	9.4 mm	27.8 mm	1.09 in	1.57 in	0.37 in	40 mm	6 W	-40 °C	105 ░C	300 mA	15 V	Isolated Module	36 V	5.2 kV
Murata Power Solutions Inc. MGJ6D241505WMC-R7	Surface Mount	2	7-SMD Module	Remote On/Off	ITE (Commercial)	18 V	-5 V	81.5 %	9.2 mm	27.8 mm	1.09 in	1.81 in	0.36 in	46 mm	6 W	-40 °C	105 C	300 mA	15 V	Isolated Module	36 V	10.2 kV
Murata Power Solutions Inc. MGJ6D241505DC	Through Hole	2	7-DIP Module	SCP, UVLO	ITE (Commercial), Medical	18 V	-5 V		9.8 mm	27.8 mm	1.09 in	1.79 "	0.39 in	45.5 mm	6 W	-40 °C	105 ░C	300 mA	15 V	Isolated Module	36 V	5.2 kV
Murata Power Solutions Inc. MGJ6D241510DC	Through Hole	2	7-DIP Module	SCP, UVLO	ITE (Commercial), Medical	18 V	-10 V		9.8 mm	27.8 mm	1.09 in	1.79 "	0.39 in	45.5 mm	6 W	-40 °C	105 ░C		15 V	Isolated Module	36 V	5.2 kV			240 mA	240 mA
Murata Power Solutions Inc. MGJ6D242005DC	Through Hole	2	7-DIP Module	SCP, UVLO	ITE (Commercial), Medical	18 V	-5 V		9.8 mm	27.8 mm	1.09 in	1.79 "	0.39 in	45.5 mm	6 W	-40 °C	105 ░C		20 V	Isolated Module	36 V	5.2 kV			240 mA	240 mA
Murata Power Solutions Inc. MGJ6D242005WMC-R7	Surface Mount	2	7-SMD Module	Remote On/Off	ITE (Commercial)	18 V	-5 V	81.5 %	9.2 mm	27.8 mm	1.09 in	1.81 in	0.36 in	46 mm	6 W	-40 °C	105 C		20 V	Isolated Module	36 V	10.2 kV			240 mA	240 mA
Murata Power Solutions Inc. MGJ6D241505LMC-R13	Surface Mount	2	7-SMD Module	SCP, UVLO	ITE (Commercial), Medical	18 V	-5 V	81 %	9.4 mm	27.8 mm	1.09 in	1.57 in	0.37 in	40 mm	6 W	-40 °C	105 ░C	300 mA	15 V	Isolated Module	36 V	5.2 kV
