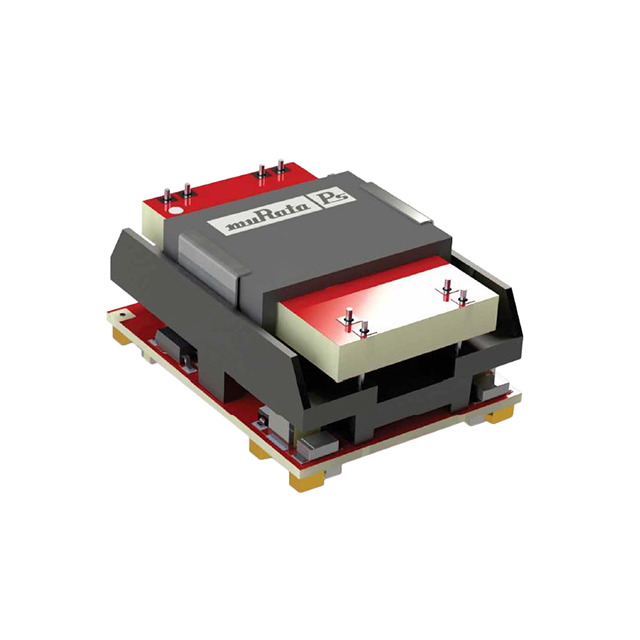

MGJ6D24H24MC-R13

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, 2:1, 6 W, 2 OUTPUT, 24 V, 125 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

MGJ6D24H24MC-R13

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, 2:1, 6 W, 2 OUTPUT, 24 V, 125 MA

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	92	$ 16.12
Newark	Each (Supplied on Cut Tape)	50	$ 16.20
		100	$ 15.80

Description

General part information

MGJ6D24 Series

The MGJ6D24H24MC-R13 from Murata Power Solutions is MGJ6 half bridge series 5.2KVDC isolated 6W dual output gate drive SM DC/DC converter. The MGJ6 series of DC/DC converters is ideal for simultaneously powering ‘high side’ and ‘low side’ gate drive circuits for IGBTs, silicon and silicon carbide Mosfets in half bridge circuits. The MGJ6 series is characterised for high isolation and dv/dt requirements commonly seen in bridge circuits used in motor drives and inverters.
