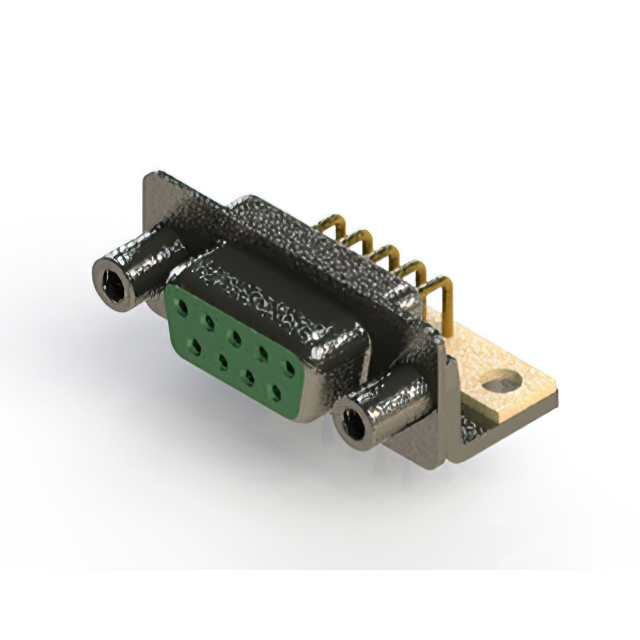

622-M09-260-GT6
ActiveEDAC Inc.
EDAC RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 622-M09-260-GT6 |
|---|---|
| Backset Spacing | 0.283 in |
| Backset Spacing | 7.2 mm |
| Color | Green |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Shielded, Mounting Brackets |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
622-M09 Series
...
| Part | Connector Style | Current Rating (Amps) | Material Flammability Rating | Termination | Number of Rows | Contact Finish | Mounting Type | Features | Color | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Flange Feature | Connector Type | Number of Positions | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Backset Spacing | Backset Spacing | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | D-Sub | 5 A | UL94 V-0 | Solder | 2 | Gold | Board Edge Right Angle Through Hole | Mounting Brackets Shielded | Green | Flash | DE E | 1 | Signal | 4-40 | Receptacle Female Sockets | 9 | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 °C | 125 °C | 0.283 in | 7.2 mm | |||
EDAC Inc. | D-Sub | 5 A | UL94 V-0 | Solder | 2 | Gold | Board Edge Right Angle Through Hole | Mounting Brackets Shielded | White | Flash | DE E | 1 | Signal | 4-40 | Receptacle Female Sockets | 9 | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 °C | 125 °C | 0.283 in | 7.2 mm | Nickel Plated Steel | ||
EDAC Inc. | D-Sub | 5 A | UL94 V-0 | Solder | 2 | Gold | Board Edge Right Angle Through Hole | Mounting Brackets Shielded | Black | Flash | DE E | 1 | Signal | 4-40 | Receptacle Female Sockets | 9 | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 °C | 125 °C | 0.283 in | 7.2 mm | Nickel Plated Steel | ||
EDAC Inc. | D-Sub | 5 A | UL94 V-0 | Solder | 2 | Gold | Board Edge Right Angle Through Hole | Shielded | White | DE E | 1 | Signal | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 9 | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 °C | 125 °C | 0.283 in | 7.2 mm | 15 µin | 0.38 µm | ||
EDAC Inc. | D-Sub | 5 A | UL94 V-0 | Solder | 2 | Gold | Board Edge Right Angle Through Hole | Shielded | White | DE E | 1 | Signal | Housing/Shell (4-40) | Receptacle Female Sockets | 9 | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 °C | 125 °C | 0.283 in | 7.2 mm | 30 Áin | 0.76 Ám | ||
EDAC Inc. | D-Sub | 5 A | UL94 V-0 | Solder | 2 | Gold | Board Edge Right Angle Through Hole | Shielded | Blue | DE E | 1 | Signal | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 9 | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 °C | 125 °C | 0.283 in | 7.2 mm | Nickel Plated Steel | 15 µin | 0.38 µm | |
EDAC Inc. | D-Sub | 5 A | UL94 V-0 | Solder | 2 | Gold | Board Edge Right Angle Through Hole | Board Lock Mounting Brackets Shielded | Green | Flash | DE E | 1 | Signal | Housing/Shell (4-40) | Receptacle Female Sockets | 9 | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 °C | 125 °C | 0.283 in | 7.2 mm | |||
EDAC Inc. | D-Sub | 5 A | UL94 V-0 | Solder | 2 | Gold | Board Edge Right Angle Through Hole | Shielded | White | DE E | 1 | Signal | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 9 | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 °C | 125 °C | 0.283 in | 7.2 mm | Nickel Plated Steel | 30 Áin | 0.76 Ám | |
EDAC Inc. | D-Sub | 5 A | UL94 V-0 | Solder | 2 | Gold | Board Edge Right Angle Through Hole | Mounting Brackets Shielded | White | DE E | 1 | Signal | Housing/Shell (4-40) | Receptacle Female Sockets | 9 | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 °C | 125 °C | 0.283 in | 7.2 mm | 15 µin | 0.38 µm | ||
EDAC Inc. | D-Sub | 5 A | UL94 V-0 | Solder | 2 | Gold | Board Edge Right Angle Through Hole | Board Lock Mounting Brackets Shielded | Blue | DE E | 1 | Signal | Housing/Shell (4-40) | Receptacle Female Sockets | 9 | Copper Alloy | Polyamide (PA6T) Nylon 6T | -55 °C | 125 °C | 0.283 in | 7.2 mm | 15 µin | 0.38 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
622-M09 Series
9 Position D-Sub Receptacle, Female Sockets Connector
