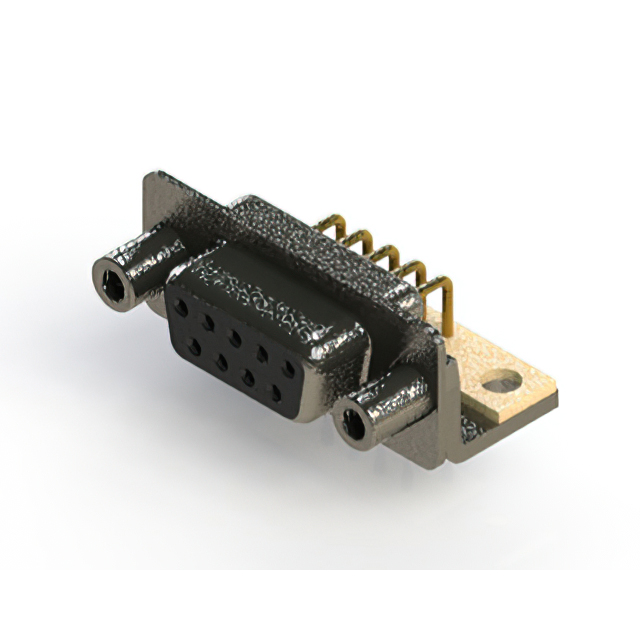

622-M09-260-BN6

Active

EDAC Inc.

622M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

622-M09-260-BN6

Active

EDAC Inc.

622M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	622-M09-260-BN6

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded, Mounting Brackets
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

622-M09 Series

...

Part	Connector Style	Current Rating (Amps)	Material Flammability Rating	Termination	Number of Rows	Contact Finish	Mounting Type	Features	Color	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Flange Feature	Connector Type	Number of Positions	Contact Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Backset Spacing	Backset Spacing	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 622-M09-260-GT6	D-Sub	5 A	UL94 V-0	Solder	2	Gold	Board Edge Right Angle Through Hole	Mounting Brackets Shielded	Green	Flash	DE E	1	Signal	4-40	Receptacle Female Sockets	9	Copper Alloy	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	0.283 in	7.2 mm
EDAC Inc. 622-M09-260-WN6	D-Sub	5 A	UL94 V-0	Solder	2	Gold	Board Edge Right Angle Through Hole	Mounting Brackets Shielded	White	Flash	DE E	1	Signal	4-40	Receptacle Female Sockets	9	Copper Alloy	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	0.283 in	7.2 mm	Nickel Plated Steel
EDAC Inc. 622-M09-260-BN6	D-Sub	5 A	UL94 V-0	Solder	2	Gold	Board Edge Right Angle Through Hole	Mounting Brackets Shielded	Black	Flash	DE E	1	Signal	4-40	Receptacle Female Sockets	9	Copper Alloy	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	0.283 in	7.2 mm	Nickel Plated Steel
EDAC Inc. 622-M09-360-WT1	D-Sub	5 A	UL94 V-0	Solder	2	Gold	Board Edge Right Angle Through Hole	Shielded	White		DE E	1	Signal	Housing/Shell (Unthreaded)	Receptacle Female Sockets	9	Copper Alloy	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	0.283 in	7.2 mm		15 µin	0.38 µm
EDAC Inc. 622-M09-660-WT2	D-Sub	5 A	UL94 V-0	Solder	2	Gold	Board Edge Right Angle Through Hole	Shielded	White		DE E	1	Signal	Housing/Shell (4-40)	Receptacle Female Sockets	9	Copper Alloy	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	0.283 in	7.2 mm		30 Áin	0.76 Ám
EDAC Inc. 622-M09-360-LN1	D-Sub	5 A	UL94 V-0	Solder	2	Gold	Board Edge Right Angle Through Hole	Shielded	Blue		DE E	1	Signal	Housing/Shell (Unthreaded)	Receptacle Female Sockets	9	Copper Alloy	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	0.283 in	7.2 mm	Nickel Plated Steel	15 µin	0.38 µm
EDAC Inc. 622-M09-260-GT3	D-Sub	5 A	UL94 V-0	Solder	2	Gold	Board Edge Right Angle Through Hole	Board Lock Mounting Brackets Shielded	Green	Flash	DE E	1	Signal	Housing/Shell (4-40)	Receptacle Female Sockets	9	Copper Alloy	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	0.283 in	7.2 mm
EDAC Inc. 622-M09-660-WN1	D-Sub	5 A	UL94 V-0	Solder	2	Gold	Board Edge Right Angle Through Hole	Shielded	White		DE E	1	Signal	Housing/Shell (Unthreaded)	Receptacle Female Sockets	9	Copper Alloy	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	0.283 in	7.2 mm	Nickel Plated Steel	30 Áin	0.76 Ám
EDAC Inc. 622-M09-360-WT4	D-Sub	5 A	UL94 V-0	Solder	2	Gold	Board Edge Right Angle Through Hole	Mounting Brackets Shielded	White		DE E	1	Signal	Housing/Shell (4-40)	Receptacle Female Sockets	9	Copper Alloy	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	0.283 in	7.2 mm		15 µin	0.38 µm
EDAC Inc. 622-M09-360-LT3	D-Sub	5 A	UL94 V-0	Solder	2	Gold	Board Edge Right Angle Through Hole	Board Lock Mounting Brackets Shielded	Blue		DE E	1	Signal	Housing/Shell (4-40)	Receptacle Female Sockets	9	Copper Alloy	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	0.283 in	7.2 mm		15 µin	0.38 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 4.87

Description

General part information

622-M09 Series

9 Position D-Sub Receptacle, Female Sockets Connector
