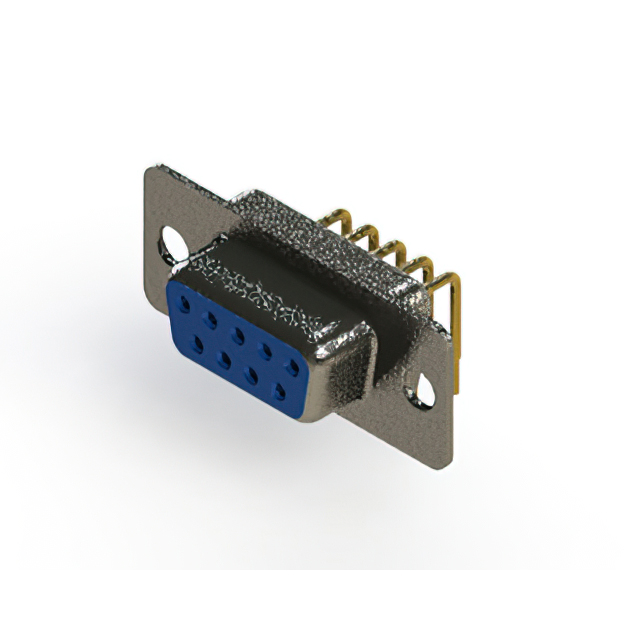

Specification	622-M09-360-LN1

Backset Spacing	0.283 in
Color	Blue
Connector Layout	DE, E
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Per Contact)	5 A
Dielectric Material	Nylon 6T, Polyamide (PA6T)
Features	Shielded
Finish	Nickel Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	1
Termination	Solder

622-M09 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Mounting Type	Flange Feature	Number of Positions	Current Rating (Per Contact)	Connector Style	Contact Finish	Connector Type	Backset Spacing	Termination	Shell Size	Connector Layout	Number of Rows	Finish	Shell Material	Features	Material Flammability Rating	Contact Type	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Form	Color	Contact Material
EDAC Inc. 622-M09-260-GT6	0	Flash	Flash	Board Edge Right Angle Through Hole	Mating Side (4-40)	9	5 A	D-Sub	Gold	Female Sockets Receptacle	0.283 in	Solder	1	DE E	2	Tin Plated	Steel	Mounting Brackets Shielded	UL94 V-0	Signal	Nylon 6T Polyamide (PA6T)	125 °C	-55 °C	Machined	Green	Copper Alloy
EDAC Inc. 622-M09-260-WN6	0	Flash	Flash	Board Edge Right Angle Through Hole	Mating Side (4-40)	9	5 A	D-Sub	Gold	Female Sockets Receptacle	0.283 in	Solder	1	DE E	2	Nickel Plated	Steel	Mounting Brackets Shielded	UL94 V-0	Signal	Nylon 6T Polyamide (PA6T)	125 °C	-55 °C	Machined	White	Copper Alloy
EDAC Inc. 622-M09-260-BN6	0	Flash	Flash	Board Edge Right Angle Through Hole	Mating Side (4-40)	9	5 A	D-Sub	Gold	Female Sockets Receptacle	0.283 in	Solder	1	DE E	2	Nickel Plated	Steel	Mounting Brackets Shielded	UL94 V-0	Signal	Nylon 6T Polyamide (PA6T)	125 °C	-55 °C	Machined	Black	Copper Alloy
EDAC Inc. 622-M09-360-WT1	15 µin			Board Edge Right Angle Through Hole	Housing Shell (Unthreaded)	9	5 A	D-Sub	Gold	Female Sockets Receptacle	0.283 in	Solder	1	DE E	2	Tin Plated	Steel	Shielded	UL94 V-0	Signal	Nylon 6T Polyamide (PA6T)	125 °C	-55 °C	Machined	White	Copper Alloy
EDAC Inc. 622-M09-660-WT2	30 µin			Board Edge Right Angle Through Hole	Housing Shell (4-40)	9	5 A	D-Sub	Gold	Female Sockets Receptacle	0.283 in	Solder	1	DE E	2	Tin Plated	Steel	Shielded	UL94 V-0	Signal	Nylon 6T Polyamide (PA6T)	125 °C	-55 °C	Machined	White	Copper Alloy
EDAC Inc. 622-M09-360-LN1	15 µin			Board Edge Right Angle Through Hole	Housing Shell (Unthreaded)	9	5 A	D-Sub	Gold	Female Sockets Receptacle	0.283 in	Solder	1	DE E	2	Nickel Plated	Steel	Shielded	UL94 V-0	Signal	Nylon 6T Polyamide (PA6T)	125 °C	-55 °C	Machined	Blue	Copper Alloy
EDAC Inc. 622-M09-260-GT3	0	Flash	Flash	Board Edge Right Angle Through Hole	Housing Shell (4-40)	9	5 A	D-Sub	Gold	Female Sockets Receptacle	0.283 in	Solder	1	DE E	2	Tin Plated	Steel	Board Lock Mounting Brackets Shielded	UL94 V-0	Signal	Nylon 6T Polyamide (PA6T)	125 °C	-55 °C	Machined	Green	Copper Alloy
EDAC Inc. 622-M09-660-WN1	30 µin			Board Edge Right Angle Through Hole	Housing Shell (Unthreaded)	9	5 A	D-Sub	Gold	Female Sockets Receptacle	0.283 in	Solder	1	DE E	2	Nickel Plated	Steel	Shielded	UL94 V-0	Signal	Nylon 6T Polyamide (PA6T)	125 °C	-55 °C	Machined	White	Copper Alloy
EDAC Inc. 622-M09-360-WT4	15 µin			Board Edge Right Angle Through Hole	Housing Shell (4-40)	9	5 A	D-Sub	Gold	Female Sockets Receptacle	0.283 in	Solder	1	DE E	2	Tin Plated	Steel	Mounting Brackets Shielded	UL94 V-0	Signal	Nylon 6T Polyamide (PA6T)	125 °C	-55 °C	Machined	White	Copper Alloy
EDAC Inc. 622-M09-360-LT3	15 µin			Board Edge Right Angle Through Hole	Housing Shell (4-40)	9	5 A	D-Sub	Gold	Female Sockets Receptacle	0.283 in	Solder	1	DE E	2	Tin Plated	Steel	Board Lock Mounting Brackets Shielded	UL94 V-0	Signal	Nylon 6T Polyamide (PA6T)	125 °C	-55 °C	Machined	Blue	Copper Alloy
