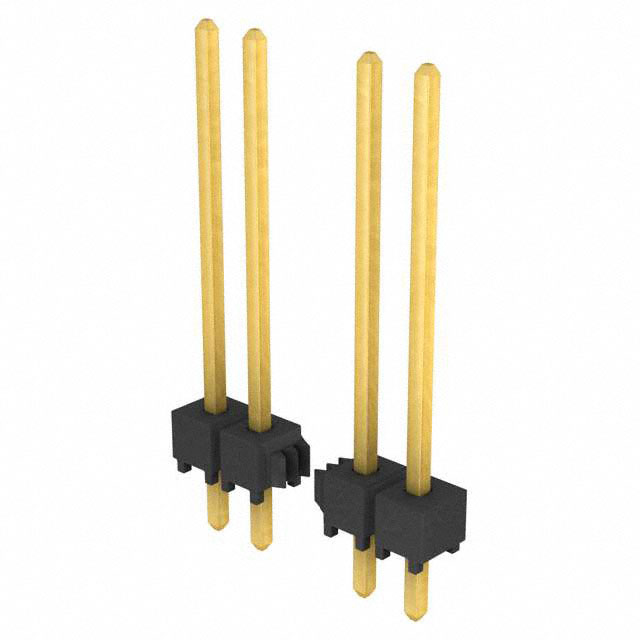

TSW-131-17-G-S

Active

Samtec Inc.

CONN HEADER VERT 31POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTSW Footprint Datasheet

TSW-131-17-G-S

Active

Samtec Inc.

CONN HEADER VERT 31POS 2.54MM

Deep-Dive with AI

DocumentsTSW Footprint Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSW-131-17-G-S

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	15.75 mm
Contact Length - Mating	0.62 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	31
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.83 in
Overall Contact Length	21.08 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSW-131 Series

Part	Mounting Type	Number of Positions Loaded	Insulation Color	Contact Length - Post	Contact Length - Post [x]	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Termination	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Insulation Material	Material Flammability Rating	Contact Type	Contact Length - Mating [x]	Contact Length - Mating	Contact Shape	Connector Type	Shrouding	Overall Contact Length	Overall Contact Length	Style	Number of Rows	Number of Positions	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Mating
Samtec Inc. TSW-131-26-T-D	Through Hole	All	Black	3.2 mm	0.126 in	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	105 ░C	-55 °C	Tin	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin	0.23 in	5.84 mm	Square	Header	Unshrouded	11.58 mm	0.456 in	Board to Board Cable	2	62	Phosphor Bronze
Samtec Inc. TSW-131-07-G-S-LL	Through Hole	All	Black	2.54 mm		Push-Pull			0.1 in	2.54 mm	Kinked Pin Solder	0.1 in	2.54 mm	125 °C	-55 °C	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin	0.23 in	5.84 mm	Square	Header	Unshrouded	10.92 mm	0.43 in	Board to Board Cable	1	31	Phosphor Bronze	3 µin	0.076 µm	0.1 in	Gold	10 çin	0.25 çm
Samtec Inc. TSW-131-23-L-S	Through Hole	All	Black	2.92 mm		Push-Pull			0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Tin	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin	0.23 in	5.84 mm	Square	Header	Unshrouded	11.3 mm	0.445 "	Board to Board Cable	1	31	Phosphor Bronze			0.115 in	Gold	10 çin	0.25 çm
Samtec Inc. TSW-131-05-G-D	Through Hole	All	Black	3.3 mm		Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin			Square	Header	Unshrouded	8.51 mm	0.335 in	Board to Board Cable	2	62	Phosphor Bronze	3 µin	0.076 µm	0.13 in	Gold	10 çin	0.25 çm
Samtec Inc. TSW-131-07-S-D	Through Hole	All	Black	2.54 mm		Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Tin	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin	0.23 in	5.84 mm	Square	Header	Unshrouded	10.92 mm	0.43 in	Board to Board Cable	2	62	Phosphor Bronze			0.1 in	Gold	30 Áin	0.76 Ám
Samtec Inc. TSW-131-07-G-D-LL
Samtec Inc. TSW-131-06-G-S	Through Hole	All	Black		0.095 in	Push-Pull			0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin			Square	Header	Unshrouded	7.62 mm	0.3 in	Board to Board Cable	1	31	Phosphor Bronze	3 µin	0.076 µm		Gold	10 çin	0.25 çm	2.41 mm
Samtec Inc. TSW-131-17-S-D	Through Hole	All	Black	2.79 mm	0.11 in	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Tin	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin		15.75 mm	Square	Header	Unshrouded	21.08 mm	0.83 in	Board to Board Cable	2	62	Phosphor Bronze				Gold	30 Áin	0.76 Ám		0.62 in
Samtec Inc. TSW-131-17-G-S	Through Hole	All	Black	2.79 mm	0.11 in	Push-Pull			0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin		15.75 mm	Square	Header	Unshrouded	21.08 mm	0.83 in	Board to Board Cable	1	31	Phosphor Bronze	3 µin	0.076 µm		Gold	10 çin	0.25 çm		0.62 in
Samtec Inc. TSW-131-14-S-S	Through Hole	All	Black	2.79 mm	0.11 in	Push-Pull			0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Tin	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin		8.13 mm	Square	Header	Unshrouded	13.46 mm	0.53 in	Board to Board Cable	1	31	Phosphor Bronze				Gold	30 Áin	0.76 Ám		0.32 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.48
		10	$ 4.07
		100	$ 3.59
		500	$ 3.05
		1000	$ 2.60

Description

General part information

TSW-131 Series

Connector Header Through Hole 31 position 0.100" (2.54mm)

Documents

Technical documentation and resources

TSW Footprint

Datasheet
