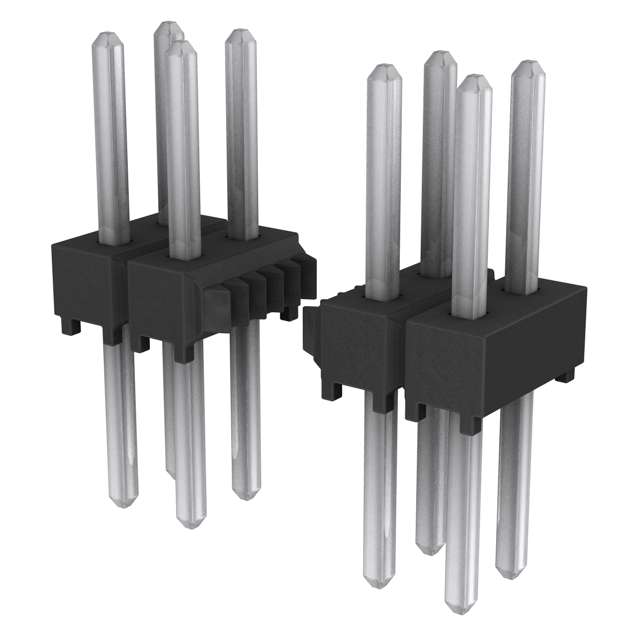

TSW-131-26-T-D

Unknown

Samtec Inc.

CONN HEADER VERT 62POS 2.54MM

TSW-131-26-T-D

Unknown

Samtec Inc.

CONN HEADER VERT 62POS 2.54MM

Description Specifications Series Pricing CAD Documents

Description

General part information

TSW-131 Series

Connector Header Through Hole 62 position 0.100" (2.54mm)

Technical Specifications

Parameters and characteristics for this part

Specification	TSW-131-26-T-D

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.23 in
Contact Length - Post	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	62
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.456 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

TSW-131 Series

...

Part	Number of Positions	Connector Type	Number of Positions Loaded	Contact Type	Contact Material	Style	Fastening Type	Pitch - Mating	Number of Rows	Mounting Type	Termination	Insulation Color	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Material	Shrouding	Insulation Height	Contact Length - Post	Contact Length - Mating	Contact Finish - Post	Material Flammability Rating	Contact Finish - Mating	Row Spacing - Mating	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Post
Samtec Inc. TSW-131-26-T-D	62	Header	All	Male Pin	Phosphor Bronze	Board Board or Cable	Push-Pull	0.1 in	2	Through Hole	Solder	Black	Square	-55 °C	105 °C	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 in	0.126 in	0.23 in	Tin	UL94 V-0	Tin	0.1 in	0.456 in
Samtec Inc. TSW-131-07-G-S-LL	31	Header	All	Male Pin	Phosphor Bronze	Board Board or Cable	Push-Pull	0.1 in	1	Through Hole	Kinked Pin Solder	Black	Square	-55 °C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 in	0.1 in	0.23 in	Gold	UL94 V-0	Gold		0.43 in	10 µin	3 µin
Samtec Inc. TSW-131-08-L-D	62	Header	All	Male Pin	Phosphor Bronze	Board Board or Cable	Push-Pull	0.1 in	2	Through Hole	Solder	Black	Square	-55 °C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 in	0.2 in	0.23 in	Tin	UL94 V-0	Gold	0.1 in	0.53 in	10 µin
Samtec Inc. TSW-131-23-L-S	31	Header	All	Male Pin	Phosphor Bronze	Board Board or Cable	Push-Pull	0.1 in	1	Through Hole	Solder	Black	Square	-55 °C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 in	0.115 in	0.23 in	Tin	UL94 V-0	Gold		0.445 in	10 µin
Samtec Inc. TSW-131-05-G-D	62	Header	All	Male Pin	Phosphor Bronze	Board Board or Cable	Push-Pull	0.1 in	2	Through Hole	Solder	Black	Square	-55 °C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 in	0.13 in	0.105 in	Gold	UL94 V-0	Gold	0.1 in	0.335 in	10 µin	3 µin
Samtec Inc. TSW-131-16-G-T	93	Header	All	Male Pin	Phosphor Bronze	Board Board or Cable	Push-Pull	0.1 in	3	Through Hole	Solder	Black	Square	-55 °C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 in	0.31 in	0.32 in	Gold	UL94 V-0	Gold	0.1 in	0.73 in	10 µin	3 µin
Samtec Inc. TSW-131-07-S-D	62	Header	All	Male Pin	Phosphor Bronze	Board Board or Cable	Push-Pull	0.1 in	2	Through Hole	Solder	Black	Square	-55 °C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 in	0.1 in	0.23 in	Tin	UL94 V-0	Gold	0.1 in	0.43 in	30 µin
Samtec Inc. TSW-131-07-G-D-LL
Samtec Inc. TSW-131-17-S-S	31	Header	All	Male Pin	Phosphor Bronze	Board Board or Cable	Push-Pull	0.1 in	1	Through Hole	Solder	Black	Square	-55 °C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 in	0.11 in	0.62 in	Tin	UL94 V-0	Gold		0.83 in	30 µin
Samtec Inc. TSW-131-06-G-S	31	Header	All	Male Pin	Phosphor Bronze	Board Board or Cable	Push-Pull	0.1 in	1	Through Hole	Solder	Black	Square	-55 °C	125 °C	Polybutylene Terephthalate (PBT)	Unshrouded	0.1 in	0.095 in	0.105 in	Gold	UL94 V-0	Gold		0.3 in	10 µin	3 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TSW-131-26-T-D | Datasheet

HTSW, TSW Series Datasheet

Datasheet
