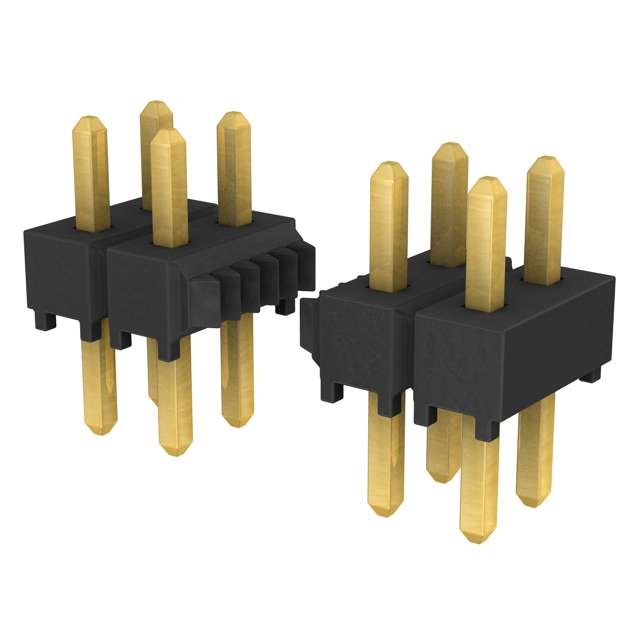

TSW-131-05-G-D

Active

Samtec Inc.

CONN HEADER VERT 62POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet TSW Footprint

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSW-131-05-G-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	62
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.51 mm
Overall Contact Length	0.335 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSW-131 Series

Part	Mounting Type	Number of Positions Loaded	Insulation Color	Contact Length - Post	Contact Length - Post [x]	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Termination	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Insulation Material	Material Flammability Rating	Contact Type	Contact Length - Mating [x]	Contact Length - Mating	Contact Shape	Connector Type	Shrouding	Overall Contact Length	Overall Contact Length	Style	Number of Rows	Number of Positions	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Mating
Samtec Inc. TSW-131-26-T-D	Through Hole	All	Black	3.2 mm	0.126 in	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	105 ░C	-55 °C	Tin	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin	0.23 in	5.84 mm	Square	Header	Unshrouded	11.58 mm	0.456 in	Board to Board Cable	2	62	Phosphor Bronze
Samtec Inc. TSW-131-07-G-S-LL	Through Hole	All	Black	2.54 mm		Push-Pull			0.1 in	2.54 mm	Kinked Pin Solder	0.1 in	2.54 mm	125 °C	-55 °C	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin	0.23 in	5.84 mm	Square	Header	Unshrouded	10.92 mm	0.43 in	Board to Board Cable	1	31	Phosphor Bronze	3 µin	0.076 µm	0.1 in	Gold	10 çin	0.25 çm
Samtec Inc. TSW-131-23-L-S	Through Hole	All	Black	2.92 mm		Push-Pull			0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Tin	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin	0.23 in	5.84 mm	Square	Header	Unshrouded	11.3 mm	0.445 "	Board to Board Cable	1	31	Phosphor Bronze			0.115 in	Gold	10 çin	0.25 çm
Samtec Inc. TSW-131-05-G-D	Through Hole	All	Black	3.3 mm		Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin			Square	Header	Unshrouded	8.51 mm	0.335 in	Board to Board Cable	2	62	Phosphor Bronze	3 µin	0.076 µm	0.13 in	Gold	10 çin	0.25 çm
Samtec Inc. TSW-131-07-S-D	Through Hole	All	Black	2.54 mm		Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Tin	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin	0.23 in	5.84 mm	Square	Header	Unshrouded	10.92 mm	0.43 in	Board to Board Cable	2	62	Phosphor Bronze			0.1 in	Gold	30 Áin	0.76 Ám
Samtec Inc. TSW-131-07-G-D-LL
Samtec Inc. TSW-131-06-G-S	Through Hole	All	Black		0.095 in	Push-Pull			0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin			Square	Header	Unshrouded	7.62 mm	0.3 in	Board to Board Cable	1	31	Phosphor Bronze	3 µin	0.076 µm		Gold	10 çin	0.25 çm	2.41 mm
Samtec Inc. TSW-131-17-S-D	Through Hole	All	Black	2.79 mm	0.11 in	Push-Pull	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Tin	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin		15.75 mm	Square	Header	Unshrouded	21.08 mm	0.83 in	Board to Board Cable	2	62	Phosphor Bronze				Gold	30 Áin	0.76 Ám		0.62 in
Samtec Inc. TSW-131-17-G-S	Through Hole	All	Black	2.79 mm	0.11 in	Push-Pull			0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin		15.75 mm	Square	Header	Unshrouded	21.08 mm	0.83 in	Board to Board Cable	1	31	Phosphor Bronze	3 µin	0.076 µm		Gold	10 çin	0.25 çm		0.62 in
Samtec Inc. TSW-131-14-S-S	Through Hole	All	Black	2.79 mm	0.11 in	Push-Pull			0.1 in	2.54 mm	Solder	0.1 in	2.54 mm	125 °C	-55 °C	Tin	Polybutylene Terephthalate (PBT)	UL94 V-0	Male Pin		8.13 mm	Square	Header	Unshrouded	13.46 mm	0.53 in	Board to Board Cable	1	31	Phosphor Bronze				Gold	30 Áin	0.76 Ám		0.32 in
