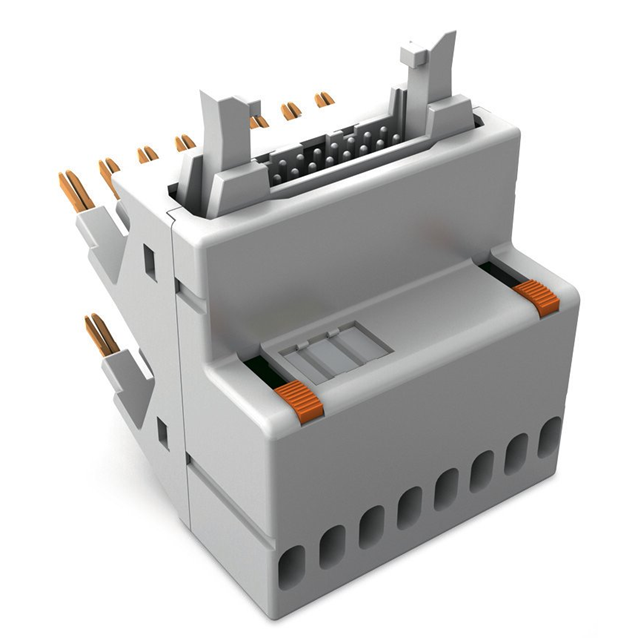

857-980

Active

WAGO Corporation

8-CHANNEL ADAPTER FOR SYSTEM WIRING

Search across all available documentation for this part.

Active

WAGO Corporation

8-CHANNEL ADAPTER FOR SYSTEM WIRING

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Terminal Block, Plug Connection, 8 pos, 1 rows To Rectangular Connector, Male Pins, 16 Pos, 2 Rows

Technical documentation and resources

No documents available

Specification	857-980	857-9 Series

Convert From (Adapter End)	1, 8 Pos	1 - 8
Convert From (Adapter End)	Plug Connection, Terminal Block	Plug Connection, Terminal Block
Convert To (Adapter End)	Male Pins, Rectangular Connector	Male Pins, Rectangular Connector
Convert To (Adapter End)	2 Rows, 16 Pos	2 - 16 Pos
Mounting Type	Board Mounted	Board Mounted
Wire Gauge	-	28 AWG
Wire Gauge	-	14 AWG

Part	Wire Gauge [Max]	Wire Gauge [Min]	Convert From (Adapter End)	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Mounting Type
WAGO Corporation 857-982	28 AWG	14 AWG	1, 8 Pos	Plug Connection, Terminal Block	2 Rows, 14 Pos	Male Pins, Rectangular Connector	Board Mounted
WAGO Corporation 857-986	28 AWG	14 AWG	1, 8 Pos	Plug Connection, Terminal Block			Board Mounted
WAGO Corporation 857-980			1, 8 Pos	Plug Connection, Terminal Block	2 Rows, 16 Pos	Male Pins, Rectangular Connector	Board Mounted
WAGO Corporation 857-981	28 AWG	14 AWG	1, 8 Pos	Plug Connection, Terminal Block	2 Rows, 14 Pos	Male Pins, Rectangular Connector	Board Mounted
