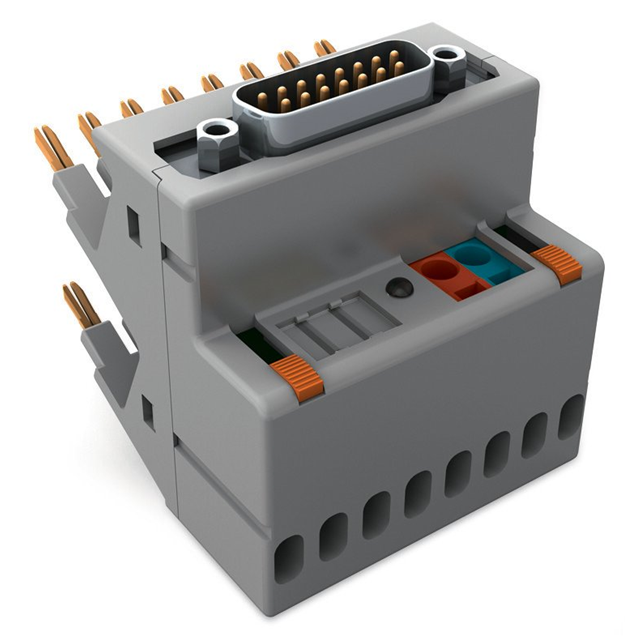

857-986

Active

WAGO Corporation

INTERFACE ADAPTER; 15-POLE; HIGH

Search across all available documentation for this part.

Active

WAGO Corporation

INTERFACE ADAPTER; 15-POLE; HIGH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	857-986	857-9 Series

Convert From (Adapter End)	1, 8 Pos	1 - 8
Convert From (Adapter End)	Plug Connection, Terminal Block	Plug Connection, Terminal Block
Convert To (Adapter End)	-	2 - 16 Pos
Convert To (Adapter End)	-	Male Pins, Rectangular Connector
Mounting Type	Board Mounted	Board Mounted
Wire Gauge [Max]	28 AWG	28 AWG
Wire Gauge [Min]	14 AWG	14 AWG

INTERFACE ADAPTER; 14-POLE; HIGH

Part	Wire Gauge [Max]	Wire Gauge [Min]	Convert From (Adapter End)	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Mounting Type
WAGO Corporation 857-982	28 AWG	14 AWG	1, 8 Pos	Plug Connection, Terminal Block	2 Rows, 14 Pos	Male Pins, Rectangular Connector	Board Mounted
WAGO Corporation 857-986	28 AWG	14 AWG	1, 8 Pos	Plug Connection, Terminal Block			Board Mounted
WAGO Corporation 857-980			1, 8 Pos	Plug Connection, Terminal Block	2 Rows, 16 Pos	Male Pins, Rectangular Connector	Board Mounted
WAGO Corporation 857-981	28 AWG	14 AWG	1, 8 Pos	Plug Connection, Terminal Block	2 Rows, 14 Pos	Male Pins, Rectangular Connector	Board Mounted

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Terminal Block, Plug Connection, 8 pos, 1 rows To D-Sub, Male Pins, 15 Pos, 2 Rows

Technical documentation and resources

No documents available
