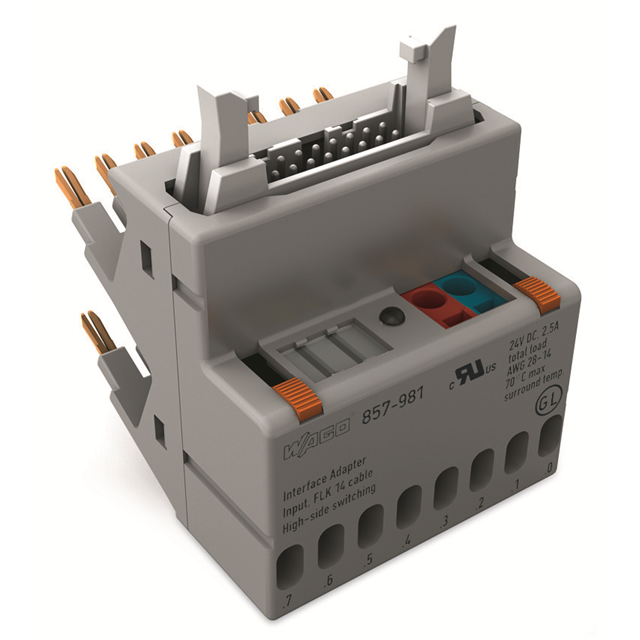

857-981

Active

WAGO Corporation

INTERFACE ADAPTER; 14-POLE; HIGH

Search across all available documentation for this part.

Active

WAGO Corporation

INTERFACE ADAPTER; 14-POLE; HIGH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Terminal Block, Plug Connection, 8 pos, 1 rows To Rectangular Connector, Male Pins, 14 Pos, 2 Rows

Technical documentation and resources

No documents available

Specification	857-981	857-9 Series

Convert From (Adapter End)	1, 8 Pos	1 - 8
Convert From (Adapter End)	Plug Connection, Terminal Block	Plug Connection, Terminal Block
Convert To (Adapter End)	14 Pos, 2 Rows	2 - 16 Pos
Convert To (Adapter End)	Male Pins, Rectangular Connector	Male Pins, Rectangular Connector
Mounting Type	Board Mounted	Board Mounted
Wire Gauge [Max]	28 AWG	28 AWG
Wire Gauge [Min]	14 AWG	14 AWG

Part	Wire Gauge [Max]	Wire Gauge [Min]	Convert From (Adapter End)	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Mounting Type
WAGO Corporation 857-982	28 AWG	14 AWG	1, 8 Pos	Plug Connection, Terminal Block	2 Rows, 14 Pos	Male Pins, Rectangular Connector	Board Mounted
WAGO Corporation 857-986	28 AWG	14 AWG	1, 8 Pos	Plug Connection, Terminal Block			Board Mounted
WAGO Corporation 857-980			1, 8 Pos	Plug Connection, Terminal Block	2 Rows, 16 Pos	Male Pins, Rectangular Connector	Board Mounted
WAGO Corporation 857-981	28 AWG	14 AWG	1, 8 Pos	Plug Connection, Terminal Block	2 Rows, 14 Pos	Male Pins, Rectangular Connector	Board Mounted
