214-3339-00-0602J
Active3M

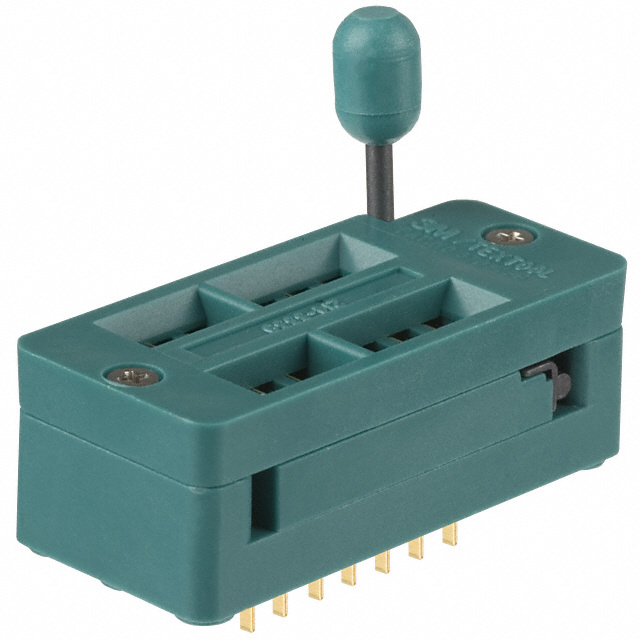

CONN IC DIP SOCKET ZIF 14POS GLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
214-3339-00-0602J
Active3M
CONN IC DIP SOCKET ZIF 14POS GLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 214-3339-00-0602J | 214 Series |
|---|---|---|
| Adhesive | - | Rubber |
| Backing, Carrier | - | Crepe Paper |
| Color | - | Tan |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 30 µin | 30 µin |
| Contact Finish Thickness - Post | 0.76 µm | 0.76 µm |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper |
| Contact Material - Post | Beryllium Copper | Beryllium Copper |
| Contact Resistance | 25 mOhm | 25 mOhm |
| Current Rating (Amps) | 1 A | 1 A |
| Features | Closed Frame | Closed Frame |
| Housing Material | Polysulfone (PSU), Glass Filled | Polysulfone (PSU), Glass Filled, Polyethersulfone (PES), Glass Filled |
| Length | - | 60 yds |
| Length | - | 55 m |
| Length | - | 180 ft |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Connector | Connector, Through Hole |
| Number of Positions or Pins (Grid) | 14 | 14 |
| Operating Temperature [Max] | 125 °C | 125 - 150 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Pitch - Post | 2.54 mm | 2.54 mm |
| Pitch - Post | 0.1 in | 0.1 in |
| Shelf Life | - | 12 Months |
| Shelf Life Start | - | Date of Manufacture |
| Storage/Refrigeration Temperature | - | 16 - 60 °F |
| Storage/Refrigeration Temperature | - | 27 - 80 °F |
| Tape Type | - | Masking |
| Termination | Press-Fit | Press-Fit, Solder |
| Termination Post Length | 0.11 in | 0.11 - 0.14 in |
| Termination Post Length | 2.78 mm | 2.78 - 3.56 mm |
| Thickness | - | 0.0067 " |
| Thickness | - | 0.17 mm |
| Thickness | - | 6.7 mils |
| Type | 7.62 mm | 7.62 mm |
| Type | 0.3 in | 0.3 in |
| Type | DIP, ZIF (ZIP) | DIP, ZIF (ZIP), SOIC |
| Usage | - | High Temperature Adhesion |
| Width | - | 2 " |
| Width | - | 50.8 mm |
214 Series
CONN IC DIP SOCKET ZIF 14POS GLD
| Part | Termination | Termination Post Length | Termination Post Length | Contact Resistance | Contact Finish - Mating | Contact Finish - Post | Current Rating (Amps) | Housing Material | Contact Material - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Type | Type | Type | Mounting Type | Pitch - Post | Pitch - Post | Contact Material - Mating | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Features | Number of Positions or Pins (Grid) | Usage | Shelf Life Start | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Width [y] | Width [y] | Thickness | Thickness | Thickness | Length | Length | Length | Backing, Carrier | Shelf Life | Color | Adhesive | Tape Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Press-Fit | 0.11 in | 2.78 mm | 25 mOhm | Gold | Gold | 1 A | Polysulfone (PSU), Glass Filled | Beryllium Copper | 30 µin | 0.76 µm | 7.62 mm | 0.3 in | DIP, ZIF (ZIP) | Connector | 2.54 mm | 0.1 in | Beryllium Copper | UL94 V-0 | 30 Áin | 0.76 Ám | 0.1 in | 2.54 mm | -55 °C | 125 °C | Closed Frame | 14 | ||||||||||||||||||
Solder | 0.14 in | 3.56 mm | Gold | Gold | 1 A | Polyethersulfone (PES), Glass Filled | Beryllium Copper | 30 µin | 0.76 µm | SOIC | Through Hole | Beryllium Copper | UL94 V-0 | -55 °C | 150 °C | Closed Frame | 14 | |||||||||||||||||||||||||||
High Temperature Adhesion | Date of Manufacture | 16 °C, 60 °F | 27 °C, 80 °F | 2 " | 50.8 mm | 0.0067 " | 0.17 mm | 6.7 mils | 60 yds | 55 m | 180 ft | Crepe Paper | 12 Months | Tan | Rubber | Masking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 22.83 | |
| 10 | $ 20.00 | |||
| 30 | $ 19.13 | |||
| 50 | $ 18.51 | |||
| 100 | $ 17.90 | |||
| 250 | $ 16.91 | |||
| 500 | $ 16.42 | |||
Description
General part information
214 Series
14 (2 x 7) Pos DIP, ZIF (ZIP), 0.3" (7.62mm) Row Spacing Socket Gold Connector
