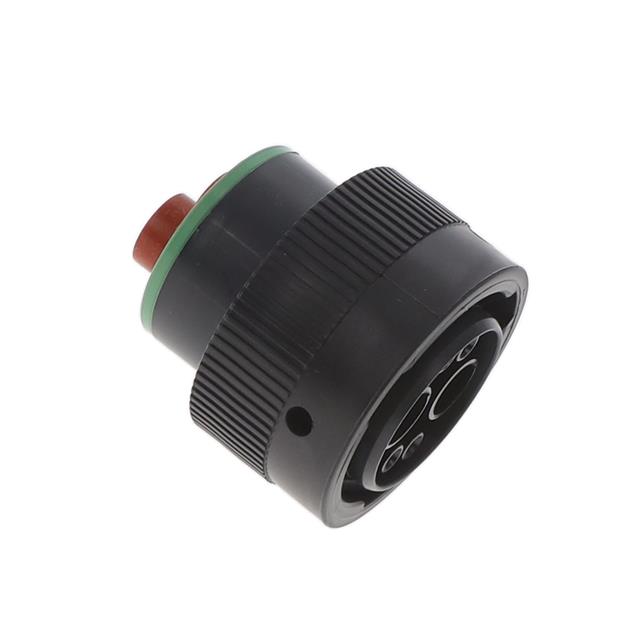

HDP26-18-6SN-C030

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSNG FMALE 2POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHDP Series Spec Sheet Datasheet

HDP26-18-6SN-C030

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSNG FMALE 2POS INLINE

Deep-Dive with AI

DocumentsHDP Series Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDP26-18-6SN-C030

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	4 4
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetherimide (PEI)
Material Flammability Rating	UL94 V-1
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Size - Insert	18-6
Shielding	Unshielded
Type	For Female Sockets

DEUTSCH HD Series

Part	Shielding	Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Housing Color	Insert Material	Shell Material	Contact Size	Contact Size	Fastening Type	Contact Type	Features	Note	Mounting Type	Shell Size - Insert	Ingress Protection	Orientation	Material Flammability Rating	Contact Shape	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions	Shell Size - Insert [Min] [diameter]	Shell Size - Insert [Max] [diameter]
TE Connectivity Raychem Cable Protection HDP26-24-19PE	Unshielded	For Male Pins	19	-55 °C	125 °C	Plug Housing	Black	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	12 16	6 13	Bayonet Lock	Crimp	Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	24-19	IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular
TE Connectivity Raychem Cable Protection HDP26-24-31SE-L024	Unshielded	For Female Sockets	31	-55 °C	125 °C	Plug Housing	Black Blue	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	16		Bayonet Lock	Crimp	Coupling Nut Threading Adapter	Contacts Not Included	Free Hanging (In-Line)		IP68 - Dust Tight Waterproof	Keyed		Circular	31	24
TE Connectivity Raychem Cable Protection HDP26-24-14PN-L017	Unshielded	For Male Pins	14	-55 °C	125 °C	Plug Housing	Black Green	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	4 12 16		Bayonet Lock	Crimp	Coupling Nut Ring Adapter	Contacts Not Included	Free Hanging (In-Line)	24-14	IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular
TE Connectivity Raychem Cable Protection HDP26-24-23PE	Unshielded	For Male Pins	23	-55 °C	125 °C	Plug Housing	Black	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	16		Bayonet Lock	Crimp	Coupling Nut	Contacts Not Included	Free Hanging (In-Line)		IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular	24	23
TE Connectivity Raychem Cable Protection HDP26-18-6SN-C030	Unshielded	For Female Sockets	2	-55 °C	125 °C	Plug Housing	Black	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	4 4		Bayonet Lock	Crimp	Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	18-6	IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular
TE Connectivity Raychem Cable Protection HDP26-24-16SE-L017	Unshielded	For Female Sockets		-55 °C	125 °C	Plug Housing	Black Blue	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	12		Bayonet Lock	Crimp	Coupling Nut Ring Adapter	Contacts Not Included	Free Hanging (In-Line)		IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular	16	24	16
TE Connectivity Raychem Cable Protection HDP26-18-14PN	Unshielded	For Male Pins	14	-55 °C	125 °C	Plug Housing	Black	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	16		Bayonet Lock	Crimp	Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	18-14	IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular
TE Connectivity Raychem Cable Protection HDP26-18-6SN	Unshielded	For Female Sockets	6	-55 °C	125 °C	Plug Housing	Black	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	2 4 4 16		Bayonet Lock	Crimp	Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	18-6	IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular
TE Connectivity Raychem Cable Protection HDP26-18-21PN	Unshielded	For Male Pins	21	-55 °C	125 °C	Plug Housing	Black	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	20		Bayonet Lock	Crimp	Coupling Nut	Contacts Not Included	Free Hanging (In-Line)		IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular	21	18
TE Connectivity Raychem Cable Protection HDP26-24-29SE-L015	Unshielded	For Female Sockets	29	-55 °C	125 °C	Plug Housing	Black Blue	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	12 16 20		Bayonet Lock	Crimp	Coupling Nut Threading Adapter	Contacts Not Included	Free Hanging (In-Line)		IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular				24	29

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.07
		10	$ 14.80
		100	$ 12.20

Description

General part information

DEUTSCH HD Series

2 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
