HDP26-24-19PE

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSNG MALE 19POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDP26-24-19PE

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSNG MALE 19POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDP26-24-19PE

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	12, 16
Contact Size	6, 13
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetherimide (PEI)
Material Flammability Rating	UL94 V-1
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Size - Insert	24-19
Shielding	Unshielded
Type	For Male Pins

DEUTSCH HD Series

Part	Shielding	Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Housing Color	Insert Material	Shell Material	Contact Size	Contact Size	Fastening Type	Contact Type	Features	Note	Mounting Type	Shell Size - Insert	Ingress Protection	Orientation	Material Flammability Rating	Contact Shape	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions	Shell Size - Insert [Min] [diameter]	Shell Size - Insert [Max] [diameter]
TE Connectivity Raychem Cable Protection HDP26-24-19PE	Unshielded	For Male Pins	19	-55 °C	125 °C	Plug Housing	Black	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	12 16	6 13	Bayonet Lock	Crimp	Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	24-19	IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular
TE Connectivity Raychem Cable Protection HDP26-24-31SE-L024	Unshielded	For Female Sockets	31	-55 °C	125 °C	Plug Housing	Black Blue	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	16		Bayonet Lock	Crimp	Coupling Nut Threading Adapter	Contacts Not Included	Free Hanging (In-Line)		IP68 - Dust Tight Waterproof	Keyed		Circular	31	24
TE Connectivity Raychem Cable Protection HDP26-24-14PN-L017	Unshielded	For Male Pins	14	-55 °C	125 °C	Plug Housing	Black Green	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	4 12 16		Bayonet Lock	Crimp	Coupling Nut Ring Adapter	Contacts Not Included	Free Hanging (In-Line)	24-14	IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular
TE Connectivity Raychem Cable Protection HDP26-24-23PE	Unshielded	For Male Pins	23	-55 °C	125 °C	Plug Housing	Black	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	16		Bayonet Lock	Crimp	Coupling Nut	Contacts Not Included	Free Hanging (In-Line)		IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular	24	23
TE Connectivity Raychem Cable Protection HDP26-18-6SN-C030	Unshielded	For Female Sockets	2	-55 °C	125 °C	Plug Housing	Black	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	4 4		Bayonet Lock	Crimp	Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	18-6	IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular
TE Connectivity Raychem Cable Protection HDP26-24-16SE-L017	Unshielded	For Female Sockets		-55 °C	125 °C	Plug Housing	Black Blue	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	12		Bayonet Lock	Crimp	Coupling Nut Ring Adapter	Contacts Not Included	Free Hanging (In-Line)		IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular	16	24	16
TE Connectivity Raychem Cable Protection HDP26-18-14PN	Unshielded	For Male Pins	14	-55 °C	125 °C	Plug Housing	Black	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	16		Bayonet Lock	Crimp	Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	18-14	IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular
TE Connectivity Raychem Cable Protection HDP26-18-6SN	Unshielded	For Female Sockets	6	-55 °C	125 °C	Plug Housing	Black	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	2 4 4 16		Bayonet Lock	Crimp	Coupling Nut	Contacts Not Included	Free Hanging (In-Line)	18-6	IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular
TE Connectivity Raychem Cable Protection HDP26-18-21PN	Unshielded	For Male Pins	21	-55 °C	125 °C	Plug Housing	Black	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	20		Bayonet Lock	Crimp	Coupling Nut	Contacts Not Included	Free Hanging (In-Line)		IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular	21	18
TE Connectivity Raychem Cable Protection HDP26-24-29SE-L015	Unshielded	For Female Sockets	29	-55 °C	125 °C	Plug Housing	Black Blue	Polyetherimide (PEI)	Polyamide (PA66) Nylon 6/6 Glass Filled	12 16 20		Bayonet Lock	Crimp	Coupling Nut Threading Adapter	Contacts Not Included	Free Hanging (In-Line)		IP68 - Dust Tight Waterproof	Keyed	UL94 V-1	Circular				24	29

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.57
		10	$ 16.96
		40	$ 15.84
		80	$ 13.98
		280	$ 13.05
		520	$ 12.77

Description

General part information

DEUTSCH HD Series

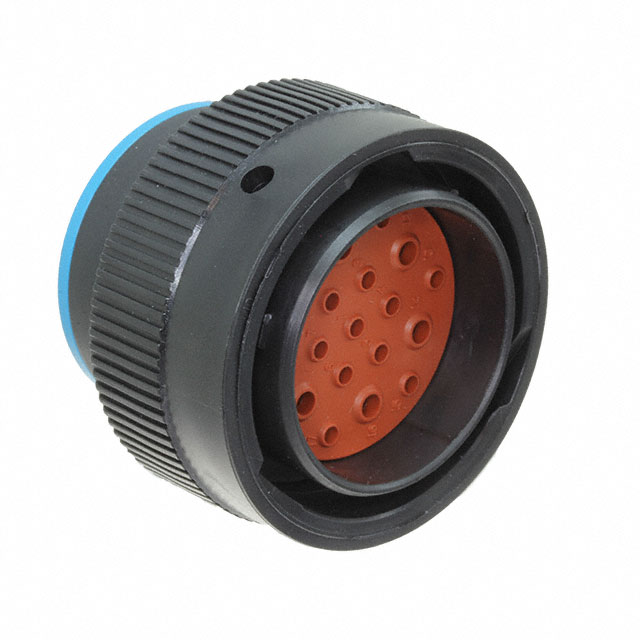

19 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
