HDP26-24-23PE
ActiveTE Connectivity Raychem Cable Protection

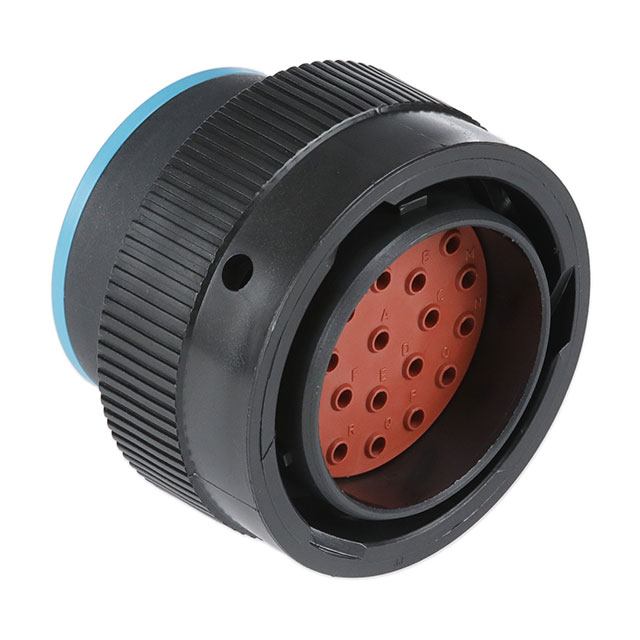

CONN PLUG HSNG MALE 23POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDP26-24-23PE
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG HSNG MALE 23POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDP26-24-23PE |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetherimide (PEI) |
| Material Flammability Rating | UL94 V-1 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 23 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Size - Insert [Max] | 24 |
| Shell Size - Insert [Min] | 23 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.41 | |
| 10 | $ 18.04 | |||
| 40 | $ 15.54 | |||
| 80 | $ 14.46 | |||
| 120 | $ 13.87 | |||
| 280 | $ 12.76 | |||
| 520 | $ 12.02 | |||
Description
General part information
DEUTSCH HD Series
23 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
