627W13W3322-3NA

Active

EDAC Inc.

D-SUB MIXED CONTACT CONNECTORS VERTICAL WATERPROOF POWER COMBO D-SUB CONNECTOR

Description Specifications Series Pricing CAD Documents

Description

General part information

627W13W Series

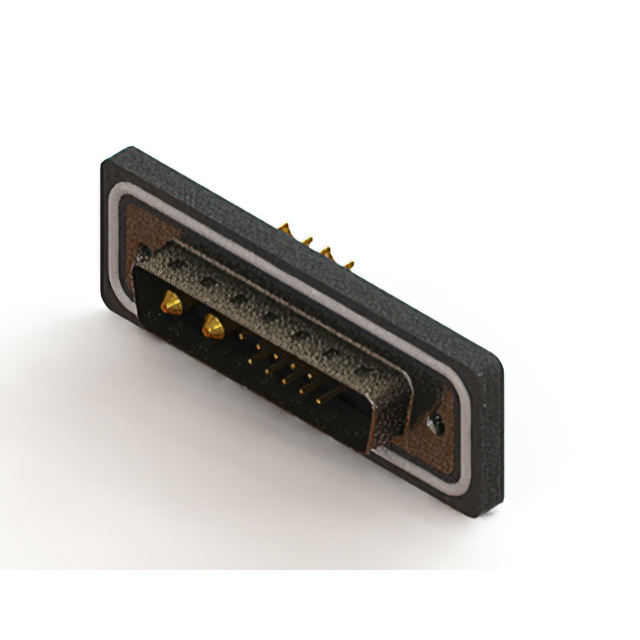

13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	627W13W3322-3NA

Color	Black
Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	30A, 5A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Features	Shielded, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (M3), Housing
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions (Normal)	10
Number of Positions (Power)	3
Number of Positions (Total)	13
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Part Code	13C3, 13W3
Shell Material	Steel
Shell Size	3
Termination	Solder Cup
Voltage Rating	125 V

627W13W Series

Part	Shell Material	Finish	Shell Size	Connector Layout	Part Code	Ingress Protection Description	Ingress Protection IP Rating	Contact Type	Number of Rows	Current Rating Options	Contact Finish	Connector Type	Contact Finish Thickness	Termination	Number of Positions (Power)	Number of Positions (Total)	Number of Positions (Normal)	Mounting Type	Flange Feature	Connector Style	Features	Material Flammability Rating	Contact Material	Voltage Rating	Color	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 627W13W3324-3NA	Steel	Nickel Plated	3	B DB	13C3 13W3	Dust Tight Waterproof	IP67	Power Signal	2	30A 5A	Gold	Male Pins Plug	15 µin	Solder	3	13	10	Panel Mount Through Hole	Housing Shell (M3)	Combo D-Sub	Grounding Indents Shielded	UL94 V-0	Copper Alloy	125 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	85 °C	-25 °C
EDAC Inc. 627W13W3124-1N5	Steel	Nickel Plated	3	B DB	13C3 13W3	Dust Tight Waterproof	IP67	Power Signal	2	10A 5A	Gold	Male Pins Plug	5 µin	Solder	3	13	10	Panel Mount Through Hole	Board Side (4-40)	Combo D-Sub	Board Lock Grounding Indents Shielded	UL94 V-0	Copper Alloy	125 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	85 °C	-25 °C
EDAC Inc. 627W13W3224-2N2	Steel	Nickel Plated	3	B DB	13C3 13W3	Dust Tight Waterproof	IP67	Power Signal	2	20A 5A	Gold	Male Pins Plug	0	Solder	3	13	10	Panel Mount Through Hole	Housing Shell (4-40)	Combo D-Sub	Grounding Indents Shielded	UL94 V-0	Copper Alloy	125 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	85 °C	-25 °C	Flash	Flash
EDAC Inc. 627W13W3622-3N2	Steel	Nickel Plated	3	B DB	13C3 13W3	Dust Tight Waterproof	IP67	Power Signal	2	30A 5A	Gold	Male Pins Plug	30 µin	Solder Cup	3	13	10	Panel Mount Through Hole	Housing Shell (4-40)	Combo D-Sub	Grounding Indents Shielded	UL94 V-0	Copper Alloy	125 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	85 °C	-25 °C
EDAC Inc. 627W13W3322-4N2	Steel	Nickel Plated	3	B DB	13C3 13W3	Dust Tight Waterproof	IP67	Power Signal	2	40A 5A	Gold	Male Pins Plug	15 µin	Solder Cup	3	13	10	Panel Mount Through Hole	Housing Shell (4-40)	Combo D-Sub	Grounding Indents Shielded	UL94 V-0	Copper Alloy	125 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	85 °C	-25 °C
EDAC Inc. 627W13W3224-4ND	Steel	Nickel Plated	3	B DB	13C3 13W3	Dust Tight Waterproof	IP67	Power Signal	2	40A 5A	Gold	Male Pins Plug	0	Solder	3	13	10	Panel Mount Through Hole	Board Side (M3)	Combo D-Sub	Board Lock Grounding Indents Shielded	UL94 V-0	Copper Alloy	125 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	85 °C	-25 °C	Flash	Flash
EDAC Inc. 627W13W3124-3N5	Steel	Nickel Plated	3	B DB	13C3 13W3	Dust Tight Waterproof	IP67	Power Signal	2	30A 5A	Gold	Male Pins Plug	5 µin	Solder	3	13	10	Panel Mount Through Hole	Board Side (4-40)	Combo D-Sub	Board Lock Grounding Indents Shielded	UL94 V-0	Copper Alloy	125 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	85 °C	-25 °C
EDAC Inc. 627W13W3622-3NA	Steel	Nickel Plated	3	B DB	13C3 13W3	Dust Tight Waterproof	IP67	Power Signal	2	30A 5A	Gold	Male Pins Plug	30 µin	Solder Cup	3	13	10	Panel Mount Through Hole	Housing Shell (M3)	Combo D-Sub	Grounding Indents Shielded	UL94 V-0	Copper Alloy	125 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	85 °C	-25 °C
EDAC Inc. 627W13W3322-3NA	Steel	Nickel Plated	3	B DB	13C3 13W3	Dust Tight Waterproof	IP67	Power Signal	2	30A 5A	Gold	Male Pins Plug	15 µin	Solder Cup	3	13	10	Panel Mount Through Hole	Housing Shell (M3)	Combo D-Sub	Grounding Indents Shielded	UL94 V-0	Copper Alloy	125 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	85 °C	-25 °C
EDAC Inc. 627W13W3124-3NA	Steel	Nickel Plated	3	B DB	13C3 13W3	Dust Tight Waterproof	IP67	Power Signal	2	30A 5A	Gold	Male Pins Plug	5 µin	Solder	3	13	10	Panel Mount Through Hole	Housing Shell (M3)	Combo D-Sub	Grounding Indents Shielded	UL94 V-0	Copper Alloy	125 V	Black	Glass Filled Polybutylene Terephthalate (PBT)	85 °C	-25 °C
