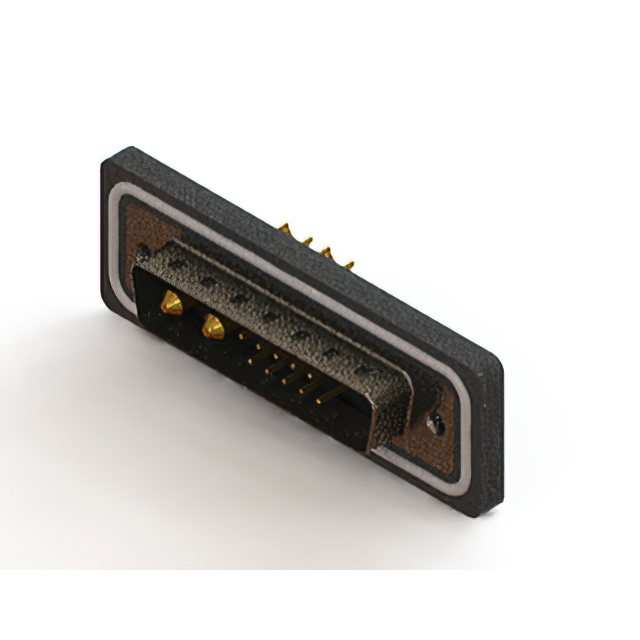

627W13W3622-3NA
ActiveEDAC Inc.
CONN D-SUB PLUG 13P PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
627W13W3622-3NA
ActiveEDAC Inc.
CONN D-SUB PLUG 13P PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 627W13W3622-3NA |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 30 A, 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (M3) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 10 |
| Number of Positions [custom] | 3 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 13W3, 13C3, B, DB |
| Shell Size, Connector Layout | 3 |
| Voltage Rating | 125 VDC |
627W13W Series
| Part | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Connector Style | Material Flammability Rating | Color | Contact Material | Shell Material, Finish | Ingress Protection | Shell Size, Connector Layout | Shell Size, Connector Layout | Features | Flange Feature | Contact Type | Dielectric Material | Current Rating (Amps) | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Mounting Type | Number of Positions [custom] | Number of Positions [custom] | Termination | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 125 VDC | 15 µin | 0.38 µm | 2 | Combo D-Sub | UL94 V-0 | Black | Copper Alloy | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 13C3 13W3 B DB | 3 | Grounding Indents Shielded | Housing/Shell (M3) | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | 5 A 30 A | Male Pins Plug | -25 °C | 85 °C | Gold | Panel Mount Through Hole | 10 | 3 | Solder | |
EDAC Inc. | 125 VDC | 2 | Combo D-Sub | UL94 V-0 | Black | Copper Alloy | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 13C3 13W3 B DB | 3 | Grounding Indents Shielded | Housing/Shell (4-40) | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | 5 A 20 A | Male Pins Plug | -25 °C | 85 °C | Gold | Panel Mount Through Hole | 10 | 3 | Solder | Flash | ||
EDAC Inc. | 125 VDC | 30 Áin | 0.76 Ám | 2 | Combo D-Sub | UL94 V-0 | Black | Copper Alloy | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 13C3 13W3 B DB | 3 | Grounding Indents Shielded | Housing/Shell (4-40) | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | 5 A 30 A | Male Pins Plug | -25 °C | 85 °C | Gold | Panel Mount Through Hole | 10 | 3 | ||
EDAC Inc. | 125 VDC | 15 µin | 0.38 µm | 2 | Combo D-Sub | UL94 V-0 | Black | Copper Alloy | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 13C3 13W3 B DB | 3 | Grounding Indents Shielded | Housing/Shell (4-40) | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | 5 A 40 A | Male Pins Plug | -25 °C | 85 °C | Gold | Panel Mount Through Hole | 10 | 3 | ||
EDAC Inc. | 125 VDC | 2 | Combo D-Sub | UL94 V-0 | Black | Copper Alloy | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 13C3 13W3 B DB | 3 | Board Lock Grounding Indents Shielded | Board Side (M3) | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | 5 A 40 A | Male Pins Plug | -25 °C | 85 °C | Gold | Panel Mount Through Hole | 10 | 3 | Solder | Flash | ||
EDAC Inc. | 125 VDC | 5 µin | 0.127 µm | 2 | Combo D-Sub | UL94 V-0 | Black | Copper Alloy | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 13C3 13W3 B DB | 3 | Board Lock Grounding Indents Shielded | 4-40 Board Side | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | 5 A 30 A | Male Pins Plug | -25 °C | 85 °C | Gold | Panel Mount Through Hole | 10 | 3 | Solder | |
EDAC Inc. | 125 VDC | 30 Áin | 0.76 Ám | 2 | Combo D-Sub | UL94 V-0 | Black | Copper Alloy | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 13C3 13W3 B DB | 3 | Grounding Indents Shielded | Housing/Shell (M3) | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | 5 A 30 A | Male Pins Plug | -25 °C | 85 °C | Gold | Panel Mount Through Hole | 10 | 3 | ||
EDAC Inc. | 125 VDC | 15 µin | 0.38 µm | 2 | Combo D-Sub | UL94 V-0 | Black | Copper Alloy | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 13C3 13W3 B DB | 3 | Grounding Indents Shielded | Housing/Shell (M3) | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | 5 A 30 A | Male Pins Plug | -25 °C | 85 °C | Gold | Panel Mount Through Hole | 10 | 3 | ||
EDAC Inc. | 125 VDC | 5 µin | 0.127 µm | 2 | Combo D-Sub | UL94 V-0 | Black | Copper Alloy | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 13C3 13W3 B DB | 3 | Grounding Indents Shielded | Housing/Shell (M3) | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | 5 A 30 A | Male Pins Plug | -25 °C | 85 °C | Gold | Panel Mount Through Hole | 10 | 3 | Solder | |
EDAC Inc. | 125 VDC | 15 µin | 0.38 µm | 2 | Combo D-Sub | UL94 V-0 | Black | Copper Alloy | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 13C3 13W3 B DB | 3 | Grounding Indents Shielded | Housing/Shell (M3) | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | 5 A 20 A | Male Pins Plug | -25 °C | 85 °C | Gold | Panel Mount Through Hole | 10 | 3 | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 24.62 | |
Description
General part information
627W13W Series
13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
