627W13W3124-3N5

Active

EDAC Inc.

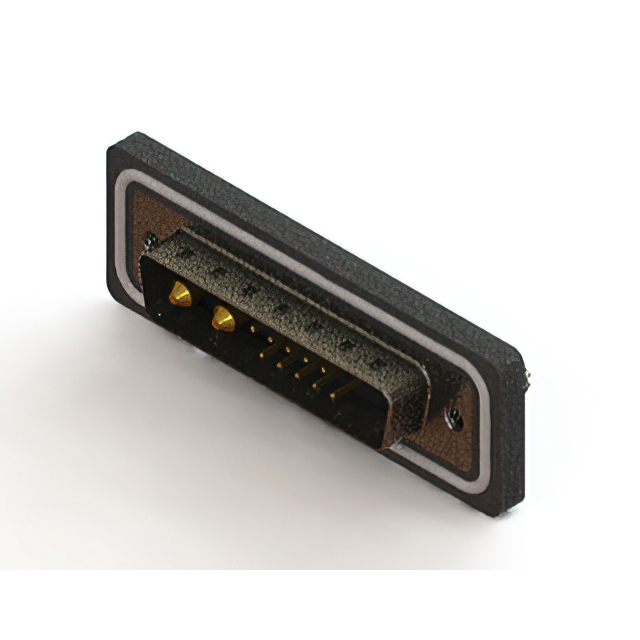

CONN D-SUB PLUG 13P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627W13W3124-3N5

Active

EDAC Inc.

CONN D-SUB PLUG 13P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627W13W3124-3N5

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.127 µm
Contact Finish Thickness	5 µin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Board Side, 4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	125 VDC

627W13W Series

Part	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Style	Material Flammability Rating	Color	Contact Material	Shell Material, Finish	Ingress Protection	Shell Size, Connector Layout	Shell Size, Connector Layout	Features	Flange Feature	Contact Type	Dielectric Material	Current Rating (Amps)	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Termination	Contact Finish Thickness
EDAC Inc. 627W13W3324-3NA	125 VDC	15 µin	0.38 µm	2	Combo D-Sub	UL94 V-0	Black	Copper Alloy	Nickel Plated Steel	IP67 - Dust Tight Waterproof	13C3 13W3 B DB	3	Grounding Indents Shielded	Housing/Shell (M3)	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	5 A 30 A	Male Pins Plug	-25 °C	85 °C	Gold	Panel Mount Through Hole	10	3	Solder
EDAC Inc. 627W13W3224-2N2	125 VDC			2	Combo D-Sub	UL94 V-0	Black	Copper Alloy	Nickel Plated Steel	IP67 - Dust Tight Waterproof	13C3 13W3 B DB	3	Grounding Indents Shielded	Housing/Shell (4-40)	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	5 A 20 A	Male Pins Plug	-25 °C	85 °C	Gold	Panel Mount Through Hole	10	3	Solder	Flash
EDAC Inc. 627W13W3622-3N2	125 VDC	30 Áin	0.76 Ám	2	Combo D-Sub	UL94 V-0	Black	Copper Alloy	Nickel Plated Steel	IP67 - Dust Tight Waterproof	13C3 13W3 B DB	3	Grounding Indents Shielded	Housing/Shell (4-40)	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	5 A 30 A	Male Pins Plug	-25 °C	85 °C	Gold	Panel Mount Through Hole	10	3
EDAC Inc. 627W13W3322-4N2	125 VDC	15 µin	0.38 µm	2	Combo D-Sub	UL94 V-0	Black	Copper Alloy	Nickel Plated Steel	IP67 - Dust Tight Waterproof	13C3 13W3 B DB	3	Grounding Indents Shielded	Housing/Shell (4-40)	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	5 A 40 A	Male Pins Plug	-25 °C	85 °C	Gold	Panel Mount Through Hole	10	3
EDAC Inc. 627W13W3224-4ND	125 VDC			2	Combo D-Sub	UL94 V-0	Black	Copper Alloy	Nickel Plated Steel	IP67 - Dust Tight Waterproof	13C3 13W3 B DB	3	Board Lock Grounding Indents Shielded	Board Side (M3)	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	5 A 40 A	Male Pins Plug	-25 °C	85 °C	Gold	Panel Mount Through Hole	10	3	Solder	Flash
EDAC Inc. 627W13W3124-3N5	125 VDC	5 µin	0.127 µm	2	Combo D-Sub	UL94 V-0	Black	Copper Alloy	Nickel Plated Steel	IP67 - Dust Tight Waterproof	13C3 13W3 B DB	3	Board Lock Grounding Indents Shielded	4-40 Board Side	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	5 A 30 A	Male Pins Plug	-25 °C	85 °C	Gold	Panel Mount Through Hole	10	3	Solder
EDAC Inc. 627W13W3622-3NA	125 VDC	30 Áin	0.76 Ám	2	Combo D-Sub	UL94 V-0	Black	Copper Alloy	Nickel Plated Steel	IP67 - Dust Tight Waterproof	13C3 13W3 B DB	3	Grounding Indents Shielded	Housing/Shell (M3)	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	5 A 30 A	Male Pins Plug	-25 °C	85 °C	Gold	Panel Mount Through Hole	10	3
EDAC Inc. 627W13W3322-3NA	125 VDC	15 µin	0.38 µm	2	Combo D-Sub	UL94 V-0	Black	Copper Alloy	Nickel Plated Steel	IP67 - Dust Tight Waterproof	13C3 13W3 B DB	3	Grounding Indents Shielded	Housing/Shell (M3)	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	5 A 30 A	Male Pins Plug	-25 °C	85 °C	Gold	Panel Mount Through Hole	10	3
EDAC Inc. 627W13W3124-3NA	125 VDC	5 µin	0.127 µm	2	Combo D-Sub	UL94 V-0	Black	Copper Alloy	Nickel Plated Steel	IP67 - Dust Tight Waterproof	13C3 13W3 B DB	3	Grounding Indents Shielded	Housing/Shell (M3)	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	5 A 30 A	Male Pins Plug	-25 °C	85 °C	Gold	Panel Mount Through Hole	10	3	Solder
EDAC Inc. 627W13W3324-2NA	125 VDC	15 µin	0.38 µm	2	Combo D-Sub	UL94 V-0	Black	Copper Alloy	Nickel Plated Steel	IP67 - Dust Tight Waterproof	13C3 13W3 B DB	3	Grounding Indents Shielded	Housing/Shell (M3)	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	5 A 20 A	Male Pins Plug	-25 °C	85 °C	Gold	Panel Mount Through Hole	10	3	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 14.67

Description

General part information

627W13W Series

13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
