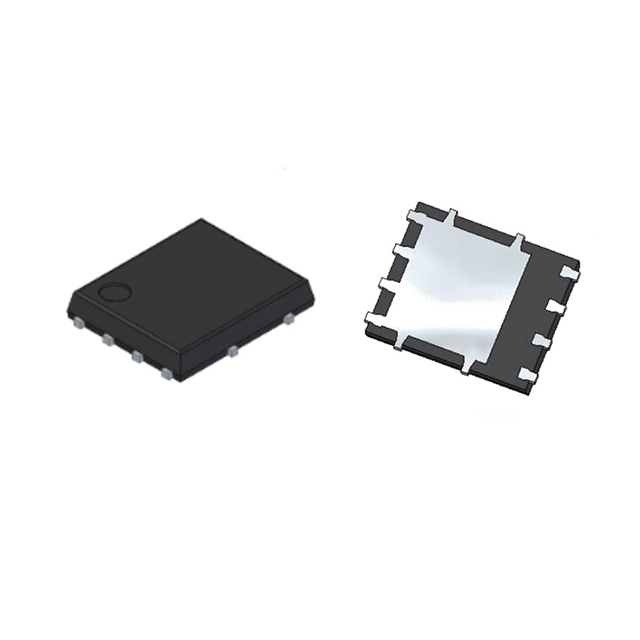

DMNH4005SPSQ-13

Active

Diodes Inc

40V +175°C N-CHANNEL ENHANCEMENT MODE MOSFET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

DMNH4005SPSQ-13

Active

Diodes Inc

40V +175°C N-CHANNEL ENHANCEMENT MODE MOSFET

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DMNH4005SPSQ-13

Drain to Source Voltage (Vdss)	40 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	48 nC
Input Capacitance (Ciss) (Max) @ Vds	2847 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power Dissipation (Max) [Max]	2.8 W
Rds On (Max) @ Id, Vgs	4 mOhm
Supplier Device Package	PowerDI5060-8
Technology	MOSFET (Metal Oxide)
Vgs (Max) [Max]	20 V
Vgs(th) (Max) @ Id	3 V

DMNH4005SPSQ Series

40V +175°C N-Channel Enhancement Mode MOSFET

Part	Vgs(th) (Max) @ Id	Package / Case	FET Type	Mounting Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs	Vgs (Max) [Max]	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Technology	Input Capacitance (Ciss) (Max) @ Vds [Max]	Supplier Device Package	Power Dissipation (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds
Diodes Inc DMNH4005SCTQ	3 V	TO-220-3	N-Channel	Through Hole	48 nC	4 mOhm	20 V	10 V	150 A	MOSFET (Metal Oxide)	2846 pF	TO-220-3	165 W	-55 °C	175 ░C	40 V
Diodes Inc DMNH4005SPSQ-13	3 V	8-PowerTDFN	N-Channel	Surface Mount	48 nC	4 mOhm	20 V	10 V		MOSFET (Metal Oxide)		PowerDI5060-8	2.8 W	-55 °C	175 ░C	40 V	2847 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.21
		10	$ 0.99
		100	$ 0.77
		500	$ 0.65
		1000	$ 0.53
	Digi-Reel®	1	$ 1.21
		10	$ 0.99
		100	$ 0.77
		500	$ 0.65
		1000	$ 0.53
	Tape & Reel (TR)	2500	$ 0.50
		5000	$ 0.47

Description

General part information

DMNH4005SPSQ Series

This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AECQ101, supported by a PPAP and is ideal for use in: engine management systems, body control electronics, and DC-DC converters.
