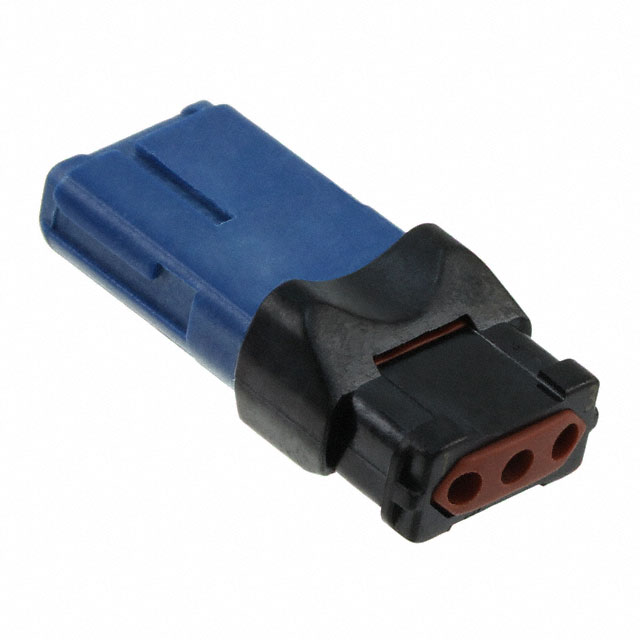

D369-R33-BS0

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 3POS B-KEY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D369-R33-BS0

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 3POS B-KEY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D369-R33-BS0

Color	Black, Blue
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male or Female
Fastening Type	Friction Lock
Features	IP67
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-55 °C

DEUTSCH 369 Series

Part	Wire Gauge [Max]	Wire Gauge [Min]	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Contact Type	Features	Color	Contact Finish	Cable Termination	Mounting Type	Fastening Type	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Color	Insulation Material	Number of Positions Loaded	Termination	Ingress Protection	Contact Shape	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Style	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Applications	Pitch - Mating	Pitch - Mating	Note	Contact Termination	Row Spacing [x]	Row Spacing
TE Connectivity Raychem Cable Protection D369-P33-NS1	28 AWG	22 AWG	1	Plug	2.54 mm	0.1 in	Female Socket	IP65	Black	Gold	Crimp	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection D369-G99-NS4			3	Receptacle			Female Socket	Board Guide Board Lock				Board Edge Right Angle Through Hole	Friction Lock	Phosphor Bronze	9	-55 °C	347 °F	Gold	Black	Polyetherimide Glass Filled	All	Solder	IP67	Circular	0.122 "	3.1 mm	8.4 mm	0.331 in	Board to Cable/Wire
TE Connectivity Raychem Cable Protection D369-B66-NP4			2	Receptacle			Male Pin	Board Guide Sealed				Panel Mount Right Angle Through Hole	Locking Ramp		6	-55 °C	347 °F	Gold	Black	Polyetherimide Glass Filled	All	Solder	IP67	Circular					Board to Cable/Wire	0.055 in	1.4 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	Automotive	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection D369-G33-AP4			1	Receptacle			Male Pin	Board Guide Board Lock Sealed				Through Hole Right Angle	Locking Ramp	Beryllium Copper		-55 °C	347 °F	Gold	Red	Polyetherimide Glass Filled	All	Solder	IP67	Circular			8.4 mm	0.331 in	Board to Cable/Wire	0.059 in	1.5 mm			Shrouded - 4 Wall	Automotive	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection D369-R99-AS0			3	Receptacle			Male or Female	IP67	Black Red			Free Hanging (In-Line)	Friction Lock		9	-55 °C	347 °F			Thermoplastic																		Contacts Not Included	Crimp
TE Connectivity Raychem Cable Protection D369-R33-BS0			1	Receptacle			Male or Female	IP67	Black Blue			Free Hanging (In-Line)	Friction Lock			-55 °C	347 °F			Thermoplastic																		Contacts Not Included	Crimp
TE Connectivity Raychem Cable Protection D369-P99-BP0			3	Plug			Male or Female	IP67	Black Blue			Free Hanging (In-Line)	Friction Lock		9	-55 °C	347 °F			Thermoplastic																		Contacts Not Included	Crimp
TE Connectivity Raychem Cable Protection D369-P33-NP0			1	Plug			Male or Female	IP67	Black			Free Hanging (In-Line)	Friction Lock			-55 °C	347 °F			Thermoplastic																		Contacts Not Included	Crimp
TE Connectivity Raychem Cable Protection D369-P66-NS0			2	Plug			Male or Female	IP67	Black			Free Hanging (In-Line)	Friction Lock		6	-55 °C	347 °F			Thermoplastic																		Contacts Not Included	Crimp
TE Connectivity Raychem Cable Protection D369-R66-NP1	28 AWG	22 AWG	2	Receptacle	2.54 mm	0.1 in	Male Pin	IP65	Black	Gold	Crimp	Free Hanging (In-Line)			6																									0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	140	$ 23.73

Description

General part information

DEUTSCH 369 Series

3 Rectangular Connectors - Housings Receptacle Black, Blue
