D369-G99-NS4

Active

TE Connectivity Raychem Cable Protection

D369 PCB MOUNT ASSY, 9 WAY, SOCK

Deep-Dive with AI

Search across all available documentation for this part.

D369-G99-NS4

Active

TE Connectivity Raychem Cable Protection

D369 PCB MOUNT ASSY, 9 WAY, SOCK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D369-G99-NS4

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Friction Lock
Features	Board Guide, Board Lock
Ingress Protection	IP67
Insulation Color	Black
Insulation Height	8.4 mm
Insulation Height	0.331 in
Insulation Material	Polyetherimide, Glass Filled
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-55 °C
Style	Board to Cable/Wire
Termination	Solder

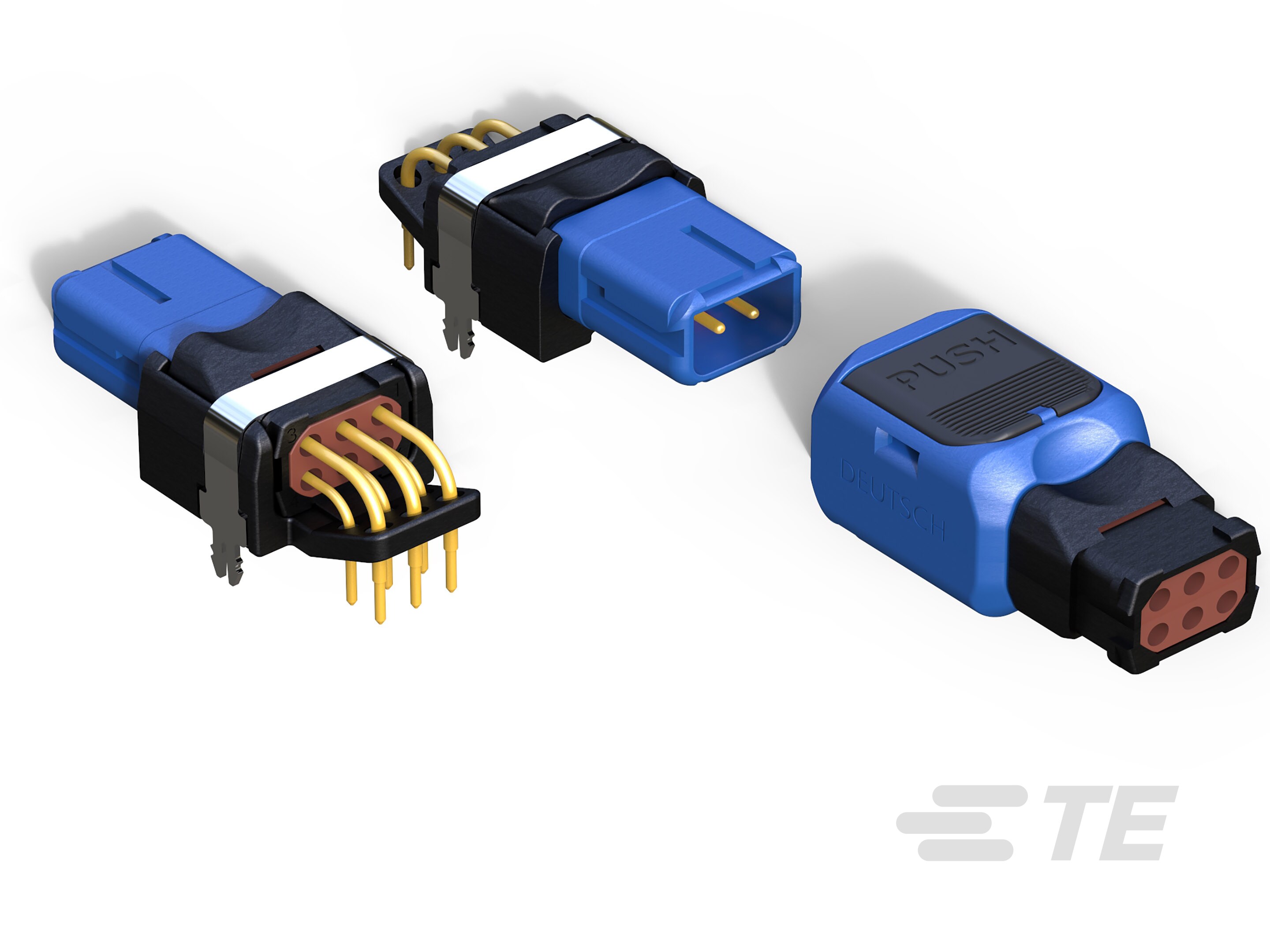

DEUTSCH 369 Series

Part	Wire Gauge [Max]	Wire Gauge [Min]	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Contact Type	Features	Color	Contact Finish	Cable Termination	Mounting Type	Fastening Type	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Color	Insulation Material	Number of Positions Loaded	Termination	Ingress Protection	Contact Shape	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Style	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Applications	Pitch - Mating	Pitch - Mating	Note	Contact Termination	Row Spacing [x]	Row Spacing
TE Connectivity Raychem Cable Protection D369-P33-NS1	28 AWG	22 AWG	1	Plug	2.54 mm	0.1 in	Female Socket	IP65	Black	Gold	Crimp	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection D369-G99-NS4			3	Receptacle			Female Socket	Board Guide Board Lock				Board Edge Right Angle Through Hole	Friction Lock	Phosphor Bronze	9	-55 °C	347 °F	Gold	Black	Polyetherimide Glass Filled	All	Solder	IP67	Circular	0.122 "	3.1 mm	8.4 mm	0.331 in	Board to Cable/Wire
TE Connectivity Raychem Cable Protection D369-B66-NP4			2	Receptacle			Male Pin	Board Guide Sealed				Panel Mount Right Angle Through Hole	Locking Ramp		6	-55 °C	347 °F	Gold	Black	Polyetherimide Glass Filled	All	Solder	IP67	Circular					Board to Cable/Wire	0.055 in	1.4 mm	2.54 mm	0.1 in	Shrouded - 4 Wall	Automotive	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection D369-G33-AP4			1	Receptacle			Male Pin	Board Guide Board Lock Sealed				Through Hole Right Angle	Locking Ramp	Beryllium Copper		-55 °C	347 °F	Gold	Red	Polyetherimide Glass Filled	All	Solder	IP67	Circular			8.4 mm	0.331 in	Board to Cable/Wire	0.059 in	1.5 mm			Shrouded - 4 Wall	Automotive	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection D369-R99-AS0			3	Receptacle			Male or Female	IP67	Black Red			Free Hanging (In-Line)	Friction Lock		9	-55 °C	347 °F			Thermoplastic																		Contacts Not Included	Crimp
TE Connectivity Raychem Cable Protection D369-R33-BS0			1	Receptacle			Male or Female	IP67	Black Blue			Free Hanging (In-Line)	Friction Lock			-55 °C	347 °F			Thermoplastic																		Contacts Not Included	Crimp
TE Connectivity Raychem Cable Protection D369-P99-BP0			3	Plug			Male or Female	IP67	Black Blue			Free Hanging (In-Line)	Friction Lock		9	-55 °C	347 °F			Thermoplastic																		Contacts Not Included	Crimp
TE Connectivity Raychem Cable Protection D369-P33-NP0			1	Plug			Male or Female	IP67	Black			Free Hanging (In-Line)	Friction Lock			-55 °C	347 °F			Thermoplastic																		Contacts Not Included	Crimp
TE Connectivity Raychem Cable Protection D369-P66-NS0			2	Plug			Male or Female	IP67	Black			Free Hanging (In-Line)	Friction Lock		6	-55 °C	347 °F			Thermoplastic																		Contacts Not Included	Crimp
TE Connectivity Raychem Cable Protection D369-R66-NP1	28 AWG	22 AWG	2	Receptacle	2.54 mm	0.1 in	Male Pin	IP65	Black	Gold	Crimp	Free Hanging (In-Line)			6																									0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 59.24

Description

General part information

DEUTSCH 369 Series

9 Position Receptacle Connector Board Edge, Through Hole, Right Angle Gold

Documents

Technical documentation and resources

No documents available
