D369-P33-NS1

Active

TE Connectivity AMP Connectors

369 3 WAY PLUG, CRIMP, SKT

D369-P33-NS1

Active

TE Connectivity AMP Connectors

369 3 WAY PLUG, CRIMP, SKT

Description Specifications Series Pricing CAD Documents

Description

General part information

DEUTSCH 369 Series

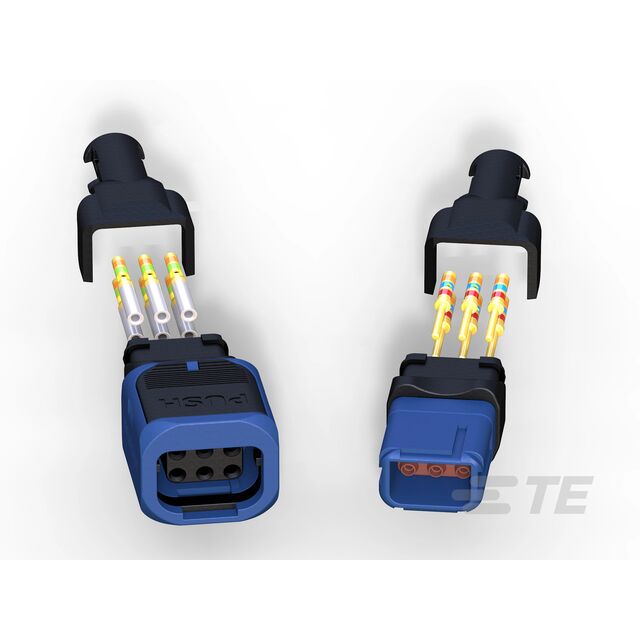

3 Position, Plug, Connector Assembly, Crimp, Wire-to-Wire, Gold (Au), Normal, 2.54 mm [.1 in] Centerline, 1 Row, 400 VAC, Sealable, DEUTSCH 369

Technical Specifications

Parameters and characteristics for this part

Specification	D369-P33-NS1

Cable Termination	Crimp
Color	Black
Connector Type	Plug
Contact Finish	Gold
Contact Type	Female Socket
Features	IP65
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Number of Rows	1
Pitch	0.1 in
Wire Gauge (AWG) (Max)	28 AWG
Wire Gauge (AWG) (Min)	22 AWG

DEUTSCH 369 Series

...

Part	Number of Positions	Fastening Type	Contact Type	Features	Insulation Material	Number of Rows	Mounting Type	Color	Contact Termination	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Number of Positions Loaded	Contact Finish - Mating	Insulation Color	Current Rating	Termination	Voltage Rating (DC)	Voltage Rating (AC)	Style	Material Flammability Rating	Contact Finish - Post	Pitch - Mating	Contact Finish	Pitch	Row Spacing	Wire Type	Cable Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Material	Row Spacing - Mating	Contact Shape	Shrouding
TE Connectivity AMP Connectors D369-R99-NP0	9	Friction Lock	Female Male Male or Female	IP67	Thermoplastic	3	Free Hanging (In-Line)	Black	Crimp	175 °C	-55 °C	Receptacle
TE Connectivity AMP Connectors D369-HR33-NS1	3	Push-Pull	Female Socket			1	Through Hole			175 °C	-55 °C	Receptacle	All	Gold	Black	5 A	Solder	500 VDC	400 VAC	Board Cable/Wire	UL94 V-0	Gold	0.1 in
TE Connectivity AMP Connectors D369-HP99-DP3	9	Push-Pull	Male Pin	Sealed		3	Free Hanging (In-Line)	Yellow				Plug												Gold	0.1 in	0.1 in	Discrete	Crimp	24 AWG	19.5 AWG
TE Connectivity AMP Connectors D369-HP66-AS3	6	Push-Pull	Female Socket	Sealed		2	Free Hanging (In-Line)	Red				Plug												Gold	0.1 in	0.1 in	Discrete	Crimp	24 AWG	19.5 AWG
TE Connectivity AMP Connectors D369-R99-AS0	9	Friction Lock	Female Male Male or Female	IP67	Thermoplastic	3	Free Hanging (In-Line)	Black Red	Crimp	175 °C	-55 °C	Receptacle
TE Connectivity AMP Connectors D369-B99-DP4	9	Push-Pull	Male Pin	Board Guide	Thermoplastic	3	Panel Mount Right Angle Through Hole			175 °C	-55 °C	Header	All	Gold	Yellow	5 A	Solder	500 VDC	400 VAC	Board Cable/Wire		Gold	0.1 in								Phosphor Bronze	0.1 in	Circular	Shrouded - 4 Wall
TE Connectivity AMP Connectors D369-P33-NS1	3		Female Socket	IP65		1	Free Hanging (In-Line)	Black				Plug												Gold	0.1 in			Crimp	28 AWG	22 AWG
TE Connectivity AMP Connectors D369-HR33-CP1	3	Push-Pull	Male Pin	Sealed		1	Free Hanging (In-Line)	Green				Receptacle												Gold	0.1 in		Discrete	Crimp	28 AWG	22 AWG
TE Connectivity AMP Connectors D369-HR66-NP3	6	Push-Pull	Male Pin	Sealed		2	Free Hanging (In-Line)	Black				Receptacle												Gold	0.1 in	0.1 in	Discrete	Crimp	24 AWG	19.5 AWG
TE Connectivity AMP Connectors D369-HP66-CP0	6	Push-Pull	Male Pin	Sealed	Thermoplastic	2	Free Hanging (In-Line)	Green	Crimp	175 °C	-55 °C	Plug													0.1 in	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

D369-P33-NS1 | Datasheet

PRODUCT SPECIFICATION FOR 369 INLINE 'STANDARD' CONNECTORS

Datasheet
