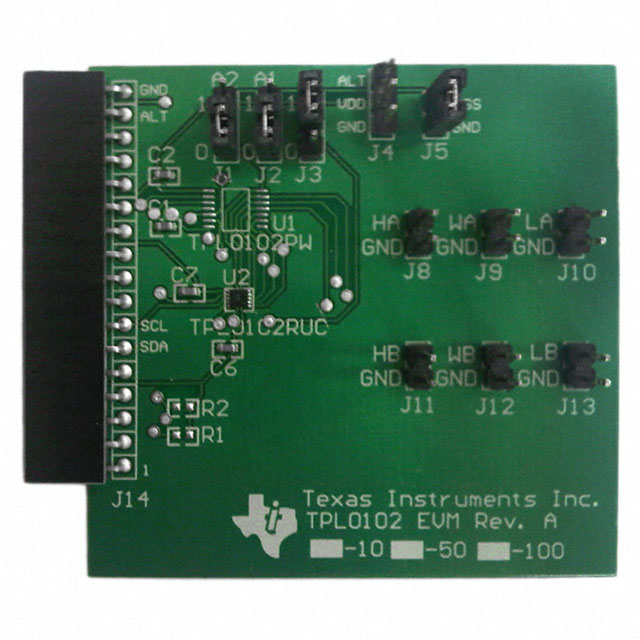

TPL0102EVM
ActiveTexas Instruments
EVAL MODULE FOR TPL0102
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPL0102EVM
ActiveTexas Instruments
EVAL MODULE FOR TPL0102
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPL0102EVM | TPL0102 Series |
|---|---|---|
| Configuration | - | Potentiometer |
| Features | - | Selectable Address |
| Function | Digital Potentiometer | Digital Potentiometer |
| Interface | - | I2C |
| Memory Type | - | Non-Volatile |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 2 |
| Number of Taps | - | 256 |
| Operating Temperature | - | 85 - 125 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 14-TSSOP, 14-XFQFN |
| Package / Case | - | 0.173 in |
| Package / Case | - | 4.4 mm |
| Resistance - Wiper (Ohms) (Typ) | - | 25 Ohms |
| Resistance (Ohms) | - | 100 kOhms |
| Secondary Attributes | I2C Interface(s) | I2C Interface(s) |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 14-TSSOP, 14-QFN (2x2) |
| Taper | - | Linear |
| Temperature Coefficient (Typ) | - | 92 ppm/°C |
| Tolerance | - | 20 % |
| Tolerance | - | -20 % |
| Type | Data Acquisition | Data Acquisition |
| Utilized IC / Part | TPL0102 | TPL0102 |
| Voltage - Supply | - | 2.75 - 5.5 V |
| Voltage - Supply | - | -2.25 - 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPL0102 Series
256-tap dual-channel digital potentiometer (digipot) with nonvolatile memory
| Part | Configuration | Number of Circuits | Features | Taper | Resistance - Wiper (Ohms) (Typ) | Tolerance [Max] | Tolerance [Min] | Mounting Type | Interface | Resistance (Ohms) | Number of Taps [custom] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Memory Type | Package / Case | Package / Case [custom] | Package / Case [custom] | Temperature Coefficient (Typ) | Function | Type | Secondary Attributes | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPL0102-100QPWREPThe TPL0102-EP is a two-channel, linear-taper digital potentiometer with 256 wiper positions. Each potentiometer can be used as a three-terminal potentiometer or as a two-terminal rheostat. The TPL0102-EP-100 has an end-to-end resistance of 100 kΩ.
The TPL0102-EP has non-volatile memory (EEPROM) which can be used to store the wiper position. The internal registers of the TPL0102-EP can be accessed using the I2C interface.
The TPL0102-EP is available in a 14-pin TSSOP package with a specified temperature range of –40°C to 125°C.
The TPL0102-EP is a two-channel, linear-taper digital potentiometer with 256 wiper positions. Each potentiometer can be used as a three-terminal potentiometer or as a two-terminal rheostat. The TPL0102-EP-100 has an end-to-end resistance of 100 kΩ.
The TPL0102-EP has non-volatile memory (EEPROM) which can be used to store the wiper position. The internal registers of the TPL0102-EP can be accessed using the I2C interface.
The TPL0102-EP is available in a 14-pin TSSOP package with a specified temperature range of –40°C to 125°C. | Potentiometer | 2 | Selectable Address | Linear | 25 Ohms | 20 % | -20 % | Surface Mount | I2C | 100 kOhms | 256 | 14-TSSOP | 125 °C | -40 °C | 2.75 V, 5.5 V | -2.25 V, 2.7 V | Non-Volatile | 14-TSSOP | 0.173 in | 4.4 mm | 92 ppm/°C | |||||
Digital Potentiometer | Data Acquisition | I2C Interface(s) | Board(s) | TPL0102 | ||||||||||||||||||||||
Texas Instruments TPL0102-100RUCRThe TPL0102 has two linear-taper digital potentiometers (DPOTs) with 256 wiper positions. Each potentiometer can be used as a three-terminal potentiometer or as a two-terminal rheostat. The TPL0102-100 has an end-to-end resistance of 100 kΩ.
The TPL0102 has non-volatile memory (EEPROM) which can be used to store the wiper position. This is beneficial because the wiper position is stored even during power-off and is automatically reinstated after power-on. The internal registers of the TPL0102 can be accessed using the I2C interface.
The TPL0102 is available in a 14-pin MicroQFN and 14-pin TSSOP package with a specified temperature range of –40°C to 85°C.
The TPL0102 has two linear-taper digital potentiometers (DPOTs) with 256 wiper positions. Each potentiometer can be used as a three-terminal potentiometer or as a two-terminal rheostat. The TPL0102-100 has an end-to-end resistance of 100 kΩ.
The TPL0102 has non-volatile memory (EEPROM) which can be used to store the wiper position. This is beneficial because the wiper position is stored even during power-off and is automatically reinstated after power-on. The internal registers of the TPL0102 can be accessed using the I2C interface.
The TPL0102 is available in a 14-pin MicroQFN and 14-pin TSSOP package with a specified temperature range of –40°C to 85°C. | Potentiometer | 2 | Selectable Address | Linear | 25 Ohms | 20 % | -20 % | Surface Mount | I2C | 100 kOhms | 256 | 14-QFN (2x2) | 85 °C | -40 °C | 2.75 V, 5.5 V | -2.25 V, 2.7 V | Non-Volatile | 14-XFQFN | 92 ppm/°C |
Description
General part information
TPL0102 Series
The TPL0102-EP is a two-channel, linear-taper digital potentiometer with 256 wiper positions. Each potentiometer can be used as a three-terminal potentiometer or as a two-terminal rheostat. The TPL0102-EP-100 has an end-to-end resistance of 100 kΩ.
The TPL0102-EP has non-volatile memory (EEPROM) which can be used to store the wiper position. The internal registers of the TPL0102-EP can be accessed using the I2C interface.
The TPL0102-EP is available in a 14-pin TSSOP package with a specified temperature range of –40°C to 125°C.
