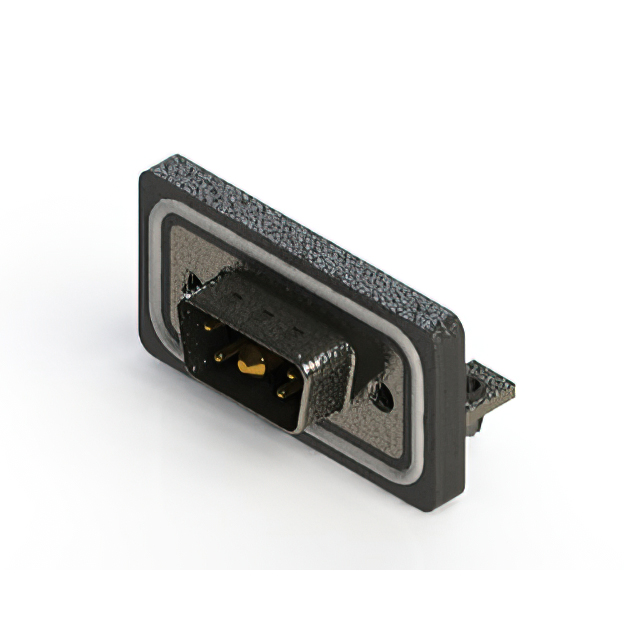

Specification	629W5W1-340-3NB

Color	Black
Connector Layout	E, DE
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	30A, 5A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Features	Mounting Brackets, Filter, Board Lock, Shielded, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (M3), Housing
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions (Normal)	4
Number of Positions (Power)	1
Number of Positions (Total)	5
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	5W1
Shell Material	Steel
Shell Size	1
Termination	Solder
Voltage Rating	125 V

629W5W Series

...

Part	Termination	Flange Feature	Mounting Type	Contact Type	Current Rating	Shell Size	Connector Layout	Part Code	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish Thickness	Number of Rows	Contact Finish	Material Flammability Rating	Connector Type	Features	Number of Positions	Position Types	Connector Style	Shell Material	Finish	Color	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Voltage Rating	Contact Finish Thickness (string set options)	Contact Finish Thickness	Number of Positions (Normal)	Number of Positions (Total)	Number of Positions (Power)	Current Rating Options
EDAC Inc. 629W5W5-340-3N2	Solder	Housing Shell (4-40)	Panel Mount Right Angle Through Hole	Power	30 A	3	B DB	5W5	Dust Tight Waterproof	IP67	15 µin	1	Gold	UL94 V-0	Male Pins Plug	Grounding Indents Shielded	5	Power	Combo D-Sub	Steel	Nickel Plated	Black	Glass Filled Polybutylene Terephthalate (PBT)	125 °C	-55 °C	Copper Alloy	125 V
EDAC Inc. 629W5W5-340-3NB	Solder	Housing Shell (M3)	Panel Mount Right Angle Through Hole	Power	30 A	3	B DB	5W5	Dust Tight Waterproof	IP67	15 µin	1	Gold	UL94 V-0	Male Pins Plug	Board Lock Filter Grounding Indents Mounting Brackets Shielded	5	Power	Combo D-Sub	Steel	Nickel Plated	Black	Glass Filled Polybutylene Terephthalate (PBT)	125 °C	-55 °C	Copper Alloy	125 V
EDAC Inc. 629W5W5-240-2NB	Solder	Housing Shell (M3)	Panel Mount Right Angle Through Hole	Power	20 A	3	B DB	5W5	Dust Tight Waterproof	IP67	0	1	Gold	UL94 V-0	Male Pins Plug	Board Lock Filter Grounding Indents Mounting Brackets Shielded	5	Power	Combo D-Sub	Steel	Nickel Plated	Black	Glass Filled Polybutylene Terephthalate (PBT)	125 °C	-55 °C	Copper Alloy	125 V	Flash	Flash
EDAC Inc. 629W5W5-340-3N4	Solder	Housing Shell (4-40)	Panel Mount Right Angle Through Hole	Power	30 A	3	B DB	5W5	Dust Tight Waterproof	IP67	15 µin	1	Gold	UL94 V-0	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	5	Power	Combo D-Sub	Steel	Nickel Plated	Black	Glass Filled Polybutylene Terephthalate (PBT)	125 °C	-55 °C	Copper Alloy	125 V
EDAC Inc. 629W5W5-340-3N3	Solder	Housing Shell (4-40)	Panel Mount Right Angle Through Hole	Power	30 A	3	B DB	5W5	Dust Tight Waterproof	IP67	15 µin	1	Gold	UL94 V-0	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	5	Power	Combo D-Sub	Steel	Nickel Plated	Black	Glass Filled Polybutylene Terephthalate (PBT)	125 °C	-55 °C	Copper Alloy	125 V
EDAC Inc. 629W5W5-240-4NA	Solder	Housing Shell (M3)	Panel Mount Right Angle Through Hole	Power	40 A	3	B DB	5W5	Dust Tight Waterproof	IP67	0	1	Gold	UL94 V-0	Male Pins Plug	Grounding Indents Shielded	5	Power	Combo D-Sub	Steel	Nickel Plated	Black	Glass Filled Polybutylene Terephthalate (PBT)	125 °C	-55 °C	Copper Alloy	125 V	Flash	Flash
EDAC Inc. 629W5W1-240-1N3	Solder	Housing Shell (4-40)	Panel Mount Right Angle Through Hole	Power Signal		1	DE E	5W1	Dust Tight Waterproof	IP67	0	2	Gold	UL94 V-0	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded			Combo D-Sub	Steel	Nickel Plated	Black	Glass Filled Polybutylene Terephthalate (PBT)	125 °C	-55 °C	Copper Alloy	125 V	Flash	Flash	4	5	1	10A 5A
EDAC Inc. 629W5W1-140-4NA	Solder	Housing Shell (M3)	Panel Mount Right Angle Through Hole	Power Signal		1	DE E	5W1	Dust Tight Waterproof	IP67	5 µin	2	Gold	UL94 V-0	Male Pins Plug	Grounding Indents Shielded			Combo D-Sub	Steel	Nickel Plated	Black	Glass Filled Polybutylene Terephthalate (PBT)	125 °C	-55 °C	Copper Alloy	125 V			4	5	1	40A 5A
EDAC Inc. 629W5W1-340-3NB	Solder	Housing Shell (M3)	Panel Mount Right Angle Through Hole	Power Signal		1	DE E	5W1	Dust Tight Waterproof	IP67	15 µin	2	Gold	UL94 V-0	Male Pins Plug	Board Lock Filter Grounding Indents Mounting Brackets Shielded			Combo D-Sub	Steel	Nickel Plated	Black	Glass Filled Polybutylene Terephthalate (PBT)	125 °C	-55 °C	Copper Alloy	125 V			4	5	1	30A 5A
EDAC Inc. 629W5W1-240-3N2	Solder	Housing Shell (4-40)	Panel Mount Right Angle Through Hole	Power Signal		1	DE E	5W1	Dust Tight Waterproof	IP67	0	2	Gold	UL94 V-0	Male Pins Plug	Grounding Indents Shielded			Combo D-Sub	Steel	Nickel Plated	Black	Glass Filled Polybutylene Terephthalate (PBT)	125 °C	-55 °C	Copper Alloy	125 V	Flash	Flash	4	5	1	30A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

629W5W1-340-3NB | Datasheet
