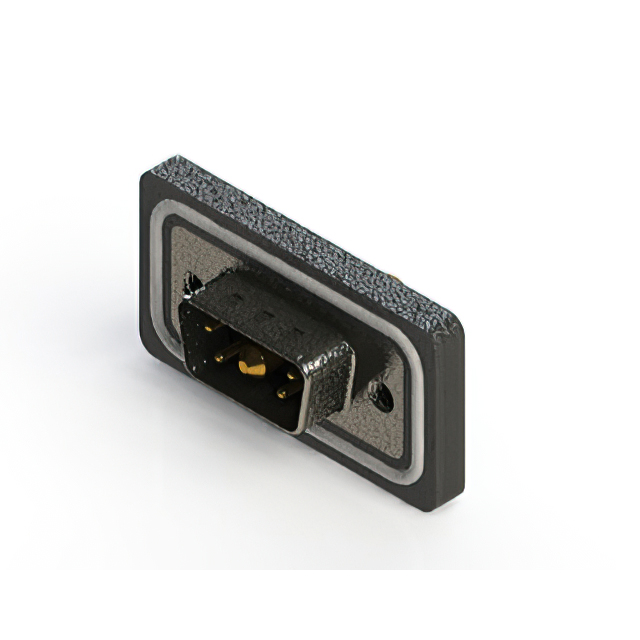

629W5W1-140-4NA
ActiveEDAC Inc.
CONN D-SUB PLUG 5POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629W5W1-140-4NA
ActiveEDAC Inc.
CONN D-SUB PLUG 5POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629W5W1-140-4NA |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.127 µm |
| Contact Finish Thickness | 5 µin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (M3) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 5 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 1 (DE, E) - 5W1 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629W5W Series
...
| Part | Number of Positions [custom] | Shell Material, Finish | Termination | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Connector Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Dielectric Material | Flange Feature | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Ingress Protection | Number of Rows | Material Flammability Rating | Contact Type | Contact Material | Mounting Type | Features | Voltage Rating | Color | Contact Finish Thickness | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 5 | Nickel Plated Steel | Solder | 15 µin | 0.38 µm | Combo D-Sub | Male Pins Plug | 5W5 | 3 | Polybutylene Terephthalate (PBT) Glass Filled | Housing/Shell (4-40) | 30 A | -55 °C | 125 °C | Gold | IP67 - Dust Tight Waterproof | 1 | UL94 V-0 | Power | Copper Alloy | Panel Mount Right Angle Through Hole | Grounding Indents Shielded | 125 VDC | Black | ||
EDAC Inc. | 5 | Nickel Plated Steel | Solder | 15 µin | 0.38 µm | Combo D-Sub | Male Pins Plug | 5W5 | 3 | Polybutylene Terephthalate (PBT) Glass Filled | Housing/Shell (M3) | 30 A | -55 °C | 125 °C | Gold | IP67 - Dust Tight Waterproof | 1 | UL94 V-0 | Power | Copper Alloy | Panel Mount Right Angle Through Hole | Board Lock Filter Grounding Indents Mounting Brackets Shielded | 125 VDC | Black | ||
EDAC Inc. | 5 | Nickel Plated Steel | Solder | Combo D-Sub | Male Pins Plug | 5W5 | 3 | Polybutylene Terephthalate (PBT) Glass Filled | Housing/Shell (M3) | 20 A | -55 °C | 125 °C | Gold | IP67 - Dust Tight Waterproof | 1 | UL94 V-0 | Power | Copper Alloy | Panel Mount Right Angle Through Hole | Board Lock Filter Grounding Indents Mounting Brackets Shielded | 125 VDC | Black | Flash | |||
EDAC Inc. | 5 | Nickel Plated Steel | Solder | 15 µin | 0.38 µm | Combo D-Sub | Male Pins Plug | 5W5 | 3 | Polybutylene Terephthalate (PBT) Glass Filled | Housing/Shell (4-40) | 30 A | -55 °C | 125 °C | Gold | IP67 - Dust Tight Waterproof | 1 | UL94 V-0 | Power | Copper Alloy | Panel Mount Right Angle Through Hole | Grounding Indents Mounting Brackets Shielded | 125 VDC | Black | ||
EDAC Inc. | 5 | Nickel Plated Steel | Solder | 15 µin | 0.38 µm | Combo D-Sub | Male Pins Plug | 5W5 | 3 | Polybutylene Terephthalate (PBT) Glass Filled | Housing/Shell (4-40) | 30 A | -55 °C | 125 °C | Gold | IP67 - Dust Tight Waterproof | 1 | UL94 V-0 | Power | Copper Alloy | Panel Mount Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets Shielded | 125 VDC | Black | ||
EDAC Inc. | 5 | Nickel Plated Steel | Solder | Combo D-Sub | Male Pins Plug | 5W5 | 3 | Polybutylene Terephthalate (PBT) Glass Filled | Housing/Shell (M3) | 40 A | -55 °C | 125 °C | Gold | IP67 - Dust Tight Waterproof | 1 | UL94 V-0 | Power | Copper Alloy | Panel Mount Right Angle Through Hole | Grounding Indents Shielded | 125 VDC | Black | Flash | |||
EDAC Inc. | Nickel Plated Steel | Solder | 5 µin | 0.127 µm | Combo D-Sub | Male Pins Plug | 1 (DE E) - 5W1 | Polybutylene Terephthalate (PBT) Glass Filled | Housing/Shell (M3) | 5 A 40 A | -55 °C | 125 °C | Gold | IP67 - Dust Tight Waterproof | 2 | UL94 V-0 | Signal and Power | Copper Alloy | Panel Mount Right Angle Through Hole | Grounding Indents Shielded | 125 VDC | Black | 5 | |||
EDAC Inc. | Nickel Plated Steel | Solder | 15 µin | 0.38 µm | Combo D-Sub | Male Pins Plug | 1 (DE E) - 5W1 | Polybutylene Terephthalate (PBT) Glass Filled | Housing/Shell (M3) | 5 A 30 A | -55 °C | 125 °C | Gold | IP67 - Dust Tight Waterproof | 2 | UL94 V-0 | Signal and Power | Copper Alloy | Panel Mount Right Angle Through Hole | Board Lock Filter Grounding Indents Mounting Brackets Shielded | 125 VDC | Black | 5 | |||
EDAC Inc. | Nickel Plated Steel | Solder | Combo D-Sub | Male Pins Plug | 1 (DE E) - 5W1 | Polybutylene Terephthalate (PBT) Glass Filled | Housing/Shell (4-40) | 5 A 30 A | -55 °C | 125 °C | Gold | IP67 - Dust Tight Waterproof | 2 | UL94 V-0 | Signal and Power | Copper Alloy | Panel Mount Right Angle Through Hole | Grounding Indents Shielded | 125 VDC | Black | Flash | 5 | ||||
EDAC Inc. | 5 | Nickel Plated Steel | Solder | 15 µin | 0.38 µm | Combo D-Sub | Male Pins Plug | 5W5 | 3 | Polybutylene Terephthalate (PBT) Glass Filled | Housing/Shell (M3) | 40 A | -55 °C | 125 °C | Gold | IP67 - Dust Tight Waterproof | 1 | UL94 V-0 | Power | Copper Alloy | Through Hole Right Angle | Grounding Indents Mounting Brackets Shielded | 125 VDC | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 400 | $ 18.69 | |
Description
General part information
629W5W Series
5 (4 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
