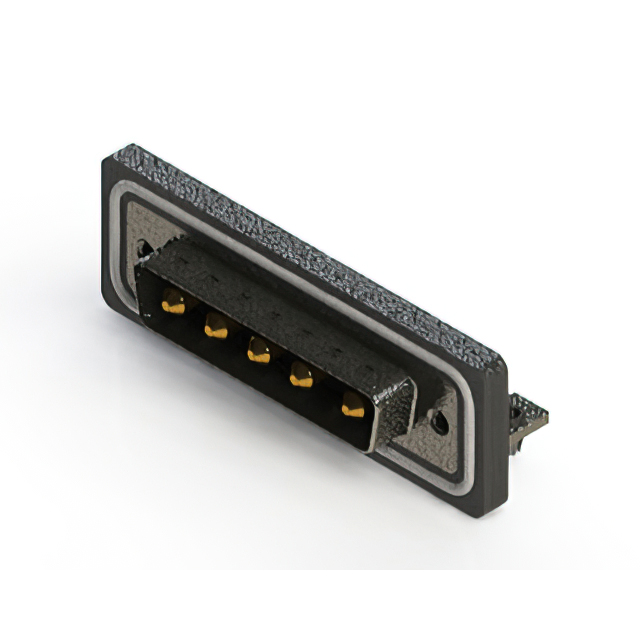

629W5W5-240-2NB

Active

EDAC Inc.

CONN D-SUB PLUG 5POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629W5W5-240-2NB

Active

EDAC Inc.

CONN D-SUB PLUG 5POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629W5W5-240-2NB

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Mounting Brackets, Board Lock, Grounding Indents, Shielded, Filter
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions [custom]	5
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	125 VDC

629W5W Series

...

Part	Number of Positions [custom]	Shell Material, Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Connector Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Dielectric Material	Flange Feature	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Ingress Protection	Number of Rows	Material Flammability Rating	Contact Type	Contact Material	Mounting Type	Features	Voltage Rating	Color	Contact Finish Thickness	Number of Positions
EDAC Inc. 629W5W5-340-3N2	5	Nickel Plated Steel	Solder	15 µin	0.38 µm	Combo D-Sub	Male Pins Plug	5W5	3	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	30 A	-55 °C	125 °C	Gold	IP67 - Dust Tight Waterproof	1	UL94 V-0	Power	Copper Alloy	Panel Mount Right Angle Through Hole	Grounding Indents Shielded	125 VDC	Black
EDAC Inc. 629W5W5-340-3NB	5	Nickel Plated Steel	Solder	15 µin	0.38 µm	Combo D-Sub	Male Pins Plug	5W5	3	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (M3)	30 A	-55 °C	125 °C	Gold	IP67 - Dust Tight Waterproof	1	UL94 V-0	Power	Copper Alloy	Panel Mount Right Angle Through Hole	Board Lock Filter Grounding Indents Mounting Brackets Shielded	125 VDC	Black
EDAC Inc. 629W5W5-240-2NB	5	Nickel Plated Steel	Solder			Combo D-Sub	Male Pins Plug	5W5	3	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (M3)	20 A	-55 °C	125 °C	Gold	IP67 - Dust Tight Waterproof	1	UL94 V-0	Power	Copper Alloy	Panel Mount Right Angle Through Hole	Board Lock Filter Grounding Indents Mounting Brackets Shielded	125 VDC	Black	Flash
EDAC Inc. 629W5W5-340-3N4	5	Nickel Plated Steel	Solder	15 µin	0.38 µm	Combo D-Sub	Male Pins Plug	5W5	3	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	30 A	-55 °C	125 °C	Gold	IP67 - Dust Tight Waterproof	1	UL94 V-0	Power	Copper Alloy	Panel Mount Right Angle Through Hole	Grounding Indents Mounting Brackets Shielded	125 VDC	Black
EDAC Inc. 629W5W5-340-3N3	5	Nickel Plated Steel	Solder	15 µin	0.38 µm	Combo D-Sub	Male Pins Plug	5W5	3	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	30 A	-55 °C	125 °C	Gold	IP67 - Dust Tight Waterproof	1	UL94 V-0	Power	Copper Alloy	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	125 VDC	Black
EDAC Inc. 629W5W5-240-4NA	5	Nickel Plated Steel	Solder			Combo D-Sub	Male Pins Plug	5W5	3	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (M3)	40 A	-55 °C	125 °C	Gold	IP67 - Dust Tight Waterproof	1	UL94 V-0	Power	Copper Alloy	Panel Mount Right Angle Through Hole	Grounding Indents Shielded	125 VDC	Black	Flash
EDAC Inc. 629W5W1-140-4NA		Nickel Plated Steel	Solder	5 µin	0.127 µm	Combo D-Sub	Male Pins Plug	1 (DE E) - 5W1		Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (M3)	5 A 40 A	-55 °C	125 °C	Gold	IP67 - Dust Tight Waterproof	2	UL94 V-0	Signal and Power	Copper Alloy	Panel Mount Right Angle Through Hole	Grounding Indents Shielded	125 VDC	Black		5
EDAC Inc. 629W5W1-340-3NB		Nickel Plated Steel	Solder	15 µin	0.38 µm	Combo D-Sub	Male Pins Plug	1 (DE E) - 5W1		Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (M3)	5 A 30 A	-55 °C	125 °C	Gold	IP67 - Dust Tight Waterproof	2	UL94 V-0	Signal and Power	Copper Alloy	Panel Mount Right Angle Through Hole	Board Lock Filter Grounding Indents Mounting Brackets Shielded	125 VDC	Black		5
EDAC Inc. 629W5W1-240-3N2		Nickel Plated Steel	Solder			Combo D-Sub	Male Pins Plug	1 (DE E) - 5W1		Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	5 A 30 A	-55 °C	125 °C	Gold	IP67 - Dust Tight Waterproof	2	UL94 V-0	Signal and Power	Copper Alloy	Panel Mount Right Angle Through Hole	Grounding Indents Shielded	125 VDC	Black	Flash	5
EDAC Inc. 629W5W5-340-4NC	5	Nickel Plated Steel	Solder	15 µin	0.38 µm	Combo D-Sub	Male Pins Plug	5W5	3	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (M3)	40 A	-55 °C	125 °C	Gold	IP67 - Dust Tight Waterproof	1	UL94 V-0	Power	Copper Alloy	Through Hole Right Angle	Grounding Indents Mounting Brackets Shielded	125 VDC	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 17.15

Description

General part information

629W5W Series

5 (Power) Position D-Sub, Combo Plug, Male Pins Connector
