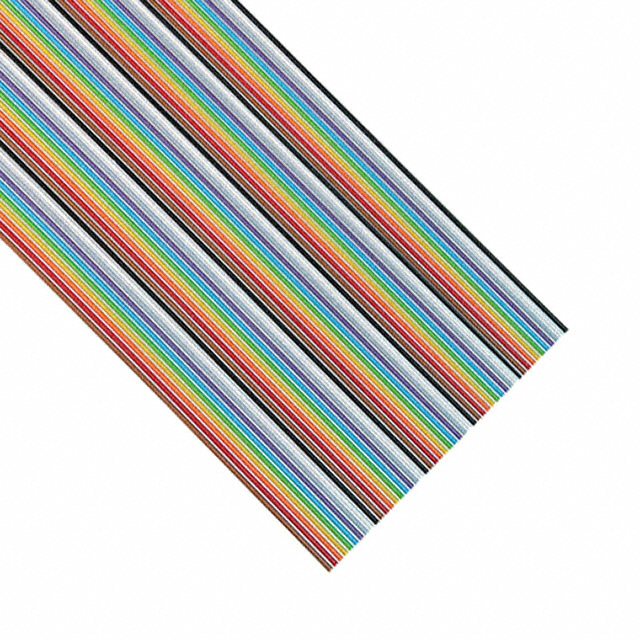

3302/50 100SF

Active

3M (TC)

CBL RIBN 50COND 0.05 MULT FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3302/50 100SF

Active

3M (TC)

CBL RIBN 50COND 0.05 MULT FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3302/50 100SF

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable, Splice Free
Insulation Resistance	1 GOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length	Enter Number of Feet in Order Quantity
Number of Conductors	50
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 20462
Ribbon Thickness	0.042 in
Ribbon Thickness	1.07 mm
Ribbon Width	63.5 mm
Ribbon Width	2.5 "
Shielding	Unshielded
Spool Size	30.48 m
Spool Size	100 ft
Voltage	300 V
Wire Gauge	28 AWG

3302 Series

Part	Features	Ribbon Thickness	Ribbon Thickness	Cable Type	Insulation Resistance	Shielding	Voltage	Ratings	Length	Length	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Width [custom]	Ribbon Width [custom]	Number of Conductors	Jacket Color	Jacket (Insulation) Material	Pitch [x]	Pitch [x]	Conductor Material	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width	Ribbon Width	Ribbon Width	Spool Size	Spool Size	Length
3M (TC) 3302/10 300	Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	1 ft 25 ft	7.62 m 304.8 mm	28 AWG	7	36 AWG	0.5 "	12.7 mm	10	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	100 ft	30.48 m	-20 C	105 ░C
3M (TC) 3302/64 300SF	Splice Free Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	1 ft 50 ft 300 ft	15.24 m 91.44 m 304.8 mm	28 AWG	7	36 AWG			64	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	10 ft	3.05 m	-20 C	105 ░C	81.28 mm	3.2 in
3M (TC) 3302/64 300	Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	300 ft	91.44 m	28 AWG	7	36 AWG			64	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned			-20 C	105 ░C	81.28 mm	3.2 in
3M (TC) 3302/25 100	Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	25 ft 50 ft	7.62 m 15.24 m	28 AWG	7	36 AWG			25	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	10 ft 100 ft	3.05 m 30.48 m	-20 C	105 ░C			1.25 "	31.75 mm
3M (TC) 3302/20 100	Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	1 ft 50 ft	15.24 m 304.8 mm	28 AWG	7	36 AWG			20	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	10 ft	3.05 m	-20 C	105 ░C					1 in	25.4 mm
3M (TC) 3302/37 100	Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462			28 AWG	7	36 AWG			37	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	100 ft	30.48 m	-20 C	105 ░C					46.99 mm		1.85 in
3M (TC) 3302/50 100SF	Splice Free Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462			28 AWG	7	36 AWG			50	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned			-20 C	105 ░C					63.5 mm		2.5 "	30.48 m	100 ft	Enter Number of Feet in Order Quantity
3M (TC) 3302/09 100	Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	1 ft	304.8 mm	28 AWG	7	36 AWG			9	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	10 ft 100 ft	3.05 m 30.48 m	-20 C	105 ░C					11.43 mm		0.45 in
3M (TC) 3302/37 100SF	Splice Free Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462			28 AWG	7	36 AWG			37	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	100 ft	30.48 m	-20 C	105 ░C					46.99 mm		1.85 in
3M (TC) 3302/36 300SF	Splice Free Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	300 ft	91.44 m	28 AWG	7	36 AWG			36	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned			-20 C	105 ░C					45.72 mm		1.8 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 6.49
		2	$ 5.89
		3	$ 5.57
		5	$ 5.18
		7	$ 4.94
		10	$ 4.70
		25	$ 4.13
		50	$ 3.74
		100	$ 3.39

Description

General part information

3302 Series

Flat Ribbon Cable Multiple 50 Conductors 0.050" (1.27mm) Flat Cable Enter Number of Feet in Order Quantity
