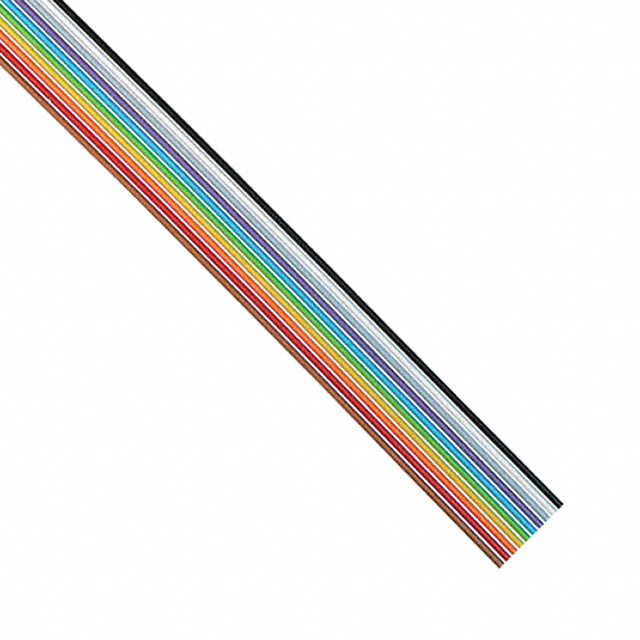

3302/10 300
Active3M (TC)
CBL RIBN 10COND 0.05 MULT 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3302/10 300
Active3M (TC)
CBL RIBN 10COND 0.05 MULT 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3302/10 300 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 36 AWG |
| Features | Zippable |
| Insulation Resistance | 1 GOhms |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Multiple |
| Length | 25 ft, 1 ft |
| Length | 7.62 m, 304.8 mm |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Number of Conductors | 10 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 20462 |
| Ribbon Thickness | 0.042 in |
| Ribbon Thickness | 1.07 mm |
| Ribbon Width [custom] | 0.5 " |
| Ribbon Width [custom] | 12.7 mm |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
3302 Series
| Part | Features | Ribbon Thickness | Ribbon Thickness | Cable Type | Insulation Resistance | Shielding | Voltage | Ratings | Length | Length | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Ribbon Width [custom] | Ribbon Width [custom] | Number of Conductors | Jacket Color | Jacket (Insulation) Material | Pitch [x] | Pitch [x] | Conductor Material | Length [x] | Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Ribbon Width [y] | Ribbon Width [y] | Ribbon Width [x] | Ribbon Width [x] | Ribbon Width | Ribbon Width | Ribbon Width | Spool Size | Spool Size | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Zippable | 0.042 in | 1.07 mm | Flat Cable | 1 GOhms | Unshielded | 300 V | UL Style 20462 | 1 ft 25 ft | 7.62 m 304.8 mm | 28 AWG | 7 | 36 AWG | 0.5 " | 12.7 mm | 10 | Multiple | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Copper Tinned | 100 ft | 30.48 m | -20 C | 105 ░C | ||||||||||
3M (TC) | Splice Free Zippable | 0.042 in | 1.07 mm | Flat Cable | 1 GOhms | Unshielded | 300 V | UL Style 20462 | 1 ft 50 ft 300 ft | 15.24 m 91.44 m 304.8 mm | 28 AWG | 7 | 36 AWG | 64 | Multiple | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Copper Tinned | 10 ft | 3.05 m | -20 C | 105 ░C | 81.28 mm | 3.2 in | ||||||||||
3M (TC) | Zippable | 0.042 in | 1.07 mm | Flat Cable | 1 GOhms | Unshielded | 300 V | UL Style 20462 | 300 ft | 91.44 m | 28 AWG | 7 | 36 AWG | 64 | Multiple | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Copper Tinned | -20 C | 105 ░C | 81.28 mm | 3.2 in | ||||||||||||
3M (TC) | Zippable | 0.042 in | 1.07 mm | Flat Cable | 1 GOhms | Unshielded | 300 V | UL Style 20462 | 25 ft 50 ft | 7.62 m 15.24 m | 28 AWG | 7 | 36 AWG | 25 | Multiple | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Copper Tinned | 10 ft 100 ft | 3.05 m 30.48 m | -20 C | 105 ░C | 1.25 " | 31.75 mm | ||||||||||
3M (TC) | Zippable | 0.042 in | 1.07 mm | Flat Cable | 1 GOhms | Unshielded | 300 V | UL Style 20462 | 1 ft 50 ft | 15.24 m 304.8 mm | 28 AWG | 7 | 36 AWG | 20 | Multiple | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Copper Tinned | 10 ft | 3.05 m | -20 C | 105 ░C | 1 in | 25.4 mm | ||||||||||
3M (TC) | Zippable | 0.042 in | 1.07 mm | Flat Cable | 1 GOhms | Unshielded | 300 V | UL Style 20462 | 28 AWG | 7 | 36 AWG | 37 | Multiple | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Copper Tinned | 100 ft | 30.48 m | -20 C | 105 ░C | 46.99 mm | 1.85 in | ||||||||||||
3M (TC) | Splice Free Zippable | 0.042 in | 1.07 mm | Flat Cable | 1 GOhms | Unshielded | 300 V | UL Style 20462 | 28 AWG | 7 | 36 AWG | 50 | Multiple | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Copper Tinned | -20 C | 105 ░C | 63.5 mm | 2.5 " | 30.48 m | 100 ft | Enter Number of Feet in Order Quantity | |||||||||||
3M (TC) | Zippable | 0.042 in | 1.07 mm | Flat Cable | 1 GOhms | Unshielded | 300 V | UL Style 20462 | 1 ft | 304.8 mm | 28 AWG | 7 | 36 AWG | 9 | Multiple | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Copper Tinned | 10 ft 100 ft | 3.05 m 30.48 m | -20 C | 105 ░C | 11.43 mm | 0.45 in | ||||||||||
3M (TC) | Splice Free Zippable | 0.042 in | 1.07 mm | Flat Cable | 1 GOhms | Unshielded | 300 V | UL Style 20462 | 28 AWG | 7 | 36 AWG | 37 | Multiple | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Copper Tinned | 100 ft | 30.48 m | -20 C | 105 ░C | 46.99 mm | 1.85 in | ||||||||||||
3M (TC) | Splice Free Zippable | 0.042 in | 1.07 mm | Flat Cable | 1 GOhms | Unshielded | 300 V | UL Style 20462 | 300 ft | 91.44 m | 28 AWG | 7 | 36 AWG | 36 | Multiple | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Copper Tinned | -20 C | 105 ░C | 45.72 mm | 1.8 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.00 | |
| 1 | $ 84.04 | |||
| 1 | $ 1.39 | |||
| 1 | $ 6.97 | |||
| 5 | $ 5.54 | |||
| 5 | $ 19.10 | |||
| 5 | $ 67.05 | |||
| 5 | $ 1.11 | |||
| 10 | $ 60.68 | |||
| 10 | $ 17.35 | |||
| 10 | $ 1.01 | |||
| 10 | $ 5.04 | |||
| 25 | $ 53.39 | |||
| 25 | $ 15.21 | |||
| 25 | $ 0.89 | |||
| 25 | $ 4.43 | |||
| 50 | $ 13.83 | |||
| 50 | $ 0.80 | |||
| 50 | $ 4.01 | |||
| 50 | $ 48.24 | |||
| 100 | $ 3.63 | |||
| 100 | $ 0.73 | |||
| 100 | $ 12.53 | |||
| 100 | $ 43.99 | |||
Description
General part information
3302 Series
Flat Ribbon Cable Multiple 10 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
