3302/25 100

Active

3M (TC)

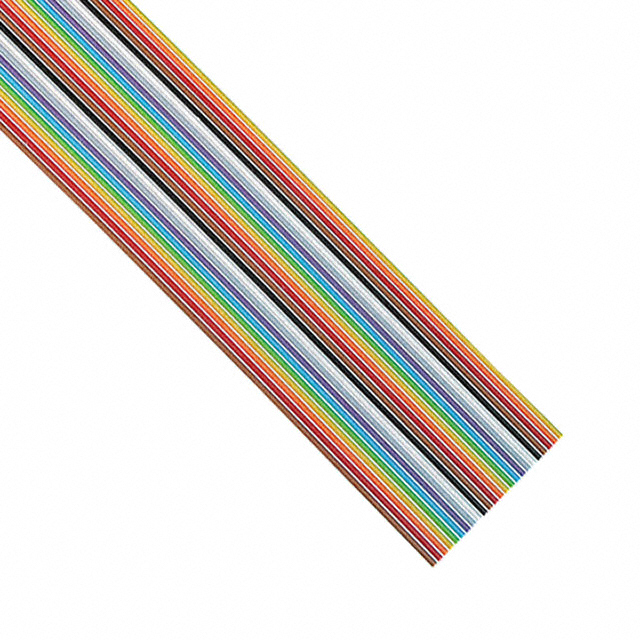

CBL RIBN 25COND 0.05 MULTI 25'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3302/25 100

Active

3M (TC)

CBL RIBN 25COND 0.05 MULTI 25'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3302/25 100

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable
Insulation Resistance	1 GOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length	25 ft, 50 ft
Length	7.62 m, 15.24 m
Length [x]	3.05 m, 30.48 m
Length [x]	10 ft, 100 ft
Number of Conductors	25
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 20462
Ribbon Thickness	0.042 in
Ribbon Thickness	1.07 mm
Ribbon Width [x]	1.25 "
Ribbon Width [x]	31.75 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3302 Series

Part	Features	Ribbon Thickness	Ribbon Thickness	Cable Type	Insulation Resistance	Shielding	Voltage	Ratings	Length	Length	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Width [custom]	Ribbon Width [custom]	Number of Conductors	Jacket Color	Jacket (Insulation) Material	Pitch [x]	Pitch [x]	Conductor Material	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width	Ribbon Width	Ribbon Width	Spool Size	Spool Size	Length
3M (TC) 3302/10 300	Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	1 ft 25 ft	7.62 m 304.8 mm	28 AWG	7	36 AWG	0.5 "	12.7 mm	10	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	100 ft	30.48 m	-20 C	105 ░C
3M (TC) 3302/64 300SF	Splice Free Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	1 ft 50 ft 300 ft	15.24 m 91.44 m 304.8 mm	28 AWG	7	36 AWG			64	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	10 ft	3.05 m	-20 C	105 ░C	81.28 mm	3.2 in
3M (TC) 3302/64 300	Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	300 ft	91.44 m	28 AWG	7	36 AWG			64	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned			-20 C	105 ░C	81.28 mm	3.2 in
3M (TC) 3302/25 100	Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	25 ft 50 ft	7.62 m 15.24 m	28 AWG	7	36 AWG			25	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	10 ft 100 ft	3.05 m 30.48 m	-20 C	105 ░C			1.25 "	31.75 mm
3M (TC) 3302/20 100	Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	1 ft 50 ft	15.24 m 304.8 mm	28 AWG	7	36 AWG			20	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	10 ft	3.05 m	-20 C	105 ░C					1 in	25.4 mm
3M (TC) 3302/37 100	Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462			28 AWG	7	36 AWG			37	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	100 ft	30.48 m	-20 C	105 ░C					46.99 mm		1.85 in
3M (TC) 3302/50 100SF	Splice Free Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462			28 AWG	7	36 AWG			50	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned			-20 C	105 ░C					63.5 mm		2.5 "	30.48 m	100 ft	Enter Number of Feet in Order Quantity
3M (TC) 3302/09 100	Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	1 ft	304.8 mm	28 AWG	7	36 AWG			9	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	10 ft 100 ft	3.05 m 30.48 m	-20 C	105 ░C					11.43 mm		0.45 in
3M (TC) 3302/37 100SF	Splice Free Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462			28 AWG	7	36 AWG			37	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned	100 ft	30.48 m	-20 C	105 ░C					46.99 mm		1.85 in
3M (TC) 3302/36 300SF	Splice Free Zippable	0.042 in	1.07 mm	Flat Cable	1 GOhms	Unshielded	300 V	UL Style 20462	300 ft	91.44 m	28 AWG	7	36 AWG			36	Multiple	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Copper Tinned			-20 C	105 ░C					45.72 mm		1.8 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.47
		1	$ 25.08
		1	$ 110.45
		5	$ 19.97
		5	$ 47.30
		5	$ 88.12
		10	$ 79.75
		10	$ 18.13
		10	$ 42.91
		25	$ 70.18
		25	$ 37.72
		25	$ 15.90
		50	$ 34.13
		50	$ 14.46
		50	$ 63.40
		100	$ 57.82
		100	$ 13.10
		100	$ 30.93
	Spool	1	$ 205.00
		5	$ 162.91
		10	$ 148.10
		25	$ 130.17
		50	$ 117.70

Description

General part information

3302 Series

Flat Ribbon Cable Multiple 25 Conductors 0.050" (1.27mm) Flat Cable 25.0' (7.62m)
