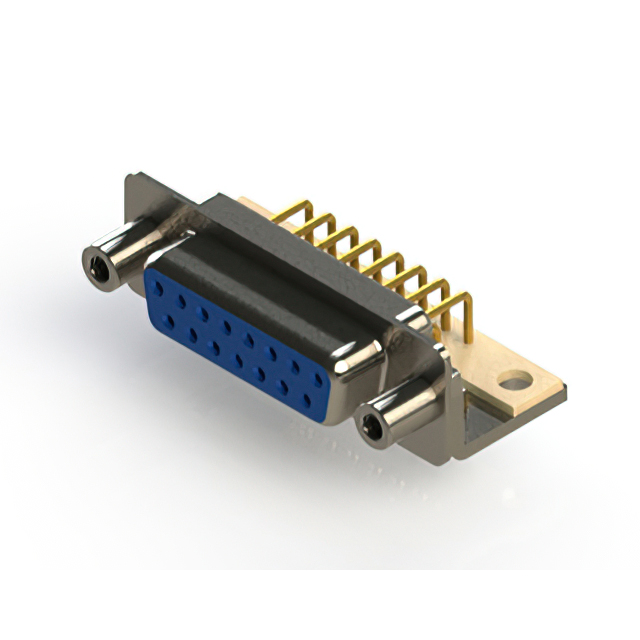

630-M15-340-LN6

Active

EDAC Inc.

630M SERIES RIGHT ANGLE D-SUB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-M15-340-LN6

Active

EDAC Inc.

630M SERIES RIGHT ANGLE D-SUB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-M15-340-LN6

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Blue
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded, Mounting Brackets
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

630-M15 Series

...

Part	Number of Rows	Flange Feature	Features	Contact Material	Number of Positions	Current Rating (Amps)	Connector Type	Termination	Shell Material, Finish	Connector Style	Contact Finish Thickness	Contact Finish	Color	Dielectric Material	Contact Type	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Material Flammability Rating	Backset Spacing	Backset Spacing	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 630-M15-240-BN1	2	Housing/Shell (Unthreaded)	Shielded	Copper Alloy	15	5 A	Receptacle Female Sockets	Solder	Nickel Plated Steel	D-Sub	Flash	Gold	Black	Polyamide (PA6T) Nylon 6T	Signal	2	-55 °C	125 °C	Through Hole Right Angle	UL94 V-0	9.4 mm	0.37 in
EDAC Inc. 630-M15-240-WT2	2	Housing/Shell (Unthreaded)	Shielded	Copper Alloy	15	5 A	Receptacle Female Sockets	Solder		D-Sub	Flash	Gold	White	Polyamide (PA6T) Nylon 6T	Signal	2	-55 °C	125 °C	Through Hole Right Angle	UL94 V-0	9.4 mm	0.37 in
EDAC Inc. 630-M15-240-GN6	2	4-40	Mounting Brackets Shielded	Copper Alloy	15	5 A	Receptacle Female Sockets	Solder	Nickel Plated Steel	D-Sub	Flash	Gold	Green	Polyamide (PA6T) Nylon 6T	Signal	2	-55 °C	125 °C	Through Hole Right Angle	UL94 V-0	9.4 mm	0.37 in
EDAC Inc. 630-M15-240-WT1	2	Housing/Shell (Unthreaded)	Shielded	Copper Alloy	15	5 A	Receptacle Female Sockets	Solder		D-Sub	Flash	Gold	White	Polyamide (PA6T) Nylon 6T	Signal	2	-55 °C	125 °C	Through Hole Right Angle	UL94 V-0	9.4 mm	0.37 in
EDAC Inc. 630-M15-340-GN2	2	Housing/Shell (Unthreaded)	Shielded	Copper Alloy	15	5 A	Receptacle Female Sockets	Solder	Nickel Plated Steel	D-Sub		Gold	Green	Polyamide (PA6T) Nylon 6T	Signal	2	-55 °C	125 °C	Through Hole Right Angle	UL94 V-0	9.4 mm	0.37 in	15 µin	0.38 µm
EDAC Inc. 630-M15-640-LT4	2	Housing/Shell (4-40)	Mounting Brackets Shielded	Copper Alloy	15	5 A	Receptacle Female Sockets	Solder		D-Sub		Gold	Blue	Polyamide (PA6T) Nylon 6T	Signal	2	-55 °C	125 °C	Through Hole Right Angle	UL94 V-0	9.4 mm	0.37 in	30 Áin	0.76 Ám
EDAC Inc. 630-M15-340-WT1	2	Housing/Shell (Unthreaded)	Shielded	Copper Alloy	15	5 A	Receptacle Female Sockets	Solder		D-Sub		Gold	White	Polyamide (PA6T) Nylon 6T	Signal	2	-55 °C	125 °C	Through Hole Right Angle	UL94 V-0	9.4 mm	0.37 in	15 µin	0.38 µm
EDAC Inc. 630-M15-640-GT5	2	4-40	Mounting Brackets Shielded	Copper Alloy	15	5 A	Receptacle Female Sockets	Solder		D-Sub		Gold	Green	Polyamide (PA6T) Nylon 6T	Signal	2	-55 °C	125 °C	Through Hole Right Angle	UL94 V-0	9.4 mm	0.37 in	30 Áin	0.76 Ám
EDAC Inc. 630-M15-340-GN5	2	4-40	Mounting Brackets Shielded	Copper Alloy	15	5 A	Receptacle Female Sockets	Solder	Nickel Plated Steel	D-Sub		Gold	Green	Polyamide (PA6T) Nylon 6T	Signal	2	-55 °C	125 °C	Through Hole Right Angle	UL94 V-0	9.4 mm	0.37 in	15 µin	0.38 µm
EDAC Inc. 630-M15-340-LN6	2	4-40	Mounting Brackets Shielded	Copper Alloy	15	5 A	Receptacle Female Sockets	Solder	Nickel Plated Steel	D-Sub		Gold	Blue	Polyamide (PA6T) Nylon 6T	Signal	2	-55 °C	125 °C	Through Hole Right Angle	UL94 V-0	9.4 mm	0.37 in	15 µin	0.38 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 8.58

Description

General part information

630-M15 Series

15 Position D-Sub Receptacle, Female Sockets Connector
