630-M15-340-GN5

Active

EDAC Inc.

D-SUB STANDARD CONNECTORS RIGHT ANGLE D-SUB CONNECTOR

630-M15-340-GN5

Active

EDAC Inc.

D-SUB STANDARD CONNECTORS RIGHT ANGLE D-SUB CONNECTOR

Description Specifications Series Pricing CAD Documents

Description

General part information

630-M15 Series

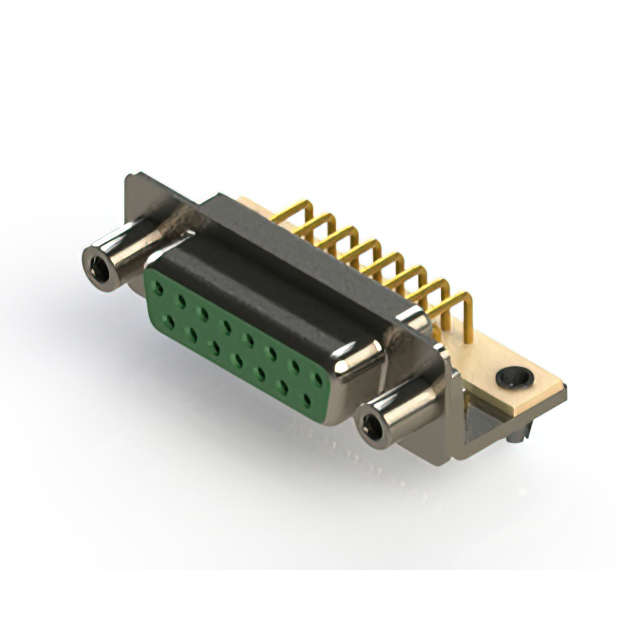

15 Position D-Sub Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	630-M15-340-GN5

Backset Spacing	0.37 in
Color	Green
Connector Layout	A, DA
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Nylon 6T, Polyamide (PA6T)
Features	Shielded, Mounting Brackets
Finish	Nickel Plated
Flange Feature	Mating Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	2
Termination	Solder

630-M15 Series

...

Part	Termination	Connector Type	Number of Positions	Flange Feature	Current Rating	Mounting Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Material Flammability Rating	Contact Type	Connector Style	Shell Size	Connector Layout	Backset Spacing	Contact Finish	Number of Rows	Features	Shell Material	Finish	Operating Temperature (Max)	Operating Temperature (Min)	Color	Contact Form	Dielectric Material	Contact Material
EDAC Inc. 630-M15-240-BN1	Solder	Female Sockets Receptacle	15	Housing Shell (Unthreaded)	5 A	Right Angle Through Hole	0	Flash	Flash	UL94 V-0	Signal	D-Sub	2	A DA	0.37 in	Gold	2	Shielded	Steel	Nickel Plated	125 °C	-55 °C	Black	Machined	Nylon 6T Polyamide (PA6T)	Copper Alloy
EDAC Inc. 630-M15-240-WT2	Solder	Female Sockets Receptacle	15	Housing Shell (Unthreaded)	5 A	Right Angle Through Hole	0	Flash	Flash	UL94 V-0	Signal	D-Sub	2	A DA	0.37 in	Gold	2	Shielded	Steel	Tin Plated	125 °C	-55 °C	White	Machined	Nylon 6T Polyamide (PA6T)	Copper Alloy
EDAC Inc. 630-M15-240-GN6	Solder	Female Sockets Receptacle	15	Mating Side (4-40)	5 A	Right Angle Through Hole	0	Flash	Flash	UL94 V-0	Signal	D-Sub	2	A DA	0.37 in	Gold	2	Mounting Brackets Shielded	Steel	Nickel Plated	125 °C	-55 °C	Green	Machined	Nylon 6T Polyamide (PA6T)	Copper Alloy
EDAC Inc. 630-M15-240-WT1	Solder	Female Sockets Receptacle	15	Housing Shell (Unthreaded)	5 A	Right Angle Through Hole	0	Flash	Flash	UL94 V-0	Signal	D-Sub	2	A DA	0.37 in	Gold	2	Shielded	Steel	Tin Plated	125 °C	-55 °C	White	Machined	Nylon 6T Polyamide (PA6T)	Copper Alloy
EDAC Inc. 630-M15-340-GN2	Solder	Female Sockets Receptacle	15	Housing Shell (Unthreaded)	5 A	Right Angle Through Hole	15 µin			UL94 V-0	Signal	D-Sub	2	A DA	0.37 in	Gold	2	Shielded	Steel	Nickel Plated	125 °C	-55 °C	Green	Machined	Nylon 6T Polyamide (PA6T)	Copper Alloy
EDAC Inc. 630-M15-640-LT4	Solder	Female Sockets Receptacle	15	Housing Shell (4-40)	5 A	Right Angle Through Hole	30 µin			UL94 V-0	Signal	D-Sub	2	A DA	0.37 in	Gold	2	Mounting Brackets Shielded	Steel	Tin Plated	125 °C	-55 °C	Blue	Machined	Nylon 6T Polyamide (PA6T)	Copper Alloy
EDAC Inc. 630-M15-340-WT1	Solder	Female Sockets Receptacle	15	Housing Shell (Unthreaded)	5 A	Right Angle Through Hole	15 µin			UL94 V-0	Signal	D-Sub	2	A DA	0.37 in	Gold	2	Shielded	Steel	Tin Plated	125 °C	-55 °C	White	Machined	Nylon 6T Polyamide (PA6T)	Copper Alloy
EDAC Inc. 630-M15-640-GT5	Solder	Female Sockets Receptacle	15	Mating Side (4-40)	5 A	Right Angle Through Hole	30 µin			UL94 V-0	Signal	D-Sub	2	A DA	0.37 in	Gold	2	Mounting Brackets Shielded	Steel	Tin Plated	125 °C	-55 °C	Green	Machined	Nylon 6T Polyamide (PA6T)	Copper Alloy
EDAC Inc. 630-M15-340-GN5	Solder	Female Sockets Receptacle	15	Mating Side (4-40)	5 A	Right Angle Through Hole	15 µin			UL94 V-0	Signal	D-Sub	2	A DA	0.37 in	Gold	2	Mounting Brackets Shielded	Steel	Nickel Plated	125 °C	-55 °C	Green	Machined	Nylon 6T Polyamide (PA6T)	Copper Alloy
EDAC Inc. 630-M15-340-LN6	Solder	Female Sockets Receptacle	15	Mating Side (4-40)	5 A	Right Angle Through Hole	15 µin			UL94 V-0	Signal	D-Sub	2	A DA	0.37 in	Gold	2	Mounting Brackets Shielded	Steel	Nickel Plated	125 °C	-55 °C	Blue	Machined	Nylon 6T Polyamide (PA6T)	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

630-M15-340-GN5 | Datasheet
