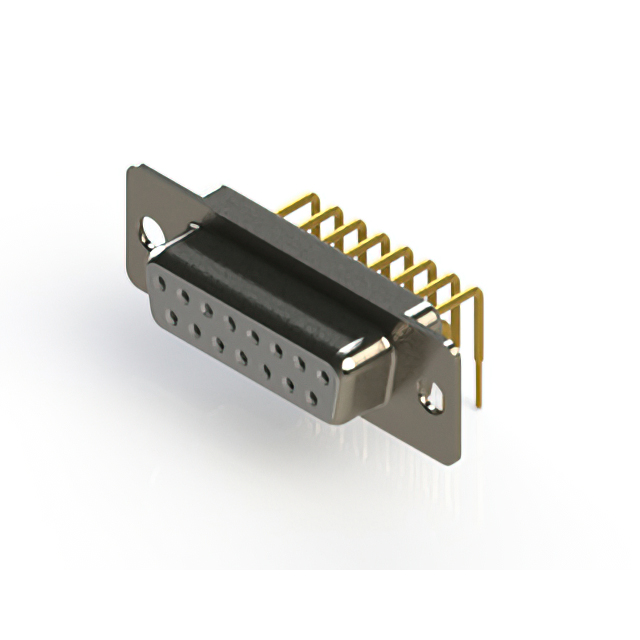

630-M15-240-WT1
ActiveEDAC Inc.
630M SERIES RIGHT ANGLE D-SUB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
630-M15-240-WT1
ActiveEDAC Inc.
630M SERIES RIGHT ANGLE D-SUB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 630-M15-240-WT1 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | White |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
630-M15 Series
...
| Part | Number of Rows | Flange Feature | Features | Contact Material | Number of Positions | Current Rating (Amps) | Connector Type | Termination | Shell Material, Finish | Connector Style | Contact Finish Thickness | Contact Finish | Color | Dielectric Material | Contact Type | Shell Size, Connector Layout | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Material Flammability Rating | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Housing/Shell (Unthreaded) | Shielded | Copper Alloy | 15 | 5 A | Receptacle Female Sockets | Solder | Nickel Plated Steel | D-Sub | Flash | Gold | Black | Polyamide (PA6T) Nylon 6T | Signal | 2 | -55 °C | 125 °C | Through Hole Right Angle | UL94 V-0 | 9.4 mm | 0.37 in | ||
EDAC Inc. | 2 | Housing/Shell (Unthreaded) | Shielded | Copper Alloy | 15 | 5 A | Receptacle Female Sockets | Solder | D-Sub | Flash | Gold | White | Polyamide (PA6T) Nylon 6T | Signal | 2 | -55 °C | 125 °C | Through Hole Right Angle | UL94 V-0 | 9.4 mm | 0.37 in | |||
EDAC Inc. | 2 | 4-40 | Mounting Brackets Shielded | Copper Alloy | 15 | 5 A | Receptacle Female Sockets | Solder | Nickel Plated Steel | D-Sub | Flash | Gold | Green | Polyamide (PA6T) Nylon 6T | Signal | 2 | -55 °C | 125 °C | Through Hole Right Angle | UL94 V-0 | 9.4 mm | 0.37 in | ||
EDAC Inc. | 2 | Housing/Shell (Unthreaded) | Shielded | Copper Alloy | 15 | 5 A | Receptacle Female Sockets | Solder | D-Sub | Flash | Gold | White | Polyamide (PA6T) Nylon 6T | Signal | 2 | -55 °C | 125 °C | Through Hole Right Angle | UL94 V-0 | 9.4 mm | 0.37 in | |||
EDAC Inc. | 2 | Housing/Shell (Unthreaded) | Shielded | Copper Alloy | 15 | 5 A | Receptacle Female Sockets | Solder | Nickel Plated Steel | D-Sub | Gold | Green | Polyamide (PA6T) Nylon 6T | Signal | 2 | -55 °C | 125 °C | Through Hole Right Angle | UL94 V-0 | 9.4 mm | 0.37 in | 15 µin | 0.38 µm | |
EDAC Inc. | 2 | Housing/Shell (4-40) | Mounting Brackets Shielded | Copper Alloy | 15 | 5 A | Receptacle Female Sockets | Solder | D-Sub | Gold | Blue | Polyamide (PA6T) Nylon 6T | Signal | 2 | -55 °C | 125 °C | Through Hole Right Angle | UL94 V-0 | 9.4 mm | 0.37 in | 30 Áin | 0.76 Ám | ||
EDAC Inc. | 2 | Housing/Shell (Unthreaded) | Shielded | Copper Alloy | 15 | 5 A | Receptacle Female Sockets | Solder | D-Sub | Gold | White | Polyamide (PA6T) Nylon 6T | Signal | 2 | -55 °C | 125 °C | Through Hole Right Angle | UL94 V-0 | 9.4 mm | 0.37 in | 15 µin | 0.38 µm | ||
EDAC Inc. | 2 | 4-40 | Mounting Brackets Shielded | Copper Alloy | 15 | 5 A | Receptacle Female Sockets | Solder | D-Sub | Gold | Green | Polyamide (PA6T) Nylon 6T | Signal | 2 | -55 °C | 125 °C | Through Hole Right Angle | UL94 V-0 | 9.4 mm | 0.37 in | 30 Áin | 0.76 Ám | ||
EDAC Inc. | 2 | 4-40 | Mounting Brackets Shielded | Copper Alloy | 15 | 5 A | Receptacle Female Sockets | Solder | Nickel Plated Steel | D-Sub | Gold | Green | Polyamide (PA6T) Nylon 6T | Signal | 2 | -55 °C | 125 °C | Through Hole Right Angle | UL94 V-0 | 9.4 mm | 0.37 in | 15 µin | 0.38 µm | |
EDAC Inc. | 2 | 4-40 | Mounting Brackets Shielded | Copper Alloy | 15 | 5 A | Receptacle Female Sockets | Solder | Nickel Plated Steel | D-Sub | Gold | Blue | Polyamide (PA6T) Nylon 6T | Signal | 2 | -55 °C | 125 °C | Through Hole Right Angle | UL94 V-0 | 9.4 mm | 0.37 in | 15 µin | 0.38 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 3.70 | |
Description
General part information
630-M15 Series
15 Position D-Sub Receptacle, Female Sockets Connector
