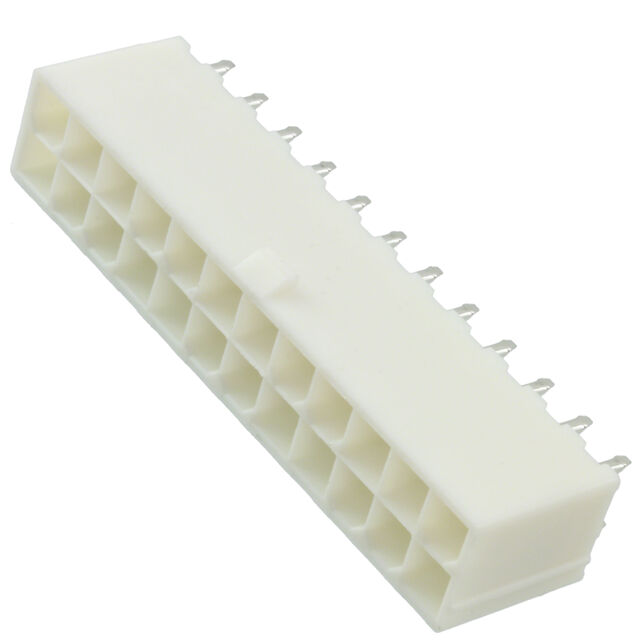

10127820-2422LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 24POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsminitek pwr productpresentation Other Related Document Datasheet +1

10127820-2422LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 24POS 4.2MM

Deep-Dive with AI

Documentsminitek pwr productpresentation Other Related Document Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10127820-2422LF

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.03 µm
Contact Finish Thickness - Mating	80 µin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

10127820 Series

Part	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Shape	Current Rating (Amps)	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Insulation Material	Style	Features	Contact Material	Number of Rows	Termination	Mounting Type	Fastening Type	Contact Type	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Number of Positions
Amphenol ICC (FCI) 10127820-0822GPLF	12.8 mm	0.504 in	All	Square	Varies by Wire Gauge	Natural	2.03 µm	80 µin	600 VAC	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	Board Lock Glow Wire Compliant	Brass	2	Solder	Through Hole	Locking Ramp	Male Pin	3.5 mm	0.138 in	4.2 mm	0.165 in	Header	4.2 mm	0.165 in	UL94 V-0	8	-40 °C	105 ░C	Shrouded - 4 Wall
Amphenol ICC (FCI) 10127820-2022PLF	12.8 mm	0.504 in	All	Square	Varies by Wire Gauge	Natural	2.03 µm	80 µin	600 VAC	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire		Brass	2	Solder	Through Hole	Locking Ramp	Male Pin	3.5 mm	0.138 in	4.2 mm	0.165 in	Header	4.2 mm	0.165 in	UL94 V-0	20	-40 °C	105 ░C	Shrouded - 4 Wall	Tin
Amphenol ICC (FCI) 10127820-0222LF	12.8 mm	0.504 in	All	Square	Varies by Wire Gauge	Natural	2.03 µm	80 µin	600 VAC	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire		Brass	2	Solder	Through Hole	Locking Ramp	Male Pin	3.5 mm	0.138 in			Header	4.2 mm	0.165 in	UL94 V-0	2	-40 °C	105 ░C	Shrouded - 4 Wall	Tin
Amphenol ICC (FCI) 10127820-0622LTLF	12.8 mm	0.504 in	All	Square	Varies by Wire Gauge	Natural	2.03 µm	80 µin	600 VAC	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Glow Wire Compliant	Brass	2	Solder	Through Hole	Locking Ramp	Male Pin	3.5 mm	0.138 in	4.2 mm	0.165 in	Header	4.2 mm	0.165 in	UL94 V-0	6	-40 °C	105 ░C	Shrouded - 4 Wall	Tin
Amphenol ICC (FCI) 10127820-1421GLF	12.8 mm	0.504 in	All	Square	Varies by Wire Gauge	Natural			600 VAC	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	Glow Wire Compliant	Brass	2	Solder	Through Hole	Locking Ramp	Male Pin	3.5 mm	0.138 in	4.2 mm	0.165 in	Header	4.2 mm	0.165 in	UL94 V-0	14	-40 °C	105 ░C	Shrouded - 4 Wall		Gold	Flash
Amphenol ICC (FCI) 10127820-1821GLF	12.8 mm	0.504 in	All	Square	Varies by Wire Gauge	Natural			600 VAC	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	Glow Wire Compliant	Brass	2	Solder	Through Hole	Locking Ramp	Male Pin	3.5 mm	0.138 in	4.2 mm	0.165 in	Header	4.2 mm	0.165 in	UL94 V-0	18	-40 °C	105 ░C	Shrouded - 4 Wall		Gold	Flash
Amphenol ICC (FCI) 10127820-2422LF	12.8 mm	0.504 in	All	Square	Varies by Wire Gauge	Natural	2.03 µm	80 µin	600 VAC	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire		Brass	2	Solder	Through Hole	Locking Ramp	Male Pin	3.5 mm	0.138 in	4.2 mm	0.165 in	Header	4.2 mm	0.165 in	UL94 V-0	24	-40 °C	105 ░C	Shrouded - 4 Wall	Tin
Amphenol ICC (FCI) 10127820-0222LLF	12.8 mm	0.504 in	All	Square	Varies by Wire Gauge	Natural	2.03 µm	80 µin	600 VAC	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Glow Wire Compliant	Brass	2	Solder	Through Hole	Locking Ramp	Male Pin	3.5 mm	0.138 in			Header	4.2 mm	0.165 in	UL94 V-0	2	-40 °C	105 ░C	Shrouded - 4 Wall	Tin
Amphenol ICC (FCI) 10127820-1822CLF	12.8 mm	0.504 in	All	Square	Varies by Wire Gauge	Natural	2.03 µm	80 µin	600 VAC	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	Pick and Place	Brass	2	Solder	Through Hole	Locking Ramp	Male Pin	3.5 mm	0.138 in	4.2 mm	0.165 in	Header	4.2 mm	0.165 in	UL94 V-0	18	-40 °C	105 ░C	Shrouded - 4 Wall	Tin
Amphenol ICC (FCI) 10127820-1622LPLF	12.8 mm	0.504 in	All	Square	Varies by Wire Gauge	Natural	2.03 µm	80 µin	600 VAC	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	Board Lock Glow Wire Compliant	Brass	2	Solder	Through Hole	Locking Ramp	Male Pin	3.5 mm	0.138 in	4.2 mm	0.165 in	Header	4.2 mm	0.165 in	UL94 V-0		-40 °C	105 ░C	Shrouded - 4 Wall	Tin			16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.52
		10	$ 1.16
		80	$ 0.91
		440	$ 0.76
		945	$ 0.70
		4900	$ 0.64
