10127820-0222LF
ActiveAmphenol ICC (FCI)

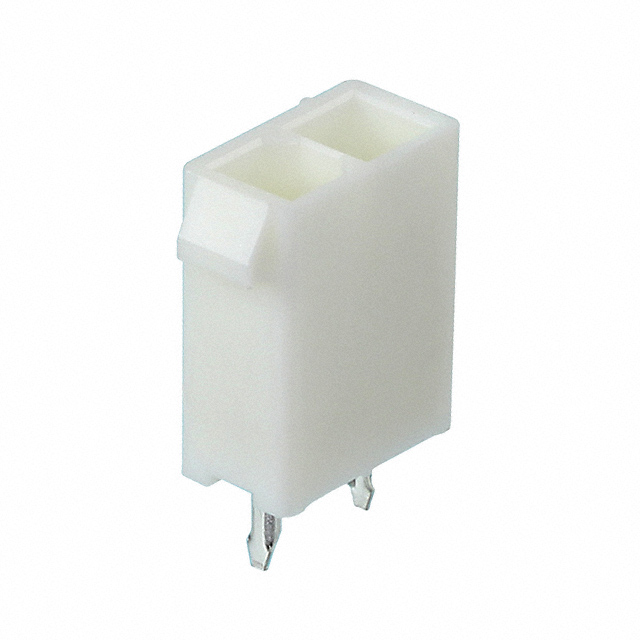

CONN HEADER VERT 2POS
Deep-Dive with AI
Search across all available documentation for this part.
10127820-0222LF
ActiveAmphenol ICC (FCI)
CONN HEADER VERT 2POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10127820-0222LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.03 µm |
| Contact Finish Thickness - Mating | 80 µin |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 12.8 mm |
| Insulation Height | 0.504 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Row Spacing - Mating | 4.2 mm |
| Row Spacing - Mating | 0.165 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 VAC |
10127820 Series
| Part | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Shape | Current Rating (Amps) | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Insulation Material | Style | Features | Contact Material | Number of Rows | Termination | Mounting Type | Fastening Type | Contact Type | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Contact Finish - Post | Contact Finish - Mating | Contact Finish Thickness - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 12.8 mm | 0.504 in | All | Square | Varies by Wire Gauge | Natural | 2.03 µm | 80 µin | 600 VAC | Polyamide (PA66) Nylon 6/6 | Board to Cable/Wire | Board Lock Glow Wire Compliant | Brass | 2 | Solder | Through Hole | Locking Ramp | Male Pin | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Header | 4.2 mm | 0.165 in | UL94 V-0 | 8 | -40 °C | 105 ░C | Shrouded - 4 Wall | ||||
Amphenol ICC (FCI) | 12.8 mm | 0.504 in | All | Square | Varies by Wire Gauge | Natural | 2.03 µm | 80 µin | 600 VAC | Polyamide (PA66) Nylon 6/6 | Board to Cable/Wire | Brass | 2 | Solder | Through Hole | Locking Ramp | Male Pin | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Header | 4.2 mm | 0.165 in | UL94 V-0 | 20 | -40 °C | 105 ░C | Shrouded - 4 Wall | Tin | ||||
Amphenol ICC (FCI) | 12.8 mm | 0.504 in | All | Square | Varies by Wire Gauge | Natural | 2.03 µm | 80 µin | 600 VAC | Polyamide (PA66) Nylon 6/6 | Board to Cable/Wire | Brass | 2 | Solder | Through Hole | Locking Ramp | Male Pin | 3.5 mm | 0.138 in | Header | 4.2 mm | 0.165 in | UL94 V-0 | 2 | -40 °C | 105 ░C | Shrouded - 4 Wall | Tin | ||||||
Amphenol ICC (FCI) | 12.8 mm | 0.504 in | All | Square | Varies by Wire Gauge | Natural | 2.03 µm | 80 µin | 600 VAC | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | Glow Wire Compliant | Brass | 2 | Solder | Through Hole | Locking Ramp | Male Pin | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Header | 4.2 mm | 0.165 in | UL94 V-0 | 6 | -40 °C | 105 ░C | Shrouded - 4 Wall | Tin | |||
Amphenol ICC (FCI) | 12.8 mm | 0.504 in | All | Square | Varies by Wire Gauge | Natural | 600 VAC | Polyamide (PA66) Nylon 6/6 | Board to Cable/Wire | Glow Wire Compliant | Brass | 2 | Solder | Through Hole | Locking Ramp | Male Pin | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Header | 4.2 mm | 0.165 in | UL94 V-0 | 14 | -40 °C | 105 ░C | Shrouded - 4 Wall | Gold | Flash | ||||
Amphenol ICC (FCI) | 12.8 mm | 0.504 in | All | Square | Varies by Wire Gauge | Natural | 600 VAC | Polyamide (PA66) Nylon 6/6 | Board to Cable/Wire | Glow Wire Compliant | Brass | 2 | Solder | Through Hole | Locking Ramp | Male Pin | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Header | 4.2 mm | 0.165 in | UL94 V-0 | 18 | -40 °C | 105 ░C | Shrouded - 4 Wall | Gold | Flash | ||||
Amphenol ICC (FCI) | 12.8 mm | 0.504 in | All | Square | Varies by Wire Gauge | Natural | 2.03 µm | 80 µin | 600 VAC | Polyamide (PA66) Nylon 6/6 | Board to Cable/Wire | Brass | 2 | Solder | Through Hole | Locking Ramp | Male Pin | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Header | 4.2 mm | 0.165 in | UL94 V-0 | 24 | -40 °C | 105 ░C | Shrouded - 4 Wall | Tin | ||||
Amphenol ICC (FCI) | 12.8 mm | 0.504 in | All | Square | Varies by Wire Gauge | Natural | 2.03 µm | 80 µin | 600 VAC | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | Glow Wire Compliant | Brass | 2 | Solder | Through Hole | Locking Ramp | Male Pin | 3.5 mm | 0.138 in | Header | 4.2 mm | 0.165 in | UL94 V-0 | 2 | -40 °C | 105 ░C | Shrouded - 4 Wall | Tin | |||||
Amphenol ICC (FCI) | 12.8 mm | 0.504 in | All | Square | Varies by Wire Gauge | Natural | 2.03 µm | 80 µin | 600 VAC | Polyamide (PA66) Nylon 6/6 | Board to Cable/Wire | Pick and Place | Brass | 2 | Solder | Through Hole | Locking Ramp | Male Pin | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Header | 4.2 mm | 0.165 in | UL94 V-0 | 18 | -40 °C | 105 ░C | Shrouded - 4 Wall | Tin | |||
Amphenol ICC (FCI) | 12.8 mm | 0.504 in | All | Square | Varies by Wire Gauge | Natural | 2.03 µm | 80 µin | 600 VAC | Liquid Crystal Polymer (LCP) | Board to Cable/Wire | Board Lock Glow Wire Compliant | Brass | 2 | Solder | Through Hole | Locking Ramp | Male Pin | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Header | 4.2 mm | 0.165 in | UL94 V-0 | -40 °C | 105 ░C | Shrouded - 4 Wall | Tin | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.15 | |
| 10 | $ 0.10 | |||
Description
General part information
10127820 Series
Connector Header Through Hole 2 position
Documents
Technical documentation and resources
