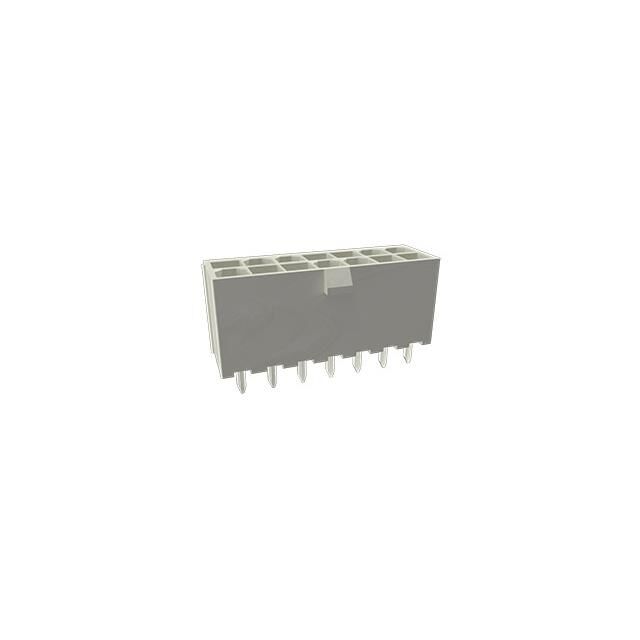

Specification	10127820-1421GLF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Glow Wire Compliant
Insulation Color	Natural
Insulation Height	0.504 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.165 in
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	600 V
Voltage Rating (Type)	DC

10127820 Series

...

Part	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating	Contact Shape	Connector Type	Pitch - Mating	Insulation Material	Contact Finish - Mating	Mounting Type	Shrouding	Number of Rows	Voltage Rating	Voltage Rating (Type)	Material Flammability Rating	Termination	Row Spacing - Mating	Features	Contact Type	Number of Positions	Insulation Height	Contact Length - Post	Style	Number of Positions Loaded	Insulation Color	Fastening Type	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Post	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 10127820-0822GPLF	-40 °C	105 °C	Varies by Wire Gauge	Square	Header	0.165 in	Nylon 6/6 Polyamide (PA66)	Tin	Through Hole	Shrouded - 4 Wall	2	600 V	DC	UL94 V-0	Solder	0.165 in	Board Lock Glow Wire Compliant	Male Pin	8	0.504 in	0.138 in	Board Cable/Wire	All	Natural	Locking Ramp	80 µin	Brass
Amphenol ICC (FCI) 10127820-2022PLF	-40 °C	105 °C	Varies by Wire Gauge	Square	Header	0.165 in	Nylon 6/6 Polyamide (PA66)	Tin	Through Hole	Shrouded - 4 Wall	2	600 V	DC	UL94 V-0	Solder	0.165 in	Board Lock	Male Pin	20	0.504 in	0.138 in	Board Cable/Wire	All	Natural	Locking Ramp	80 µin	Brass	Tin
Amphenol ICC (FCI) 10127820-2022GLF	-40 °C	105 °C	Varies by Wire Gauge	Square	Header	0.165 in	Nylon 6/6 Polyamide (PA66)	Tin	Through Hole	Shrouded - 4 Wall	2	600 V	DC	UL94 V-0	Solder	0.165 in	Glow Wire Compliant	Male Pin	20	0.504 in	0.138 in	Board Cable/Wire	All	Natural	Locking Ramp	80 µin	Brass	Tin
Amphenol ICC (FCI) 10127820-0222LF	-40 °C	105 °C	Varies by Wire Gauge	Square	Header		Nylon 6/6 Polyamide (PA66)	Tin	Through Hole	Shrouded - 4 Wall	2	600 V	DC	UL94 V-0	Solder	0.165 in		Male Pin	2	0.504 in	0.138 in	Board Cable/Wire	All	Natural	Locking Ramp	80 µin	Brass	Tin
Amphenol ICC (FCI) 10127820-0622LTLF	-40 °C	105 °C	Varies by Wire Gauge	Square	Header	0.165 in	Liquid Crystal Polymer (LCP)	Tin	Through Hole	Shrouded - 4 Wall	2	600 V	DC	UL94 V-0	Solder	0.165 in	Glow Wire Compliant	Male Pin	6	0.504 in	0.138 in	Board Cable/Wire	All	Natural	Locking Ramp	80 µin	Brass	Tin
Amphenol ICC (FCI) 10127820-1822LF	-40 °C	105 °C	Varies by Wire Gauge	Square	Header	0.165 in	Nylon 6/6 Polyamide (PA66)	Tin	Through Hole	Shrouded - 4 Wall	2	600 V	DC	UL94 V-0	Solder	0.165 in		Male Pin	18	0.504 in	0.138 in	Board Cable/Wire	All	Natural	Locking Ramp	80 µin	Brass	Tin
Amphenol ICC (FCI) 10127820-1421GLF	-40 °C	105 °C	Varies by Wire Gauge	Square	Header	0.165 in	Nylon 6/6 Polyamide (PA66)	Gold	Through Hole	Shrouded - 4 Wall	2	600 V	DC	UL94 V-0	Solder	0.165 in	Glow Wire Compliant	Male Pin	14	0.504 in	0.138 in	Board Cable/Wire	All	Natural	Locking Ramp		Brass		Flash
Amphenol ICC (FCI) 10127820-1821GLF	-40 °C	105 °C	Varies by Wire Gauge	Square	Header	0.165 in	Nylon 6/6 Polyamide (PA66)	Gold	Through Hole	Shrouded - 4 Wall	2	600 V	DC	UL94 V-0	Solder	0.165 in	Glow Wire Compliant	Male Pin	18	0.504 in	0.138 in	Board Cable/Wire	All	Natural	Locking Ramp		Brass		Flash
Amphenol ICC (FCI) 10127820-2422LF	-40 °C	105 °C	Varies by Wire Gauge	Square	Header	0.165 in	Nylon 6/6 Polyamide (PA66)	Tin	Through Hole	Shrouded - 4 Wall	2	600 V	DC	UL94 V-0	Solder	0.165 in		Male Pin	24 pos	0.504 in	0.138 in	Board Cable/Wire	All	Natural	Locking Ramp	80 µin	Brass	Tin
Amphenol ICC (FCI) 10127820-0222LLF	-40 °C	105 °C	Varies by Wire Gauge	Square	Header		Liquid Crystal Polymer (LCP)	Tin	Through Hole	Shrouded - 4 Wall	2	600 V	DC	UL94 V-0	Solder	0.165 in	Glow Wire Compliant	Male Pin	2	0.504 in	0.138 in	Board Cable/Wire	All	Natural	Locking Ramp	80 µin	Brass	Tin
