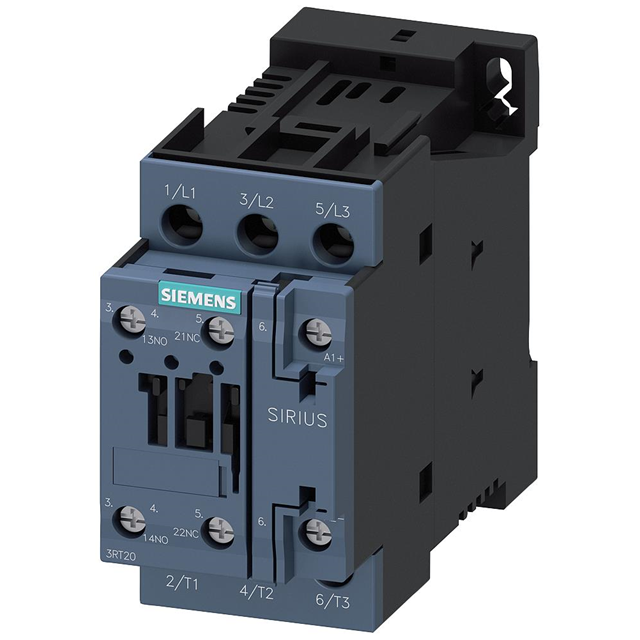

3RT20261BB400CC0

Active

Siemens

CONTACTOR S0 25A 24VDC 1NO/1NC S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SIRIUS Contactor Selection Guide.pdy +2

3RT20261BB400CC0

Active

Siemens

CONTACTOR S0 25A 24VDC 1NO/1NC S

Deep-Dive with AI

DocumentsDatasheet SIRIUS Contactor Selection Guide.pdy +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RT20261BB400CC0

Coil Power	5.9 W
Coil Voltage	24 VDC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	25 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	19.2 VDC
Operate Time	170 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Release Time	17.5 ms
Switching Voltage	690 VAC
Termination Style	Screw Terminal

3RT2026 Series

...

Part	Features	Operate Time	Mounting Type	Termination Style	Coil Voltage	Contact Rating (Current)	Contact Form	Switching Voltage	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Coil Power	Coil Voltage [Max]	Coil Voltage [Min]
Siemens 3RT20264AP60	Auxiliary Contacts	40 ms	Chassis Mount DIN Rail	Screw Terminal	240 VAC	25 A	3PST-NO (3 Form A)	690 VAC	16 ms	-25 °C	60 °C	192 VAC	79 VA
Siemens 3RT20261AN60	Auxiliary Contacts	40 ms	Chassis Mount DIN Rail	Screw Terminal	220 VAC/DC	25 A	3PST-NO (3 Form A)	690 VAC	16 ms	-25 °C	60 °C	187 VAC	79 VA
Siemens 3RT20261FB443MA0	Auxiliary Contacts	170 ms	Chassis Mount DIN Rail	Screw Terminal	24 VDC	25 A	3PST-NO (3 Form A)	690 VAC	17.5 ms	-25 °C	60 °C	19.2 VDC	5.9 W
Siemens 3RT20261AG60	Auxiliary Contacts	40 ms	Chassis Mount DIN Rail	Screw Terminal	110 VAC/DC	25 A	3PST-NO (3 Form A)	690 VAC	16 ms	-25 °C	60 °C	93.5 VAC	79 VA
Siemens 3RT20262NB30	Auxiliary Contacts	80 ms	Chassis Mount DIN Rail	Spring Terminal		25 A	3PST-NO (3 Form A)	690 VAC	50 ms	-25 °C	60 °C		5.9 W	28 VAC/DC	21 VAC/DC
Siemens 3RT20264VB40	Auxiliary Contacts	270 ms	Chassis Mount DIN Rail	Screw Terminal	24 VDC	25 A	3PST-NO (3 Form A)	690 VAC	21 ms	-25 °C	60 °C	16.8 VDC	4.5 W
Siemens 3RT20261BE40	Auxiliary Contacts	170 ms	Chassis Mount DIN Rail	Screw Terminal	60 VDC	25 A	3PST-NO (3 Form A)	690 VAC	17.5 ms	-25 °C	60 °C	48 VDC	5.9 W
Siemens 3RT20261DB40	Auxiliary Contacts	170 ms	Chassis Mount DIN Rail	Screw Terminal	24 VDC	25 A	3PST-NO (3 Form A)	690 VAC	17.5 ms	-25 °C	60 °C	19.2 VDC	5.9 W
Siemens 3RT20261BW44	Auxiliary Contacts	170 ms	Chassis Mount DIN Rail	Screw Terminal	48 VDC	25 A	3PST-NO (3 Form A)	690 VAC	17.5 ms	-25 °C	60 °C	38.4 VDC	5.9 W
Siemens 3RT20261BB400CC0	Auxiliary Contacts	170 ms	Chassis Mount DIN Rail	Screw Terminal	24 VDC	25 A	3PST-NO (3 Form A)	690 VAC	17.5 ms	-25 °C	60 °C	19.2 VDC	5.9 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 249.91
