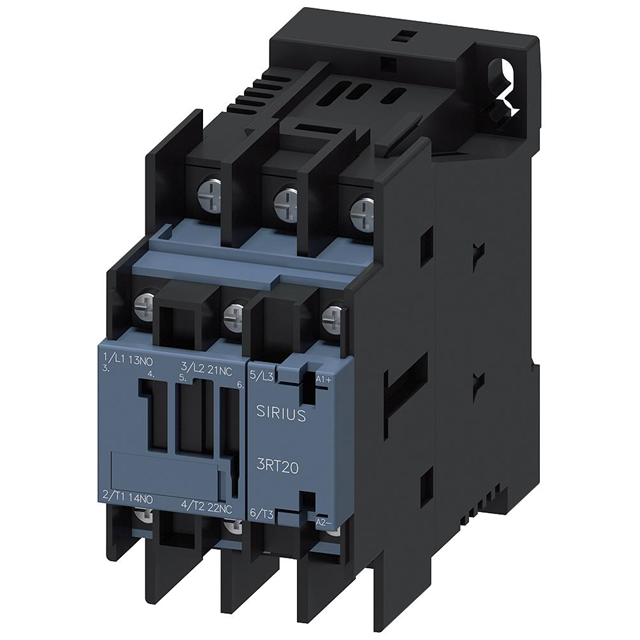

MFG_3RT20234BB40

3RT20264VB40

Active

COUPLNG RELAY S0 25A 24VDC 1NO/1

MFG_3RT20234BB40

3RT20264VB40

Active

COUPLNG RELAY S0 25A 24VDC 1NO/1

Description Specifications Series Pricing CAD Documents

Description

General part information

3RT2026 Series

COUPLNG RELAY S0 25A 24VDC 1NO/1

Technical Specifications

Parameters and characteristics for this part

Specification	3RT20264VB40

Coil Power	4.5 W
Coil Voltage	24 VDC
Contact Form	A, PST-NO, Form, 3
Contact Rating (Current)	25 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	16.8 VDC
Operate Time	270 ms
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Pin Count	3 pins
Release Time	21 ms
Switching Voltage AC (Max)	690 VAC
Termination Style	Screw Terminal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SIRIUS Contactor Fail Safe Brochure

SIRIUS Contactor Simply Switch Safely WhitePaper

SIRIUS Contactor Selection Guide.pdy

3RT20264VB40 | Datasheet

3RT2026 Series

...

Part	Release Time	Operate Time	Coil Power	Must Operate Voltage	Mounting Type	Features	Pin Count	Contact Form	Contact Rating (Current)	Coil Voltage	Switching Voltage AC (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Coil Voltage (Type)	Coil Voltage (Max)	Coil Voltage (Min)
Siemens 3RT20264AP60	16 ms	40 ms	79 VA	192 VDC	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	25 A	240 V	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261AN60	16 ms	40 ms	79 VA	187 VAC	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	25 A	220 V	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261FB443MA0	17.5 ms	170 ms	5.9 W	19.2 V	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	25 A	24 VDC	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261AG60	16 ms	40 ms	79 VA	93.5 VDC	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	25 A	110 V	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261AC24	16 ms	40 ms	79 VA	20.4 VDC	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	25 A	24 VDC	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20262NB30	50 ms	80 ms	5.9 W		Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	25 A		690 VAC	-25 °C	60 °C	Spring Terminal	AC DC	28 VAC/DC	21 VAC/DC
Siemens 3RT20264VB40	21 ms	270 ms	4.5 W	16.8 VDC	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	25 A	24 VDC	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261BE40	17.5 ms	170 ms	5.9 W	48 VDC	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	25 A	60 VDC	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261DB40	17.5 ms	170 ms	5.9 W	19.2 V	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	25 A	24 VDC	690 VAC	-25 °C	60 °C	Screw Terminal
Siemens 3RT20261BW44	17.5 ms	170 ms	5.9 W	38.4 V	Chassis Mount DIN Rail	Auxiliary Contacts	3 pins	3 A Form PST-NO	25 A	48 V	690 VAC	-25 °C	60 °C	Screw Terminal
